MOWER DECK
7-27LX Lawn Tractor Service Manual
7
4. Install the large idler extension spring into the lower
idler bracket (Fig. 644).

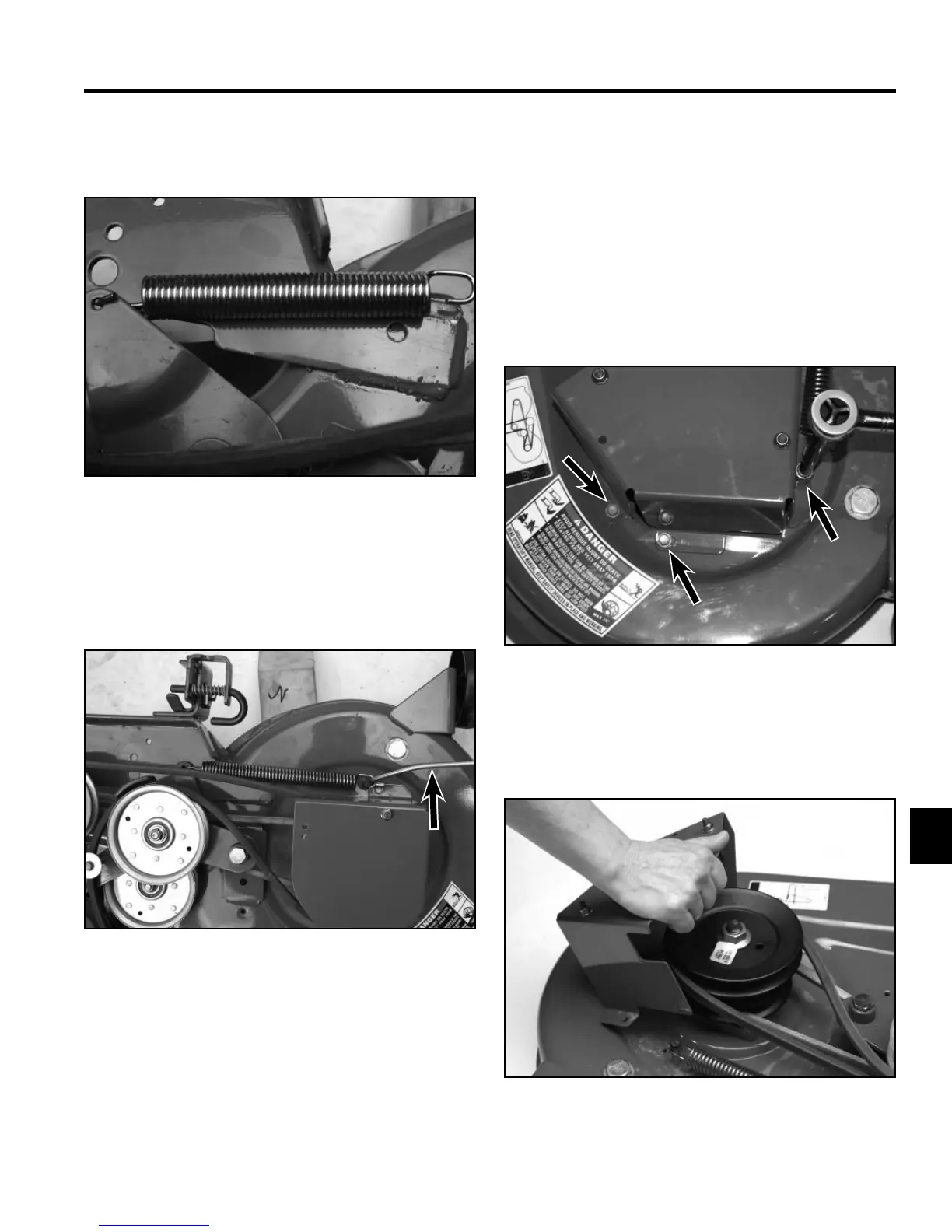

Fig 644 PICT-7913
Removal
5. Install the other end of the large idler extension
spring to the spring post on the mower deck (Fig.
645).
Fig 645 PICT-7898
6. Lower the back of the mower deck to the fl oor.
7. Install the mower deck to the tractor. Refer to “46”
Mower Deck Installation” on page 7-72.
46” Mower Deck - Lower Mower Deck
Belt Replacement
A. Spring removal tool (Toro P/N 92-5771)
A
A
1. Remove the mower deck from the tractor. Refer to
“46” Mower Deck Removal” on page 7-69.
2. Remove the 3 self-tapping screws securing the left
mower deck belt cover to the mower deck (Fig. 646).
Fig 646 PICT-7835
3. Remove the mower deck belt cover from the mower
deck (Fig. 647).
Fig 647 PICT-7839
