CHASSIS
3-30 LX Lawn Tractor Service Manual
3

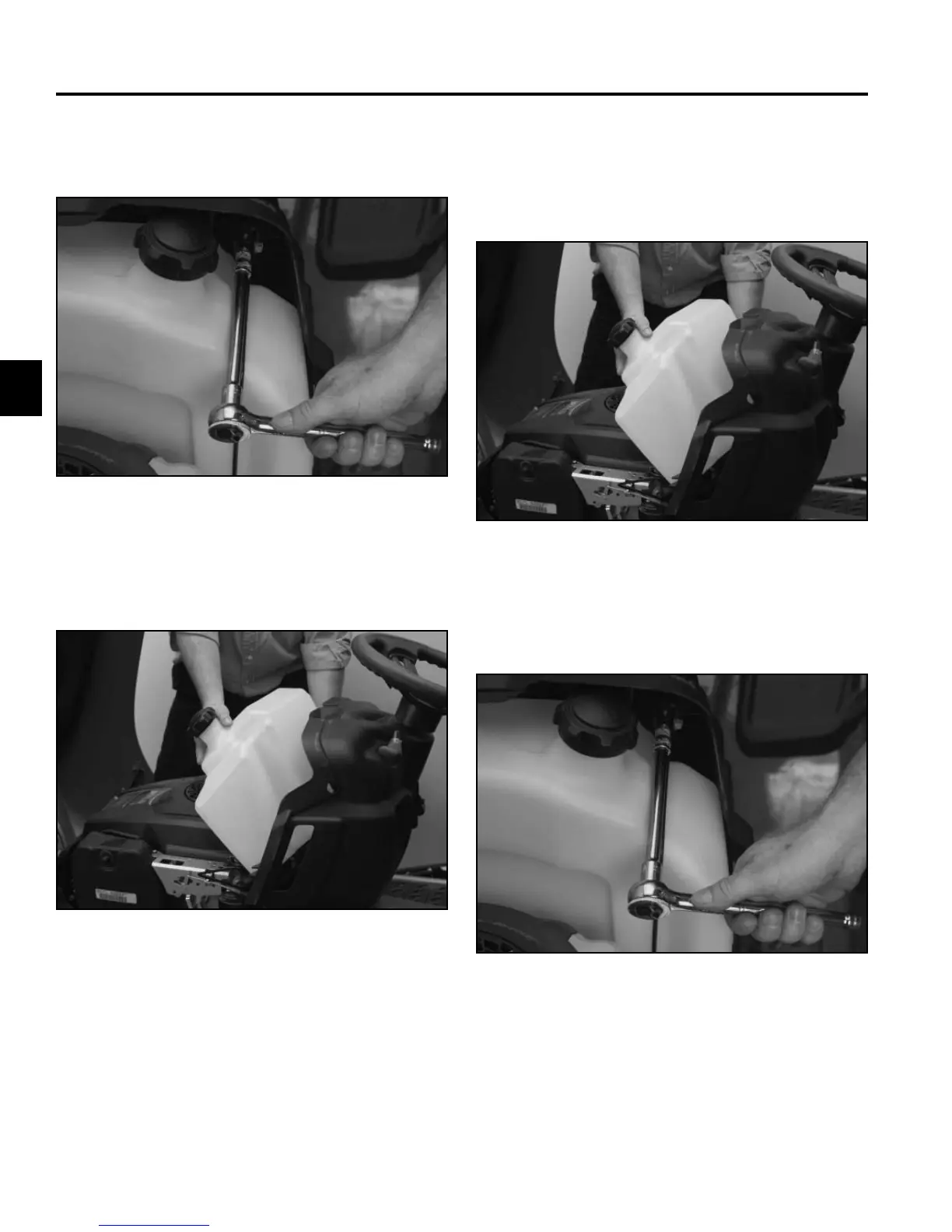

Fig 116 PICT-7100a
Fig 118 PICT-7099a
4. Remove the fuel tank from the engine compartment
(Fig. 116).
2. Position the fuel tank support rods and install screws
to secure the fuel tank (Fig. 118).
Fig 117 PICT-7100a
Fig 115 PICT-7099a
1. Position the fuel tank into the engine compartment
(Fig. 117).
3. Remove the two screws securing the fuel tank
support rods to the dash supports (Fig. 115).
Installation
