ENGINE
4-1LX Lawn Tractor Service Manual
4
1. Remove the mower deck: 42” deck on page 7-64;
46” deck on page 7-69; 50” deck on page 7-74.
2. Disconnect the negative battery cable and then the
positive battery cable.
3. Remove the battery hold down strap (Fig. 385).
Engine Replacement
Removal

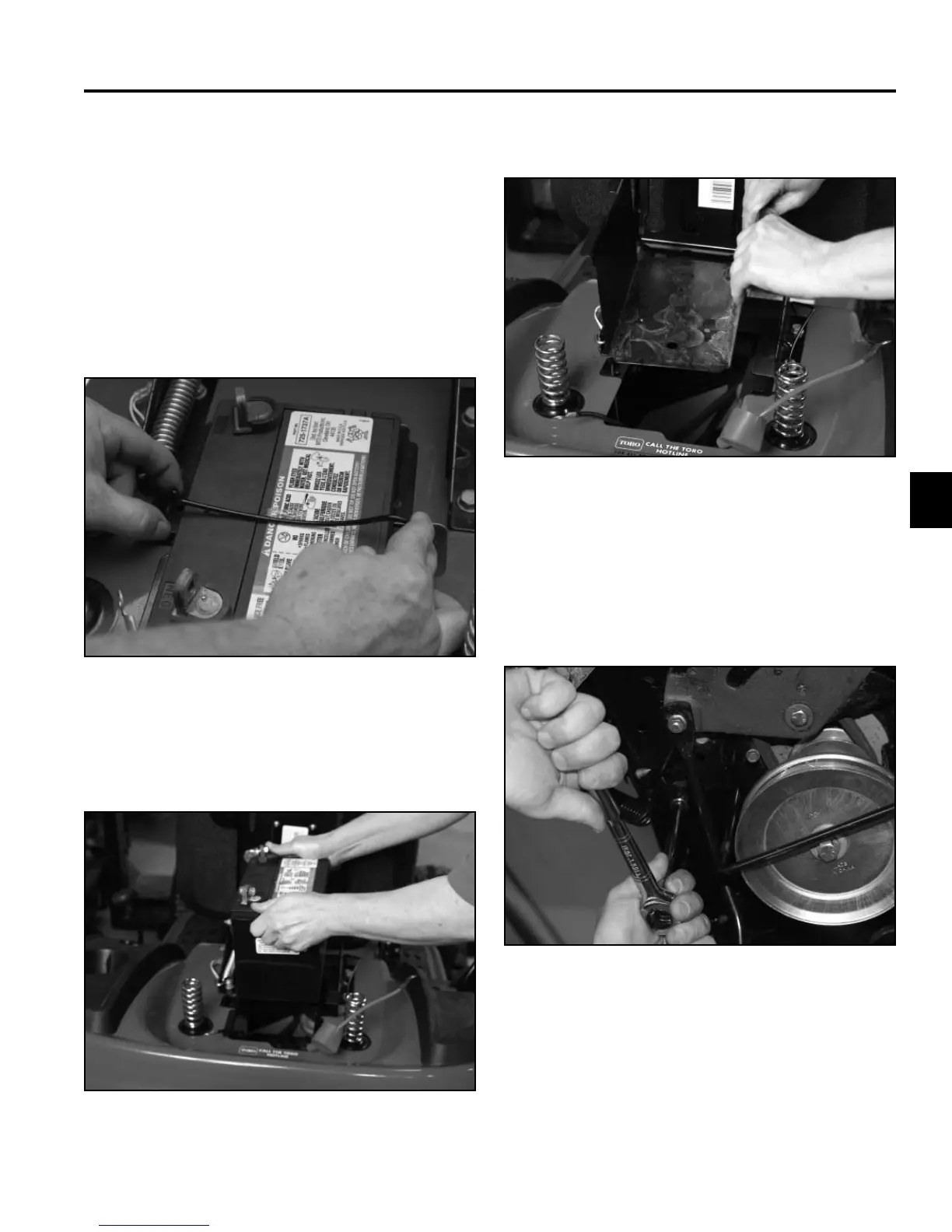

Fig 385 PICT-7109a
4. Remove the battery from battery compartment (Fig.
386).
Fig 386 PICT-7276
Fig 388 PICT-7347a
6. Raise the machine so the underside of the frame
can be accessed.
7. At the front of the tractor, remove the bolt securing
the belt keeper rod to the chassis (Fig. 388).
Fig 387 PICT-7277
5. Remove the battery tray (Fig. 387).
