3-81LX Lawn Tractor Service Manual
3

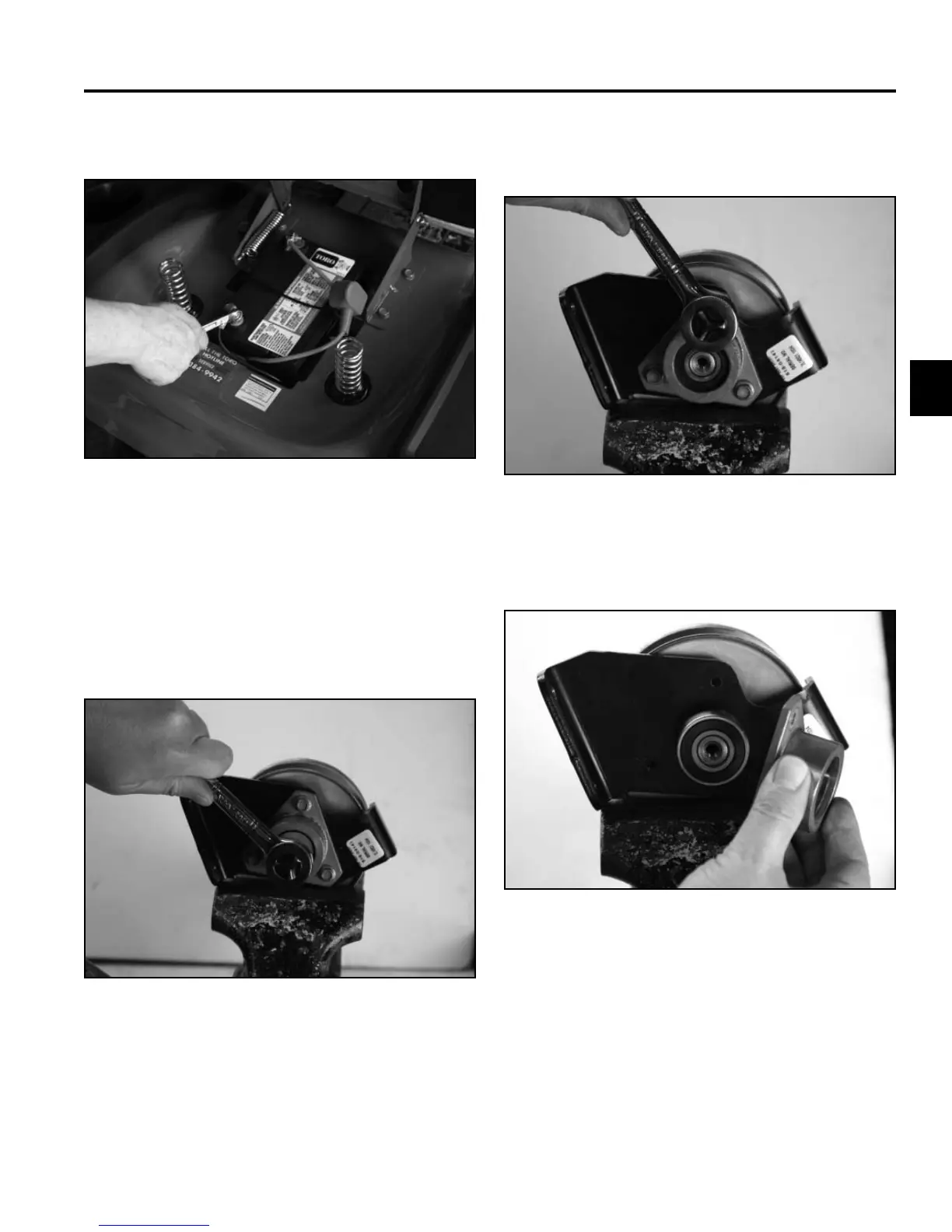

Fig 317 PICT-7342
2. Remove the 3 bolts securing the bearing cup to the
pulley bracket (Fig. 317).
Fig 318 PICT-7343
Fig 316 PICT-7340
3. Remove the bearing cup (Fig. 318).
1. Remove the center bolt and washer securing the
bearings to the pulley shaft (Fig. 316).
Variable Speed Pulley Service
Disassembly
Fig 315 PICT-7494
8. Connect the negative battery cable (Fig. 315).
