HYDROSTATIC DRIVE SYSTEM
6-7LX Lawn Tractor Service Manual
6
Installation

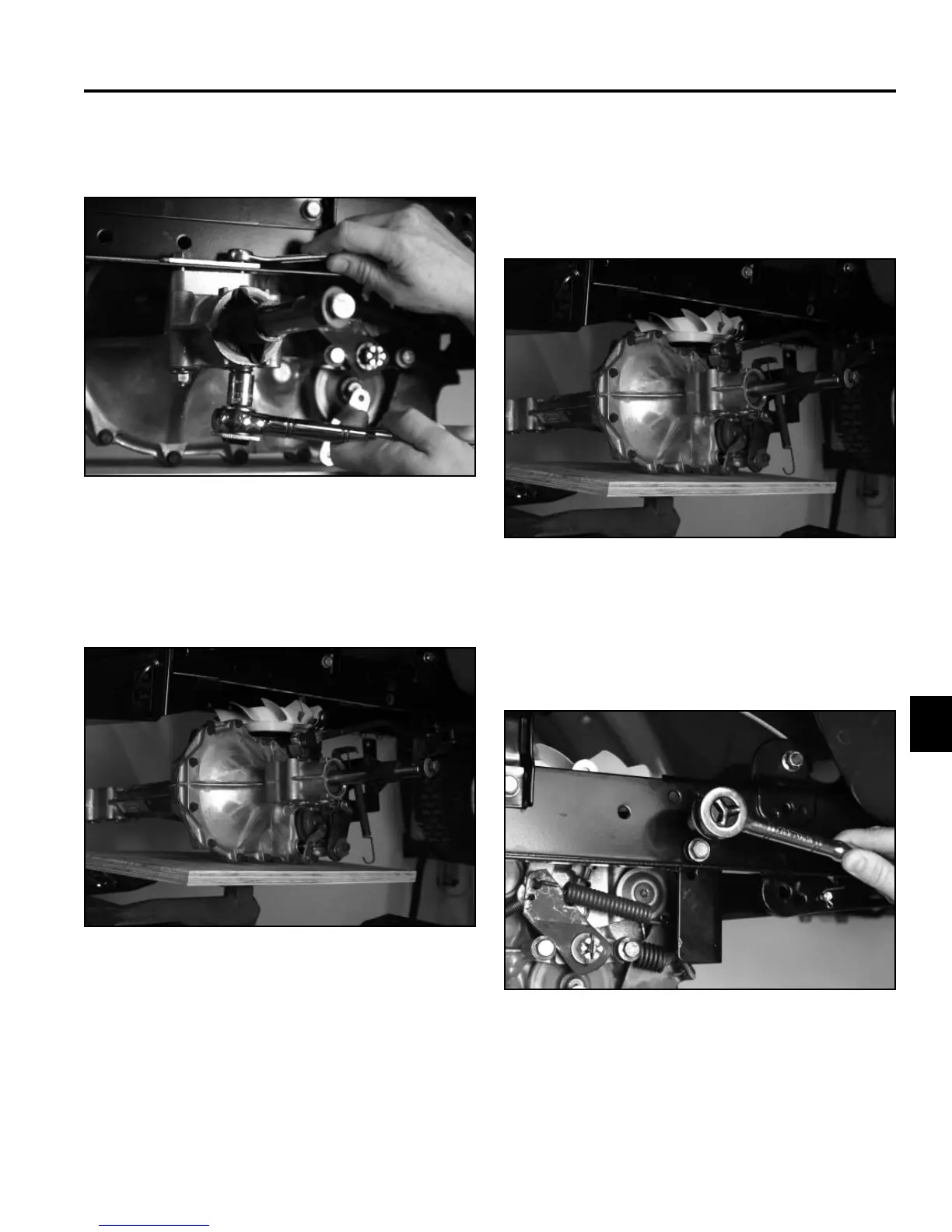

29. Remove 4 nuts from the 4 bolts securing the trans-
mission to the frame (Fig. 510).
1. As required, install parts on the transaxle to place
it in “as removed” condition. Raise the hydro trans-
mission into position (Fig. 512).
Fig 510 PICT-7560
Fig 512 PICT-7563
2. Loosely install 4 self tapping bolts (2 on each side)
to secure the transmission support bracket to the
frame (Fig. 513).
30. Remove the 4 bolts, mounting bolts and spacers and
carefully lower the transmission. Remove it from the
frame (Fig. 511).
Fig 513 PICT-7558
Fig 511 PICT-7563
