MOWER DECK
7-56 LX Lawn Tractor Service Manual
7
25. Secure the spindle shaft and install a nut to secure
the pulleys to the mower deck spindle (Fig. 758).

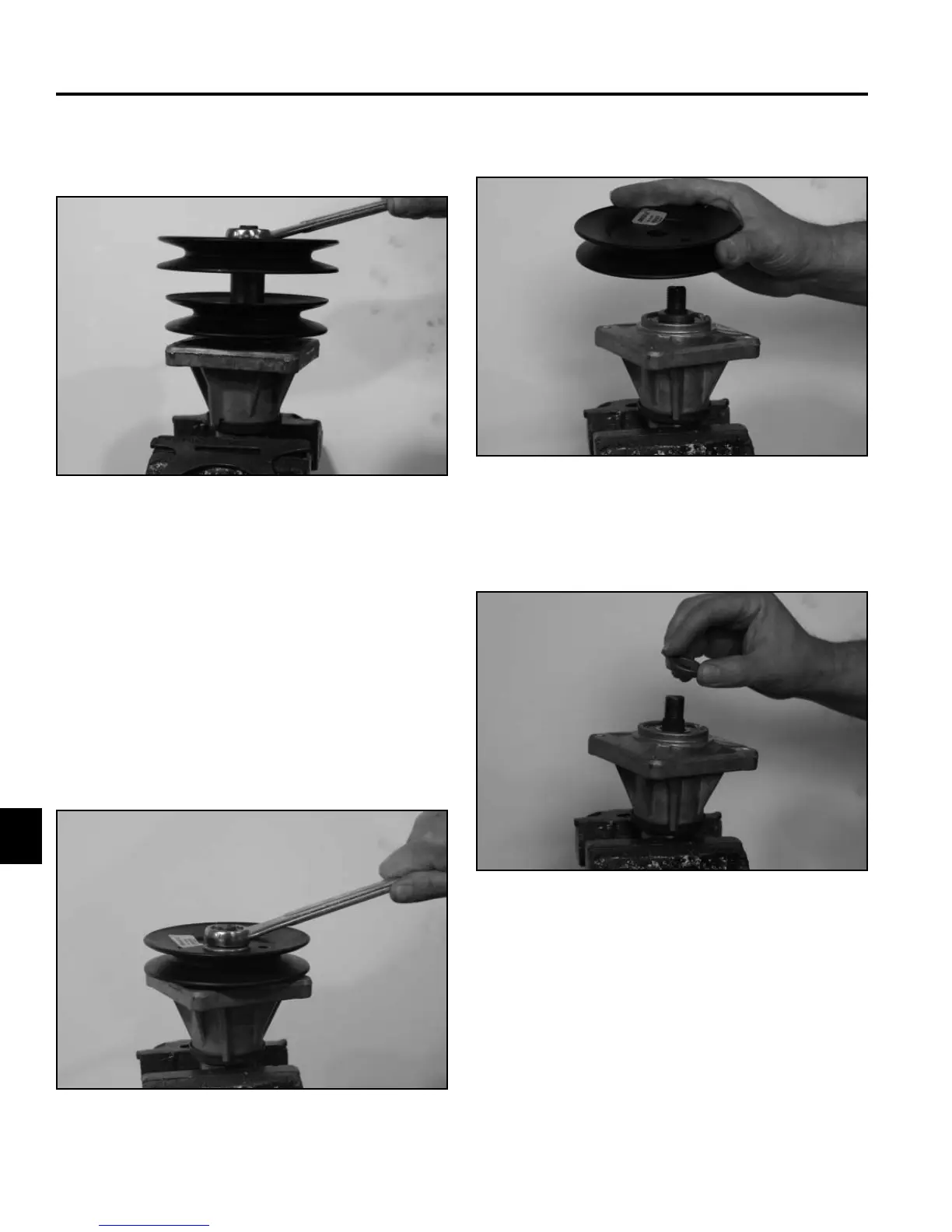

Fig 758 PICT-7991
46” Mower Deck - Single Pulley
Spindle Service
1. Secure the mower deck spindle into a vise.
2. Secure the spindle shaft and remove the nut secur-
ing the pulley to the mower deck spindle (Fig. 759).
26. Remove the mower deck spindle from the vise.
Fig 759 PICT-8012a
4. Remove the spacer (Fig. 761).
Fig 761 PICT-8015
3. Remove the pulley (Fig. 760).
Fig 760 PICT-8014
