MOWER DECK
7-16 LX Lawn Tractor Service Manual
7
8. Remove the shoulder bolt between the brake
bracket and the right hand idler bracket (Fig. 601).

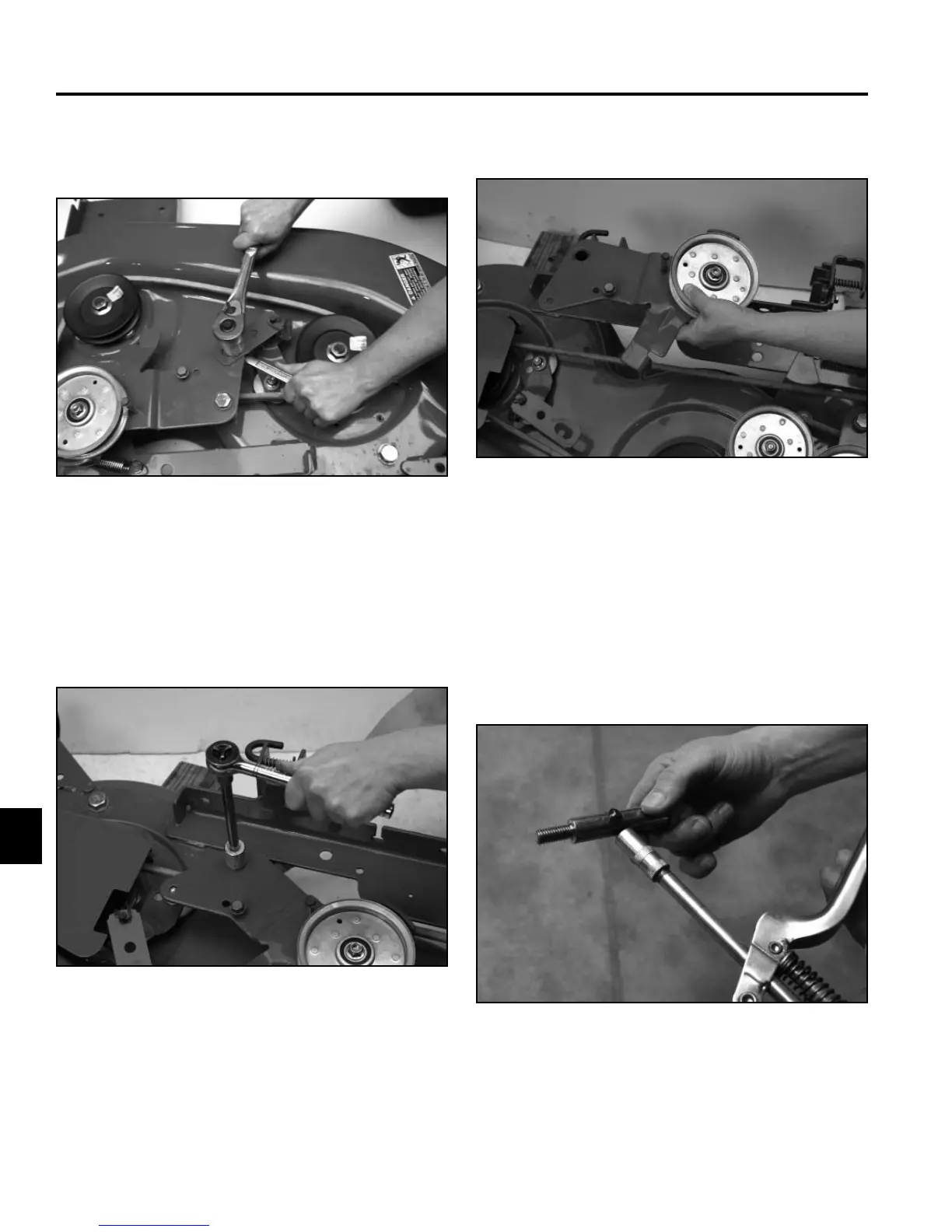

Fig 601 PICT-7858
9. Place two 4 x 4 wooden blocks, or equivalent, to
raise and support the rear of the mower deck.
10. Remove the shoulder bolt and nut retaining the right
hand idler bracket to the mower deck (Fig. 602).
1. Apply a small quantity of No. 2 multi-purpose lithium
grease, around the shoulder bolt (Fig. 604).
Fig 602 PICT-7886
Fig 604 PICT-7869
11. Remove the right hand idler bracket (Fig. 603).
Fig 603 PICT-7885
46” Mower Deck - RH Idler Bracket
Assembly
Installation
