GEAR DRIVE SYSTEM
5-1LX Lawn Tractor Service Manual
5

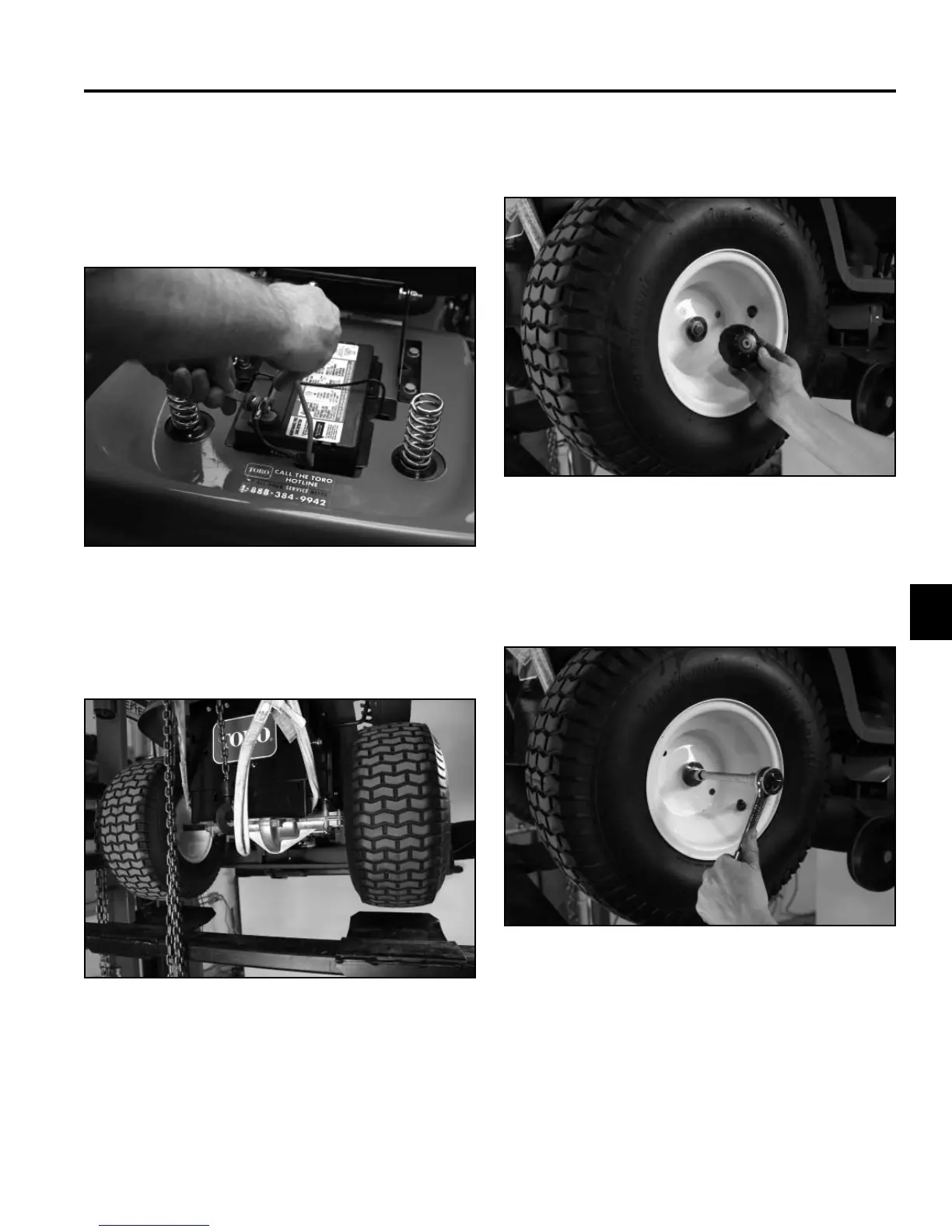

1. Remove the negative battery cable (Fig. 432).
CVT Transmission Replacement
Removal
Fig 432 PICT-7107
2. Using a hoist or hydraulic fl oor jack, raise the rear of
the tractor off the ground (Fig. 433).
Fig 433 PICT-7219
Fig 435 PICT-7221
4. Loosen and remove the bolt, washer, and hub
cap washer located on the right and left rear tire
assemblies (Fig. 435).
Fig 434 PICT-7220
3. Remove both rear hub caps from the rear wheel
assemblies (Fig. 434).
