MOWER DECK
7-1LX Lawn Tractor Service Manual
7
1. Remove the mower deck. Refer to “42” Mower Deck
Removal” on page 7-64.
2. Remove the spring from the idler and brake bracket
assemblies (Fig. 541).
42” Mower Deck - Brake Idler
Assembly Replacement
Removal

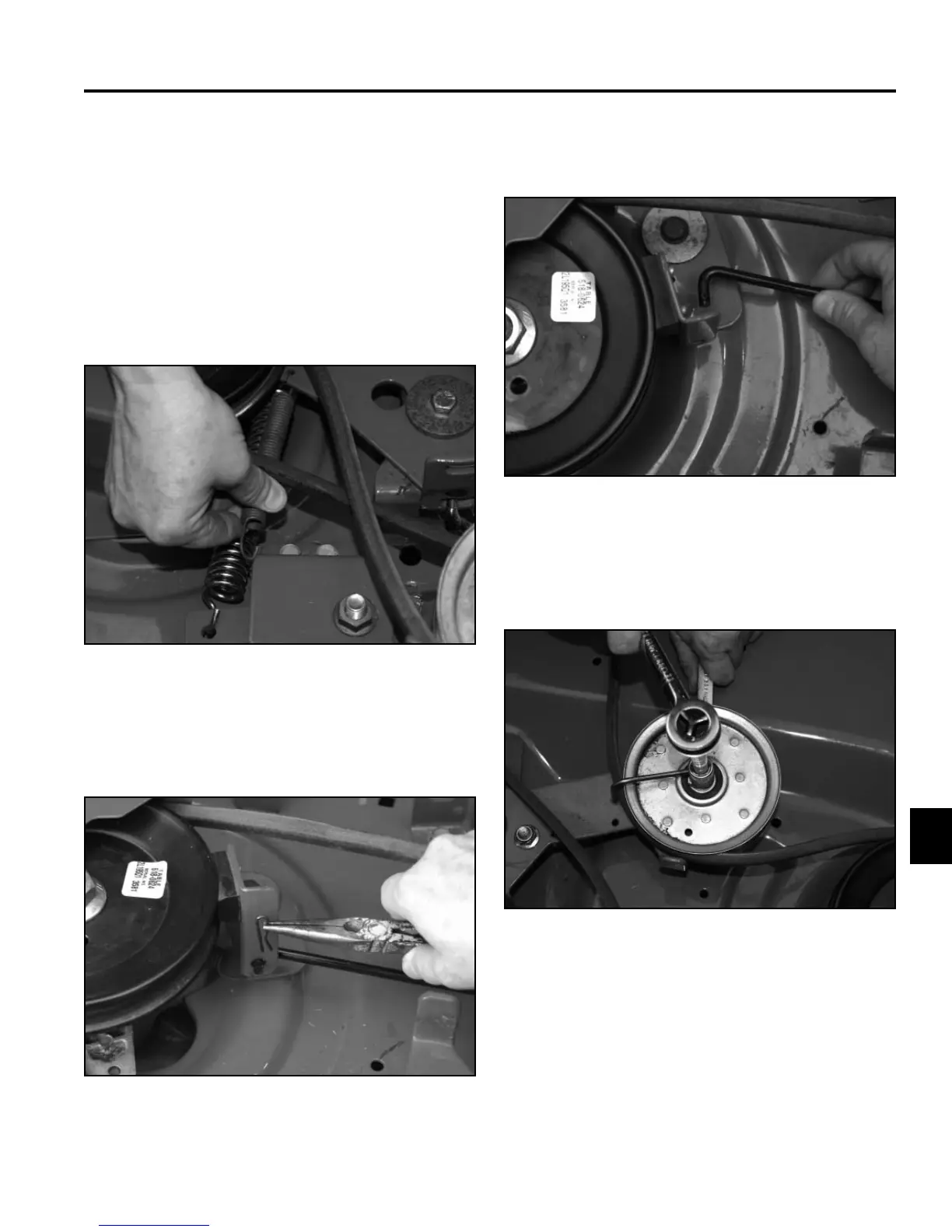

Fig 541 PICT-7759
3. Remove the hairpin cotter from the brake rod (Fig.
542).
Fig 542 PICT-7784
Fig 544 PICT-7765
5. Remove the bolt, washer, nut and belt keeper rod
from the front idler (Fig. 544).
Fig 543 PICT-7786
4. Remove the brake rod from the brake assembly
bracket (Fig. 543).
