CHASSIS
3-24 LX Lawn Tractor Service Manual
3

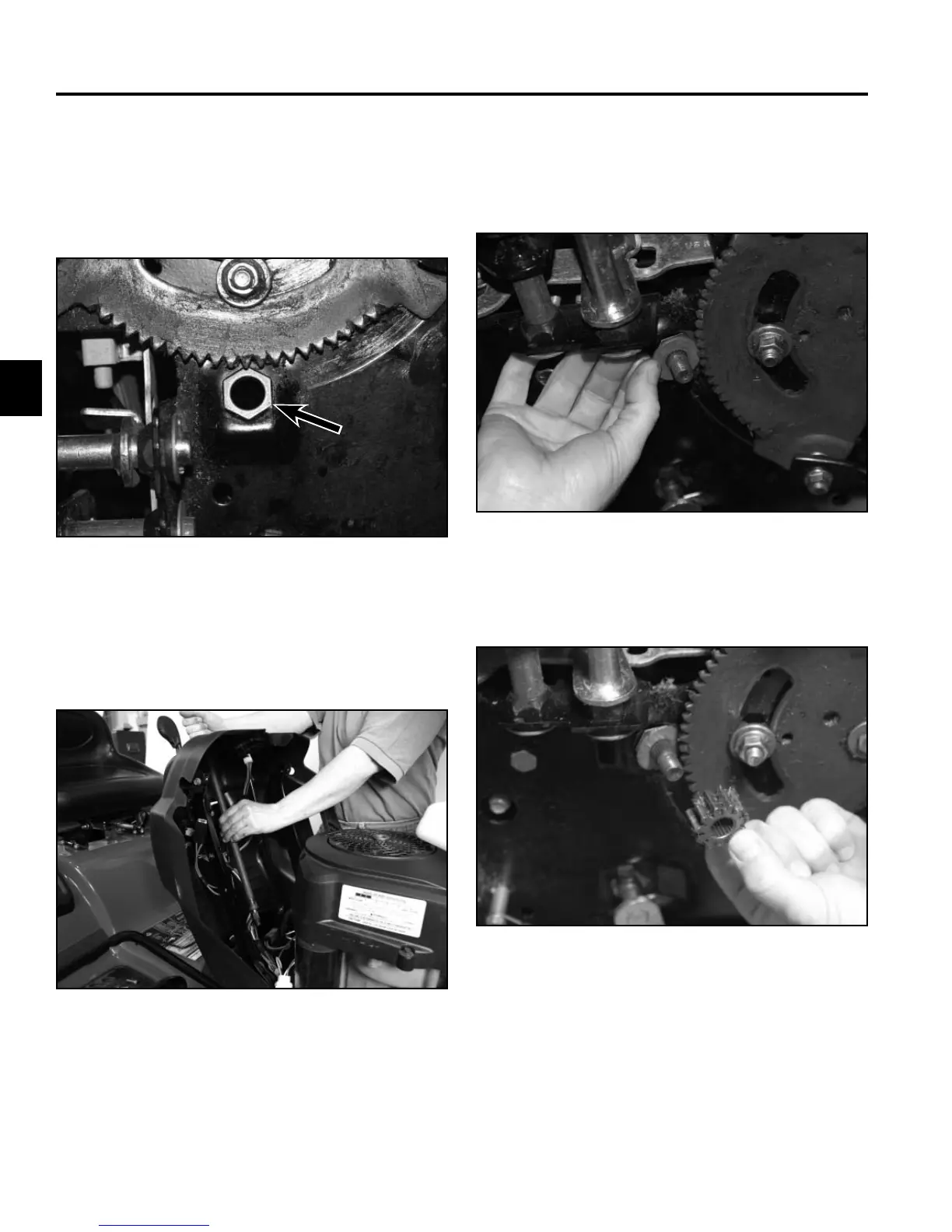

Fig 093 PICT-7668a
Fig 095 PICT-7661a
1. Install the hex fl ange bushing into the steering
support bracket ensuring the hex is seated in the
bracket (Fig. 093).
3. Raise the tractor.
4. Push up on the steering shaft to install a washer
onto the steering shaft (Fig. 095).
Fig 094 PICT-7663
2. Slide the steering shaft up into the tower from below,
insert the lower end of the steering shaft into the hex
fl ange bushing (Fig. 094).
Installation
Fig 096 PICT-7659a
5. Slide the pinion onto the steering shaft (Fig. 096).
