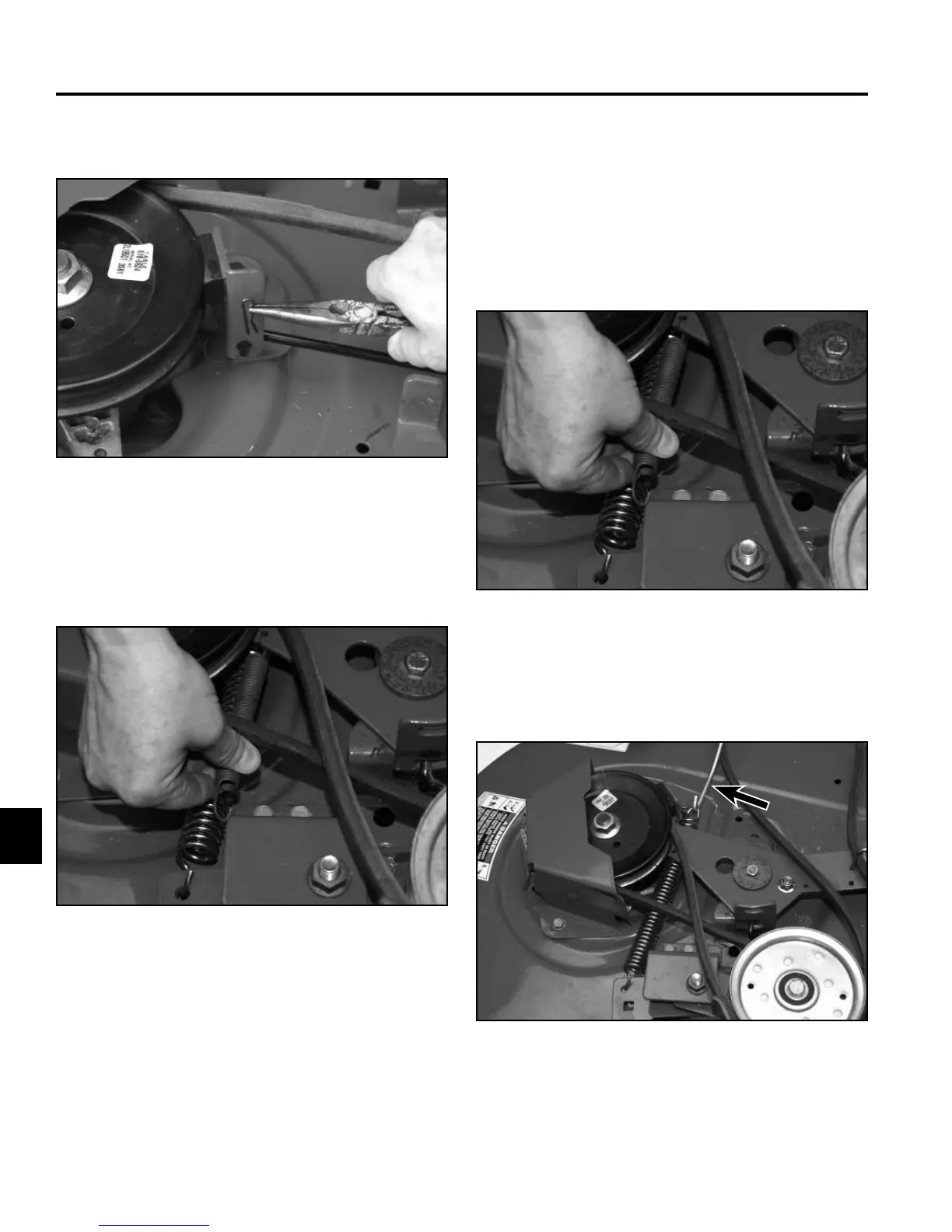

42” Mower Deck - Idler Assembly
Replacement
Removal
13. Install the spring into the idler and brake bracket
assemblies (Fig. 562).
2. Remove the idler bracket spring from the stud on the
mower deck (Fig. 564).
A. Spring removal tool (Toro P/N 92-5771)
Fig 562 PICT-7759
Fig 564 PICT-7795
1. Remove the spring from the idler and brake bracket
assemblies (Fig. 563).
Fig 563 PICT-7759
12. Install a hairpin cotter into the brake rod (Fig. 561).
Fig 561 PICT-7784
A
A
