CHASSIS
3-64 LX Lawn Tractor Service Manual
3

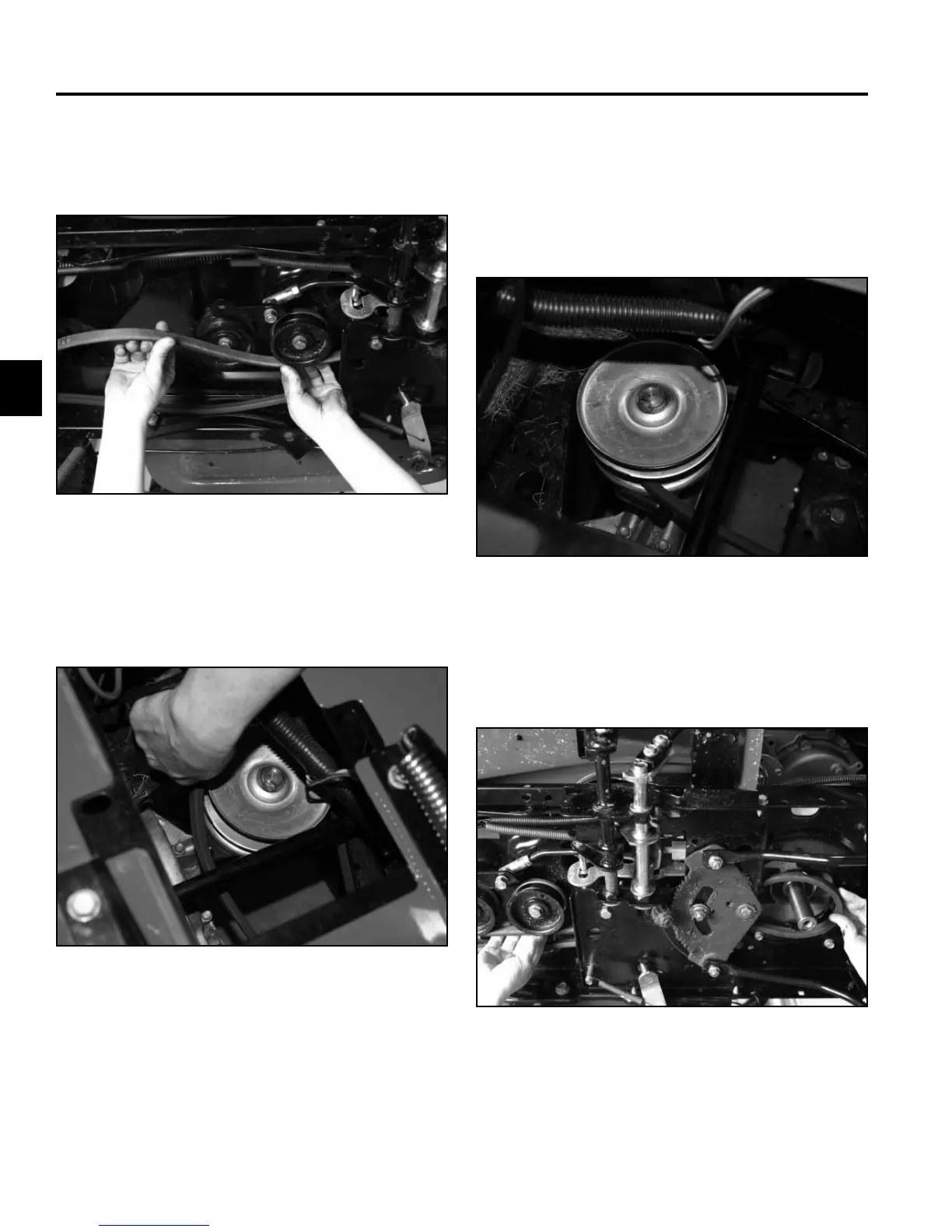

Fig 253 PICT-7314
2. Continue routing the belt forward above the steering
support bracket and then up around the crankshaft
(Fig. 253).
Fig 251 PICT-7311
13. Remove the lower transmission drive belt from the
variable speed pulley and pull it out of the machine
(Fig. 251).
Fig 252 PICT-7312
Fig 250 PICT-7309
1. Route the lower transmission drive belt into the
variable speed pulley by lifting up on the middle
section of the pulley and placing the belt into the
lower groove of the pulley (Fig. 252).
12. Remove the belt from around the crankshaft and
feed it back toward the rear of the machine, remov-
ing it from the double idler pulleys (Fig. 250).
Installation
