CHASSIS
3-62 LX Lawn Tractor Service Manual
3

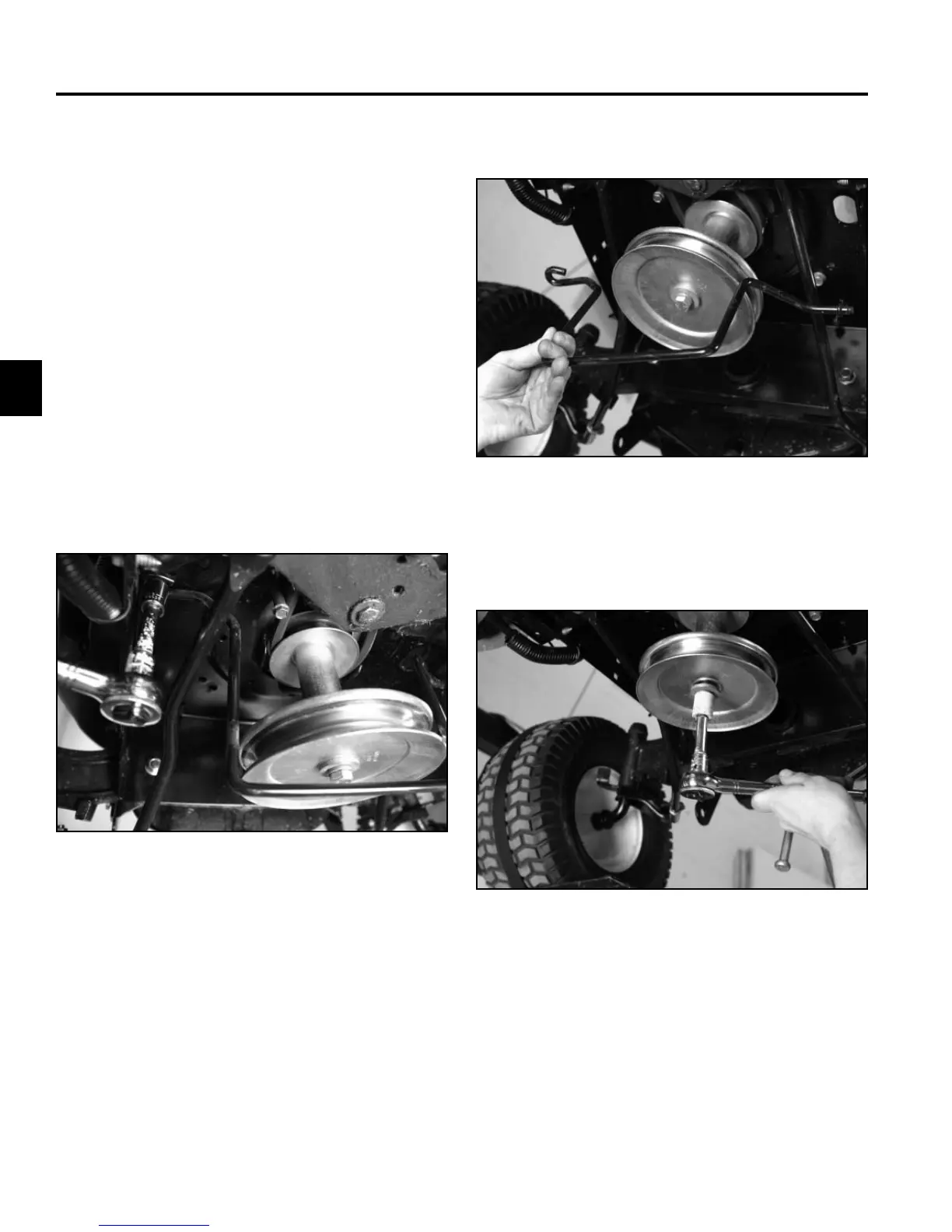

Fig 245 PICT-7302
7. Secure the engine pulley and remove the crankshaft
bolt and washer (Fig. 245).
Fig 244 PICT-7301
6. Remove the belt keeper rod (Fig. 244).
Fig 243 PICT-7296
1. Remove the mower deck: 42” deck on page 7-64;
46” deck on page 7-69; 50” deck on page 7-74.
2. Remove the upper transmission drive belt. See
“Upper Transmission Drive Belt Replacement -
Removal” on page 3-67.
3. Electric PTO models: Remove the electric PTO
clutch. Refer to “Electric PTO Clutch Replacement -
Removal” on page 3-27.
4. Raise the machine to access the belt.
5. Remove the bolt securing the belt keeper rod to the
chassis (Fig. 243).
Removal
Lower Transmission Drive Belt
Replacement - Gear Drive Models
