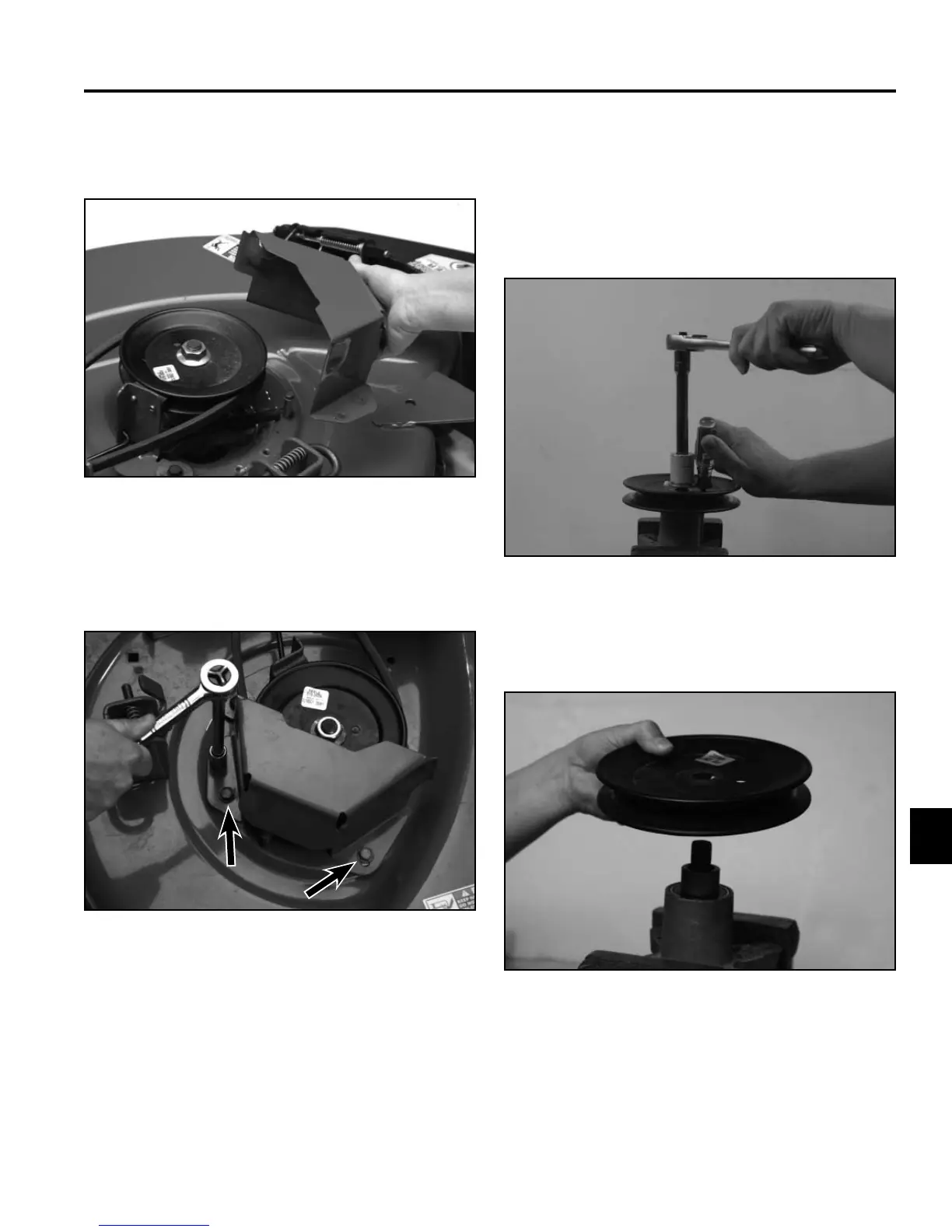

42” Mower Deck - Spindle Service
8. Position the belt cover onto the mower deck (Fig.
722).
1. Secure the mower deck spindle into a vise.
2. Secure the pulley and remove the nut securing the
pulley to the mower deck spindle (Fig. 724).
Fig 722 PICT-7712
Fig 724 PICT-7733a
3. Remove the pulley from the spindle shaft (Fig. 725).
10. Install the mower deck. Refer to “42” Mower Deck
Installation” on page 7-67.
9. Install 3 screws securing the belt cover to the mower
deck (Fig. 723).
Fig 725 PICT-7751
Fig 723 PICT-7711
