MOWER DECK
7-34 LX Lawn Tractor Service Manual
7
46” Mower Deck - Upper Mower Deck
Belt Replacement

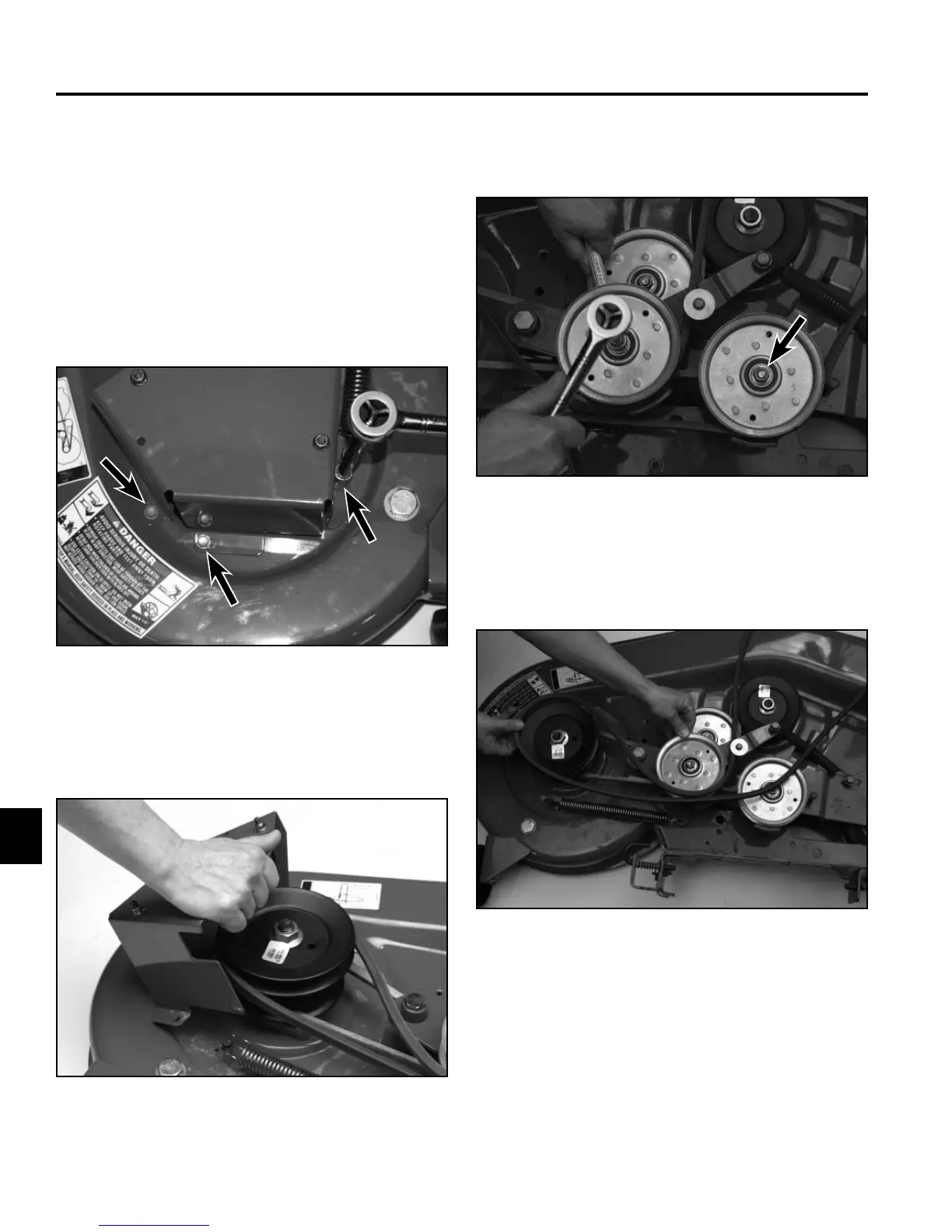

1. Remove the mower Deck from the tractor. Refer to
“46” Mower Deck Removal” on page 7-69.
2. Remove the 3 self-tapping screws securing the left
mower deck belt cover to the mower deck (Fig. 672).
Fig 672 PICT-7835
3. Remove the mower deck belt cover from the mower
deck (Fig. 673).
Fig 673 PICT-7839
Removal
4. Loosen the nuts on the 2 upper idler pulley bolts
(Fig. 674).
Fig 674 PICT-7840a
5. Tilt both idler pulleys and remove the upper mower
deck belt from the mower deck (Fig. 675).
Fig 675 PICT-7842
