HYDROSTATIC DRIVE SYSTEM
6-1LX Lawn Tractor Service Manual
6
1. Remove the mower deck. Refer to “46” Mower Deck
Removal” on page 7-69.

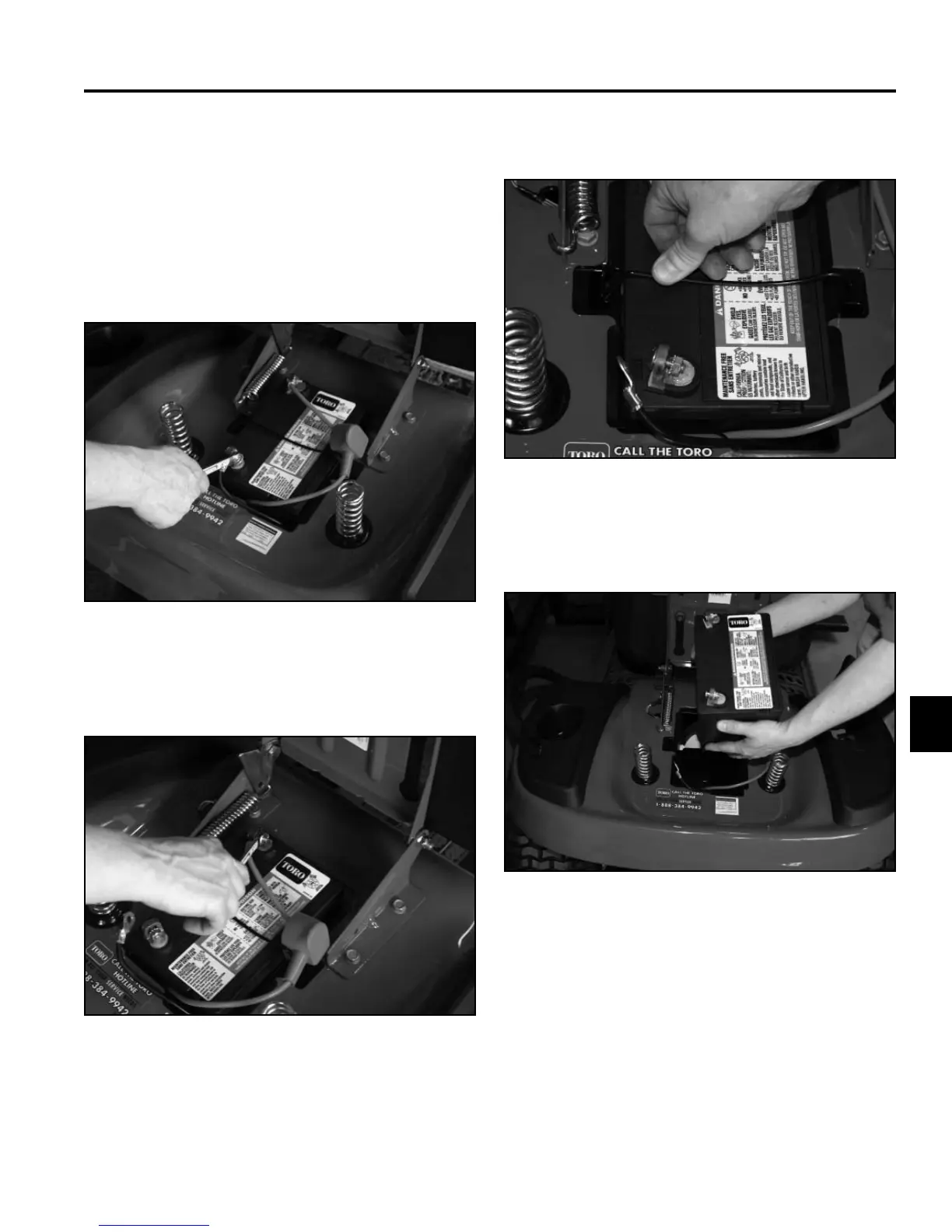

2. Disconnect the negative battery cable (Fig. 486).
Hydro Transmission Replacement
Removal
Fig 486 PICT-7494
3. Disconnect the positive battery cable (Fig. 487).
Fig 487 PICT-7495
Fig 489 PICT-7499
5. Lift the battery out of the battery tray (Fig. 489).
Fig 488 PICT-7497
4. Remove the battery hold down strap (Fig. 488).
