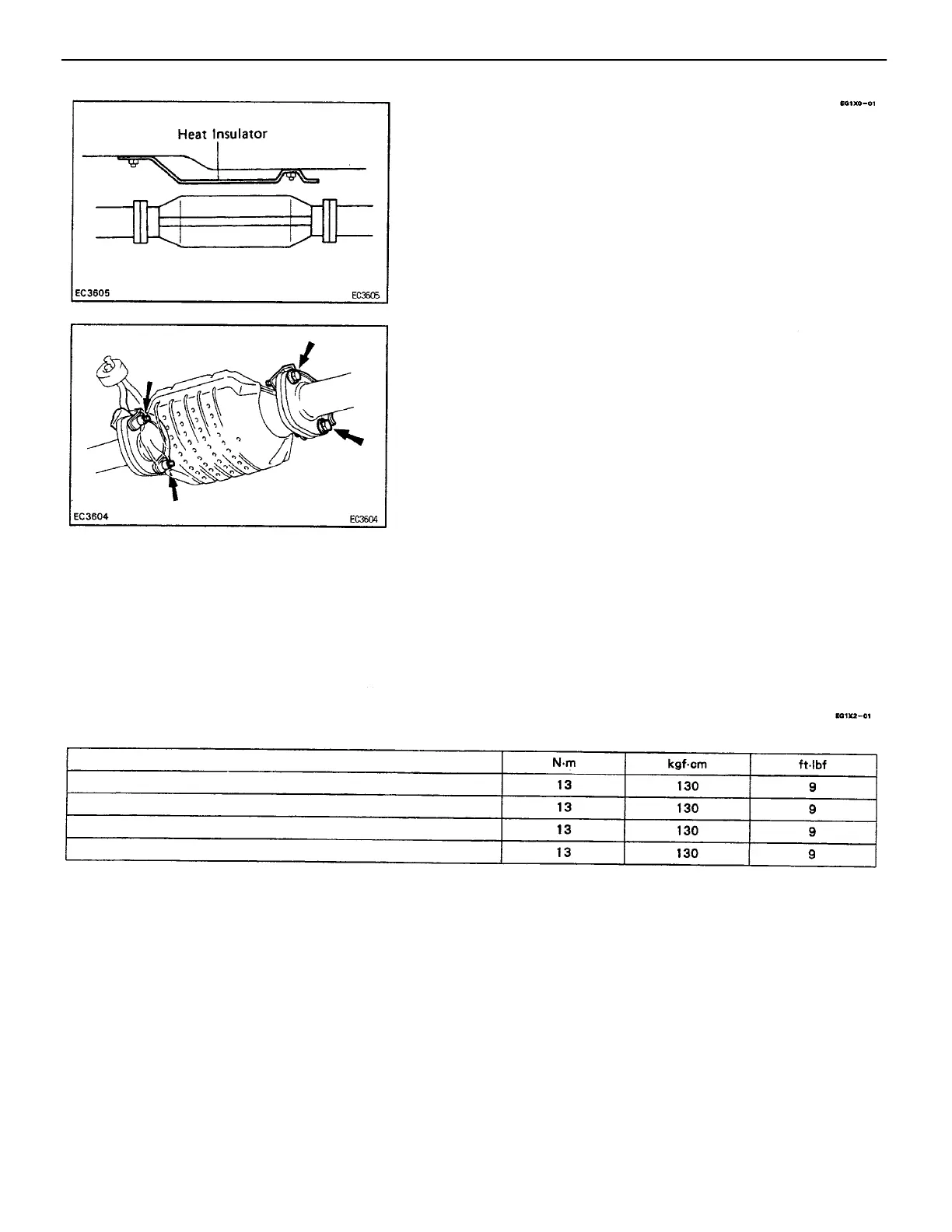

CATALYTIC CONVERTER REPLACEMENT
1. REMOVE CONVERTER
(a) Jack up the vehicle.
(b) Check that the converter is cool.
(c) Remove the bolts at the front and rear of the con–
verter.
(d) Remove the converter and gaskets.
2. INSTALL CONVERTER
(a) Place new gaskets on the converter front and rear
pipes, and connect the converter to the exhaust pipes.
(b) Torque the bolts.
Torque: Catalytic converter–Exhaust pipe
39 N–m (400kgf–cm, 29ft–lbf)
(c) Reinstall the bracket bolts and tighten them.
HEAT INSULATOR INSPECTION
1. CHECK HEAT INSULATOR FOR DAMAGE
2. CHECK FOR ADEQUATE CLEARANCE BETWEEN
CATALYTIC CONVERTER AND HEAT INSULATOR
SERVICE SPECIFICATIONS
TORQUE SPECIFICATIONS
No. 1 Air Injection Manifold x PAIR Reed Valve
Intake Manifold x PAIR Reed Valve
Air Intake Chamber x EGR Pipe
Cylinder Head x EGR Valve
Part tightened
–ENGINE EMISSION CONTROL SYSTEMS
EG1–100
