PISTONS AND CONNECTING RODS
ASSEMBLY

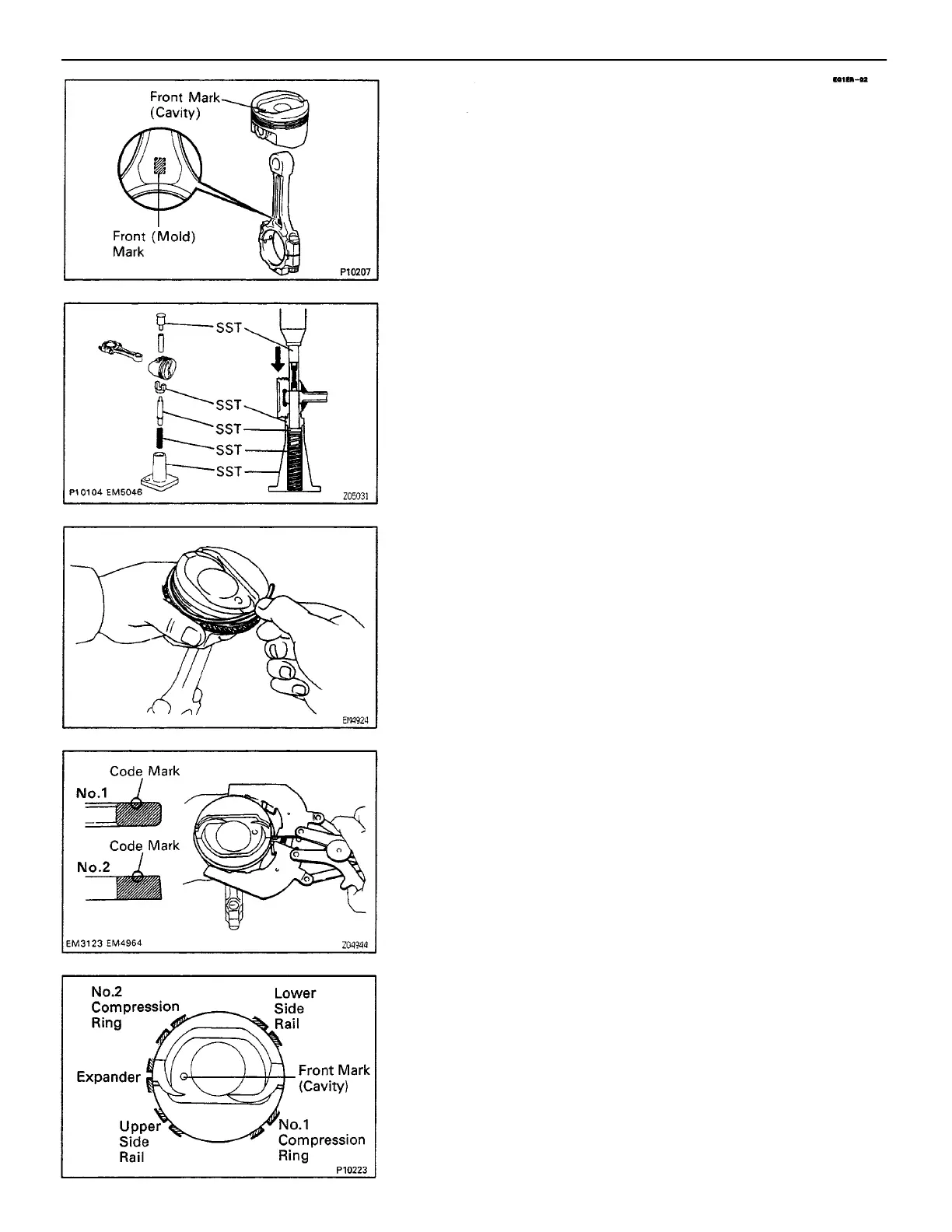

1. ASSEMBLE PISTON AND CONNECTING ROD
(a) Coat the piston pin and piston pin holes with engine
oil.
(b) Align the front marks of the piston and connecting
rod.
Connecting rod front (mold) mark:
A1, 136, 1B, 8A, C3 or etc.
(c) Using SST, press in the piston pin.
SST 09221–25024 (09221–00020, 09221–00030,
09221–00181, 09221 –00190, 09221 –00200)
(b) Using a piston ring expander, install the two com–
pression rings with the code marks facing upward.
Code mark:
No.1
1 Ror T
No.2
2R or T2
(c) Position the piston rings so that the ring ends are as
shown.
NOTICE: Do not align the ring ends.
2. INSTALL PISTON RINGS
(a) Install the oil expander and two side rails by hand.
–ENGINE ENGINE MECHANICAL
EG2–116
To Next Page
