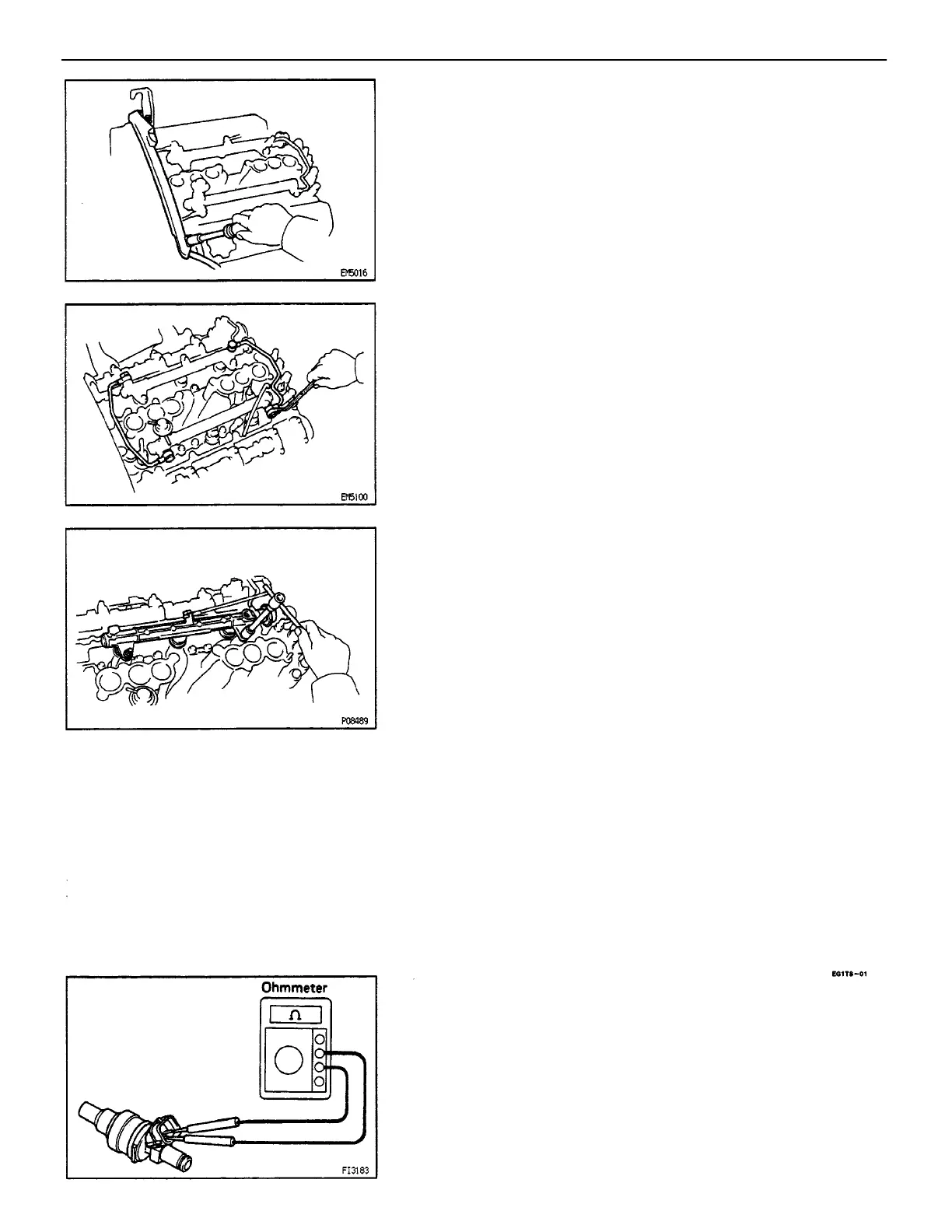

10. REMOVE DELIVERY PIPES AND INJECTORS
(a) Remove the four nuts holding the delivery pipes to the
intake manifold.
(b) Remove the the two delivery pipes and six injectors
assemblies.
NOTICE: Be careful not to drop the injectors when rem–
oving the delivery pipes.
(c) Remove the four insulators, ten spacers and four O–
rings from the cylinder head.
(d) Pull out the six injectors from the delivery pipes.
(e) Remove the O–ring and grommet from each injector.
INJECTORS INSPECTION
1. MEASURE RESISTANCE OF INJECTOR
Using an ohmmeter, check the resistance of both
terminals.
Resistance:
13.4–14.2 Ω
9. REMOVE NO.2 AND NO.3 FUEL PIPES
Remove the four union bolts, No.2, No.3 fuel pipes
and eight gaskets.
(b) Remove two bolts and engine wire.
–ENGINE MFI SYSTEM
EG2–224

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
