(a) While holding up on the sprocket and chain, turn the
crankshaft until the No. 1 and No. 4 cylinders are at
top dead center.
(b) Place the chain sprocket over the camshaft dowel.
HINT: If the chain does not seem long enough,turn the
crankshaft back and forth while pulling up on the
chain and sprocket.
3. INSTALL ROCKER ARM ASSEMBLY
(a) Place the rocker arm assembly over the dowels on the
cylinder head.

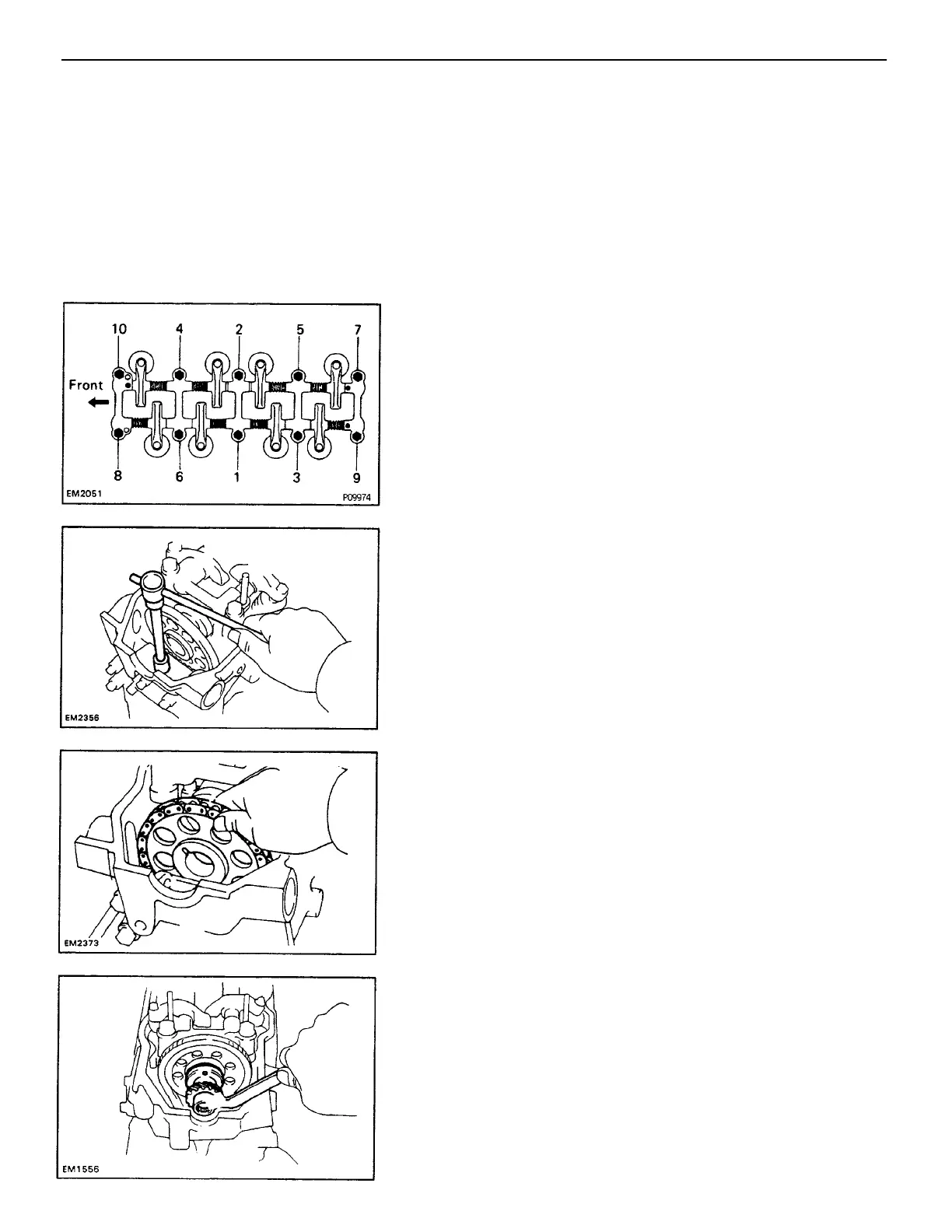

(b) Install and tighten the head bolts gradually in three
passes in the sequence shown. Torque the bolts on
the final pass.
Torque: 78N–m (800kgf–cm, 58ft–Ibf)
5. INSTALL DISTRIBUTOR DRIVE GEAR AND CAM–
SHAFT THRUST PLATE
Place the distributor drive gear and camshaft thrust
plate over the chain sprocket. Torque the bolt.
Torque: 78N–m (800kgf–cm, 58ft–Ibf)
(a) If the sprocket was removed, align the alignment
marks placed on the sprocket and chain during re–
moval.
(b) position the cylinder head over dowels on the block.
4. INSTALL CHAIN COVER BOLT
Torque the bolt.
Torque: 13N–m (130kgf–cm, 9ft–lbf)
–ENGINE ENGINE MECHANICAL
EG1–34
