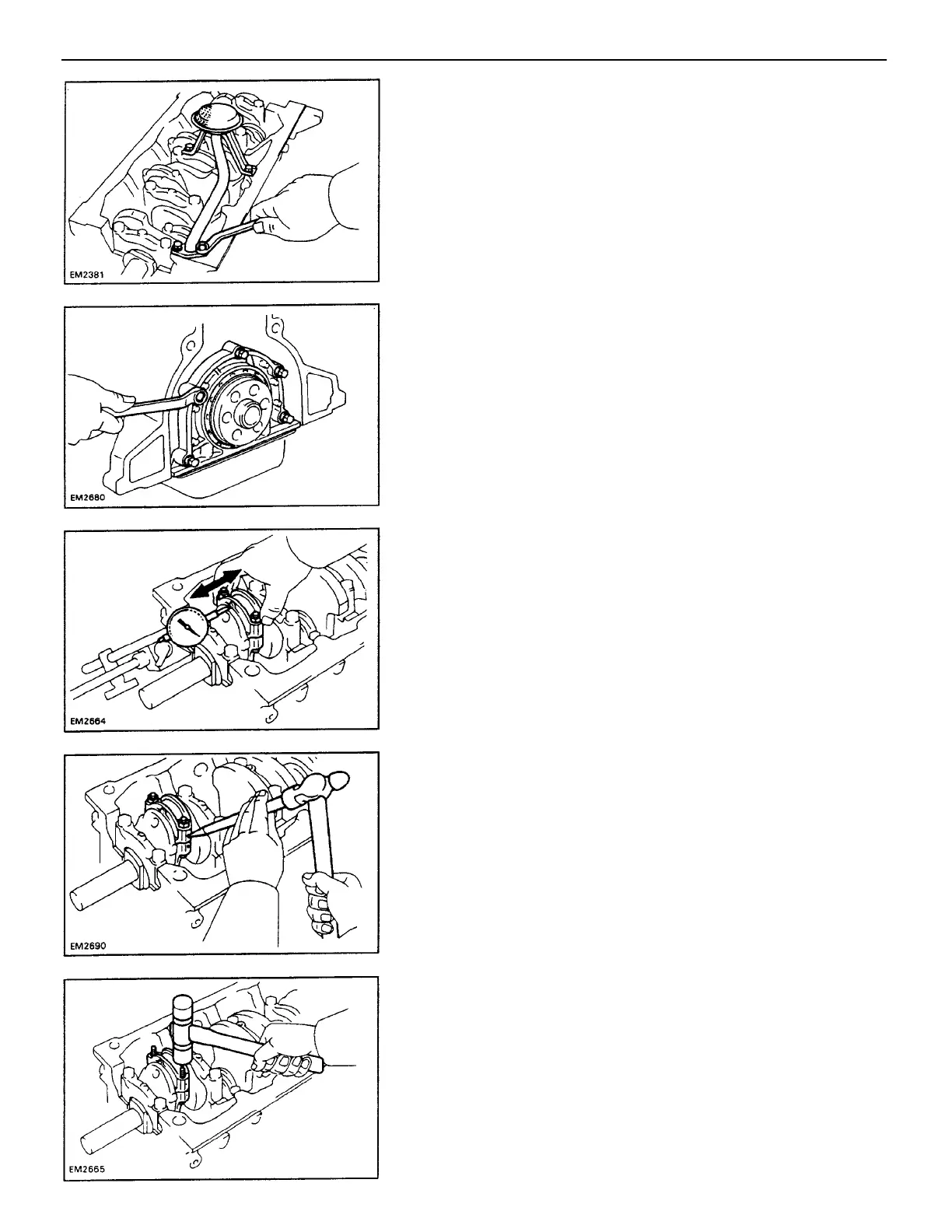

18. MEASURE CONNECTING ROD THRUST CLEAR–
ANCE
Using a dial gauge, measure the thrust clearance.
Standard clearance: 0.16 – 0.26 mm
(0.063 – 0.0102 in.)
Maximum clearance: 0.3 mm(0.012 in.)
If clearance is greater than maximum, replace the
connecting rod and/or crankshaft.
(c) Using a plastic–faced hammer, tap the rod bolts
lightly and lift off the rod cap.
HINT: Keep the bearing inserted in the cap.
(d) Clean the bearing and crankshaft pins.
(e) Inspect each bearing for pitting and radial scratches.
If bearing are damaged, replace the bearings.
19. MEASURE CONNECTING ROD OIL CLEARANCE
(a) Using a punch or numbering stamp, mark connecting
rods and caps to ensure correct reassembly.
(b) Remove the rod cap nuts.
17. REMOVE REAR OIL SEAL RETAINER
Remove the five bolts, rear oil seal retainer and
gasket.
16. REMOVE OIL STRAINER
Remove the four bolts, strainer and gasket.
–ENGINE ENGINE MECHANICAL
EG1–51

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
