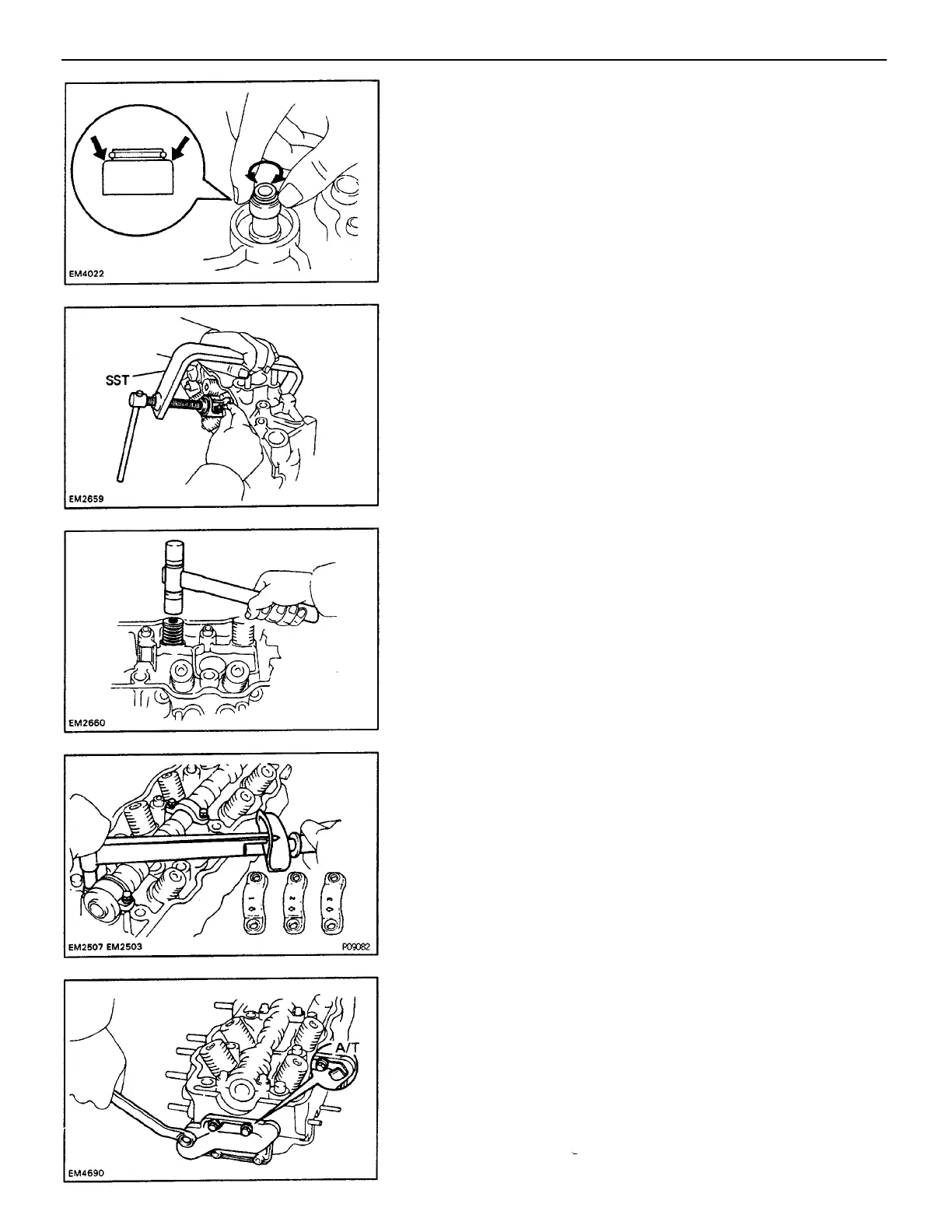

1. INSTALL VALVES
(a) Install a new oil seal on the valve guide bushing.
HINT Pushing down at the place shown in the illus–
tration.
(b) Rotate the oil seal to check that it is firmly installed.
(c) Lubricate and insert valve in the valve guide bushing.
Check that valves are installed in the correct order.
(d) Install spring seat, spring and spring retainer on the
cylinder head.
(e) Using SST, compress valve retainer and place two
keepers around the valve stem.
SST 09202–43013
2. INSTALL CAMSHAFT
(a) Place the camshaft in the cylinder head and install the
bearing caps in numbered order from the front with
arrows pointed toward the front.
(b) Install and torque the cap bolts.
Torque: 20N–m (200kgf–cm, 14ft–Ibf)
(c) Turn the camshaft to position the dowel at the top.
3. INSTALL CYLINDER HEAD REAR COVER
Install a new gasket, cylinder head rear cover and
throttle cable clamp (for A/T) with the four bolts.
4. INSTALL LH ENGINE HANGER AND GROUND
STRAP
5. INSTALL RH ENGINE HANGER
(f) Tap the stem lightly to assure proper fit.
ENGINE ENGINE MECHANICAL
EG1–31
