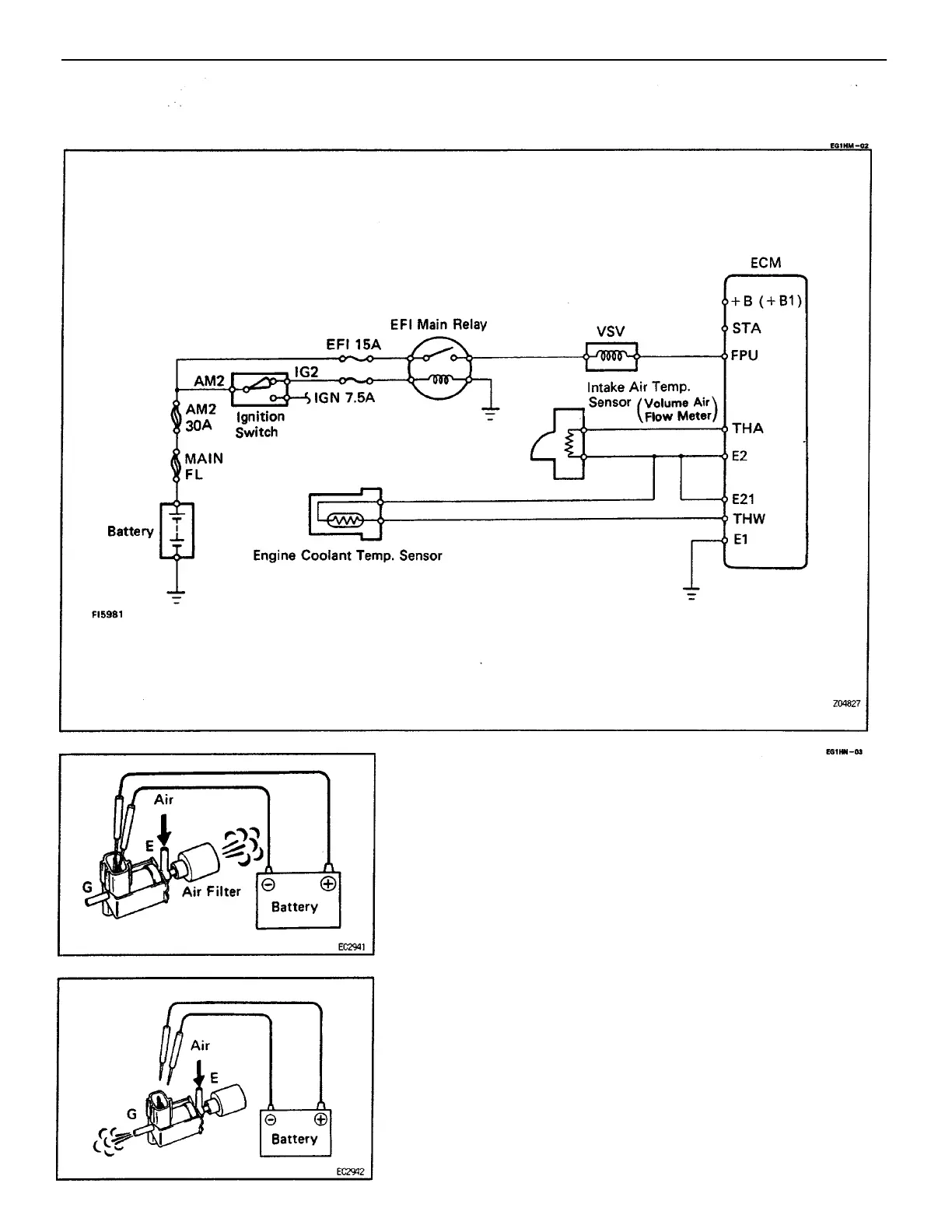

FUEL PRESSURE VSV INSPECTION
1. CHECK VSV OPERATION
(a) Connect the VSV terminals to the battery terminals as
illustrated.
(b) Blow into pipe E and check that air comes out of air
filter.
(c) Disconnect the battery.
(d) Blow into pipe E and check that air comes out of pipe
G.
If a problem is found, repair or replace the VSV.
FUEL PRESSURE CONTROL SYSTEM
–ENGINE MFI SYSTEM
EG2–249

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
