4. REMOVE OIL PAN
(a) Remove the engine undercover.
(b) Remove the engine mounting bolts.
(c) (2WD)
Place a jack under the transmission and raise the
engine approx. 25 mm (0.98 in.)
(d) Remove the sixteen bolts and nuts.
(e) Using SST and brass bar, separate the oil pan from the
cylinder block.
PREPARATION OF REMOVAL
1. REMOVE CYLINDER HEAD
(See page EG1–16)
2. REMOVE RADIATOR
(See page EG1–230)
3. (4WD)
REMOVE FRONT DIFFERENTIAL
(See SA section)

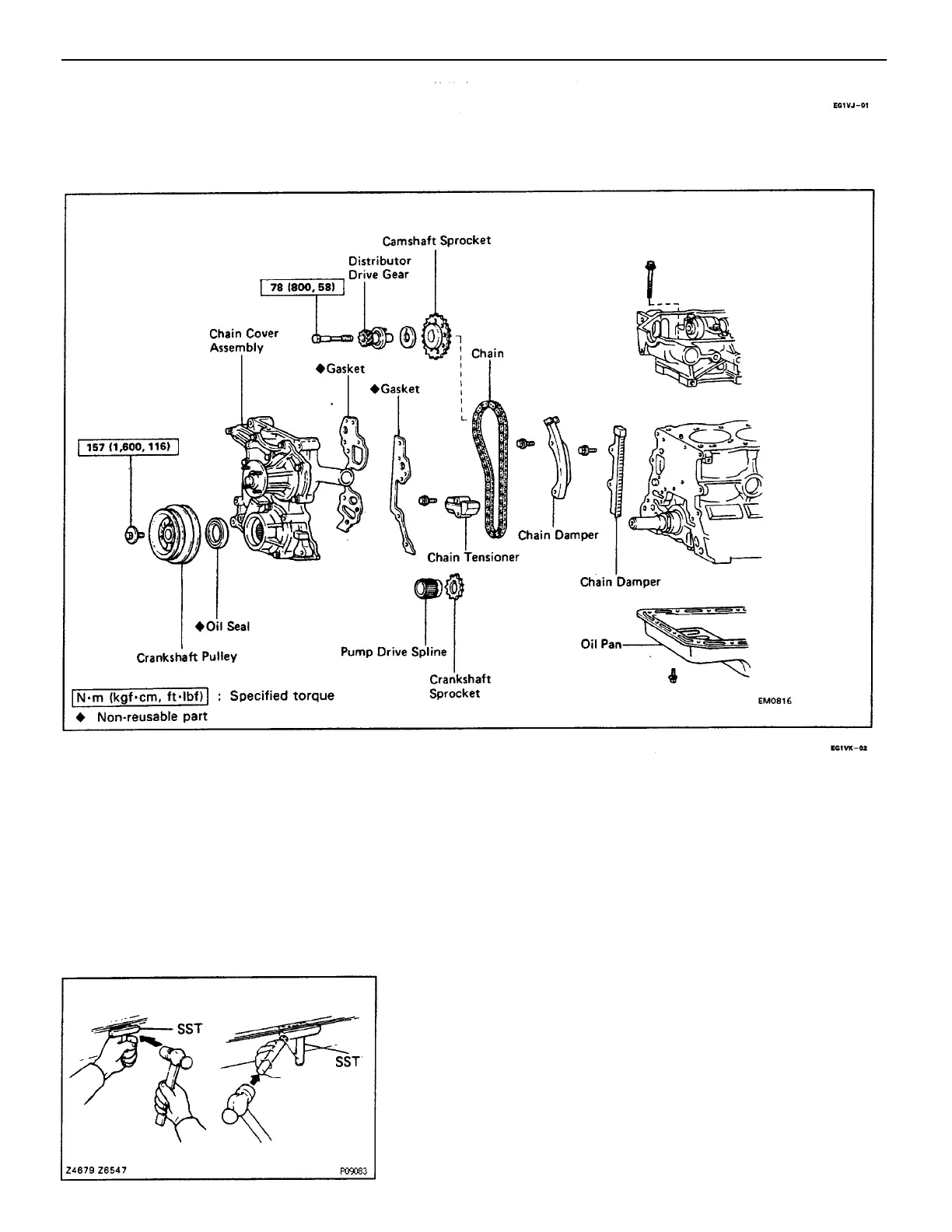

TIMING CHAIN
COMPONENTS
–ENGINE ENGINE MECHANICAL
EG1–39
To Next Page
