TIMING BELT REMOVAL
(See Components)
NOTICE: If removing and later reinstalling the fluid cou–
pling from the fan bracket, place matchmarks on the fluid
coupling and fan bracket so that the fluid coupling can be
replaced exactly as before.
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL
OF BATTERY
2. REMOVE ENGINE UNDER COVER
3. DRAIN ENGINE COOLANT
4. REMOVE RADIATOR
(a) Disconnect the reservoir hose.
(b) (A/T only)
Disconnect the oil cooler hoses.
(c) Remove the radiator hoses.
TIMING BELT

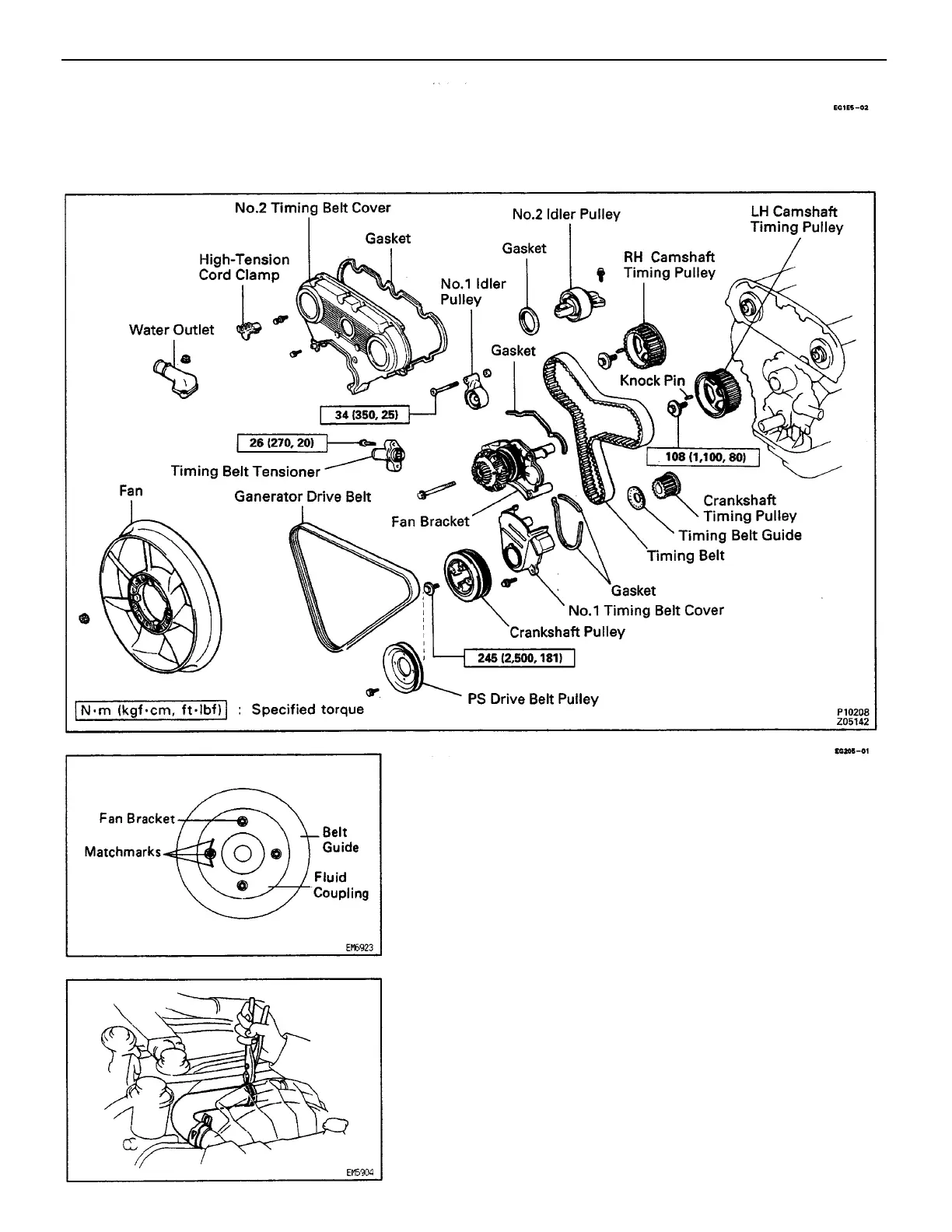

COMPONENTS
–ENGINE ENGINE MECHANICAL
EG2–32
