Toyota 22R-E User Manual

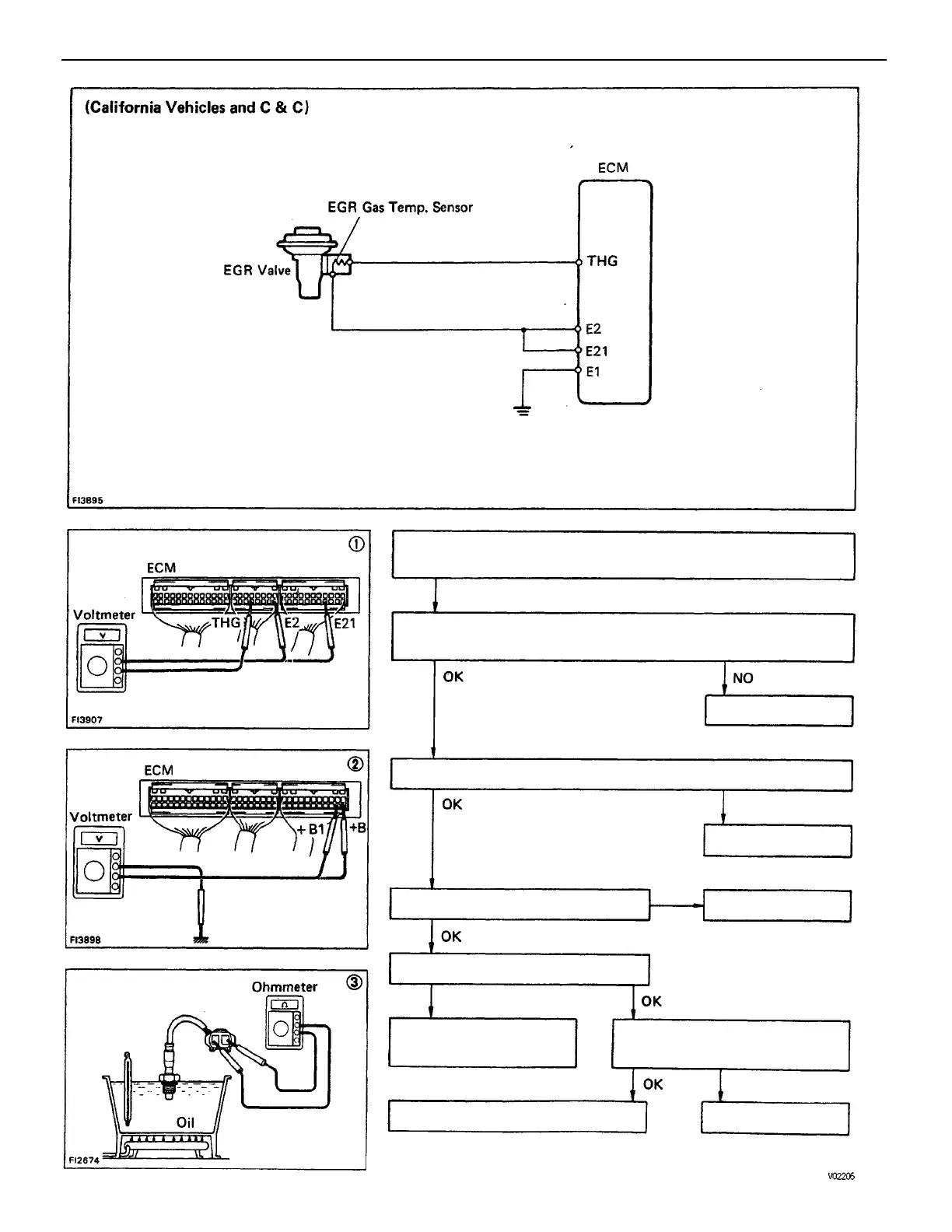

(2) Check that there is voltage between ECM terminal + B (+ B1) and
body ground. (IG SW ON)
(1) There is no voltage between ECM terminals THG and E2 (E21).
(Engine running at 2,000 rpm)
Check wiring between ECM terminal E1 and body ground.
Check wiring between ECM and
EG R gas temp. sensor.
Check EGR gas temp. sensor.
Replace EGR gas temp.
sensor.
Check EGR system.
Try another ECM.
Repair or replace.
Repair or replace.
Repair or replace.
Refer to No. 1.
BAD
BAD
BAD
BAD
–ENGINE MFI SYSTEM
EG2–201

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
