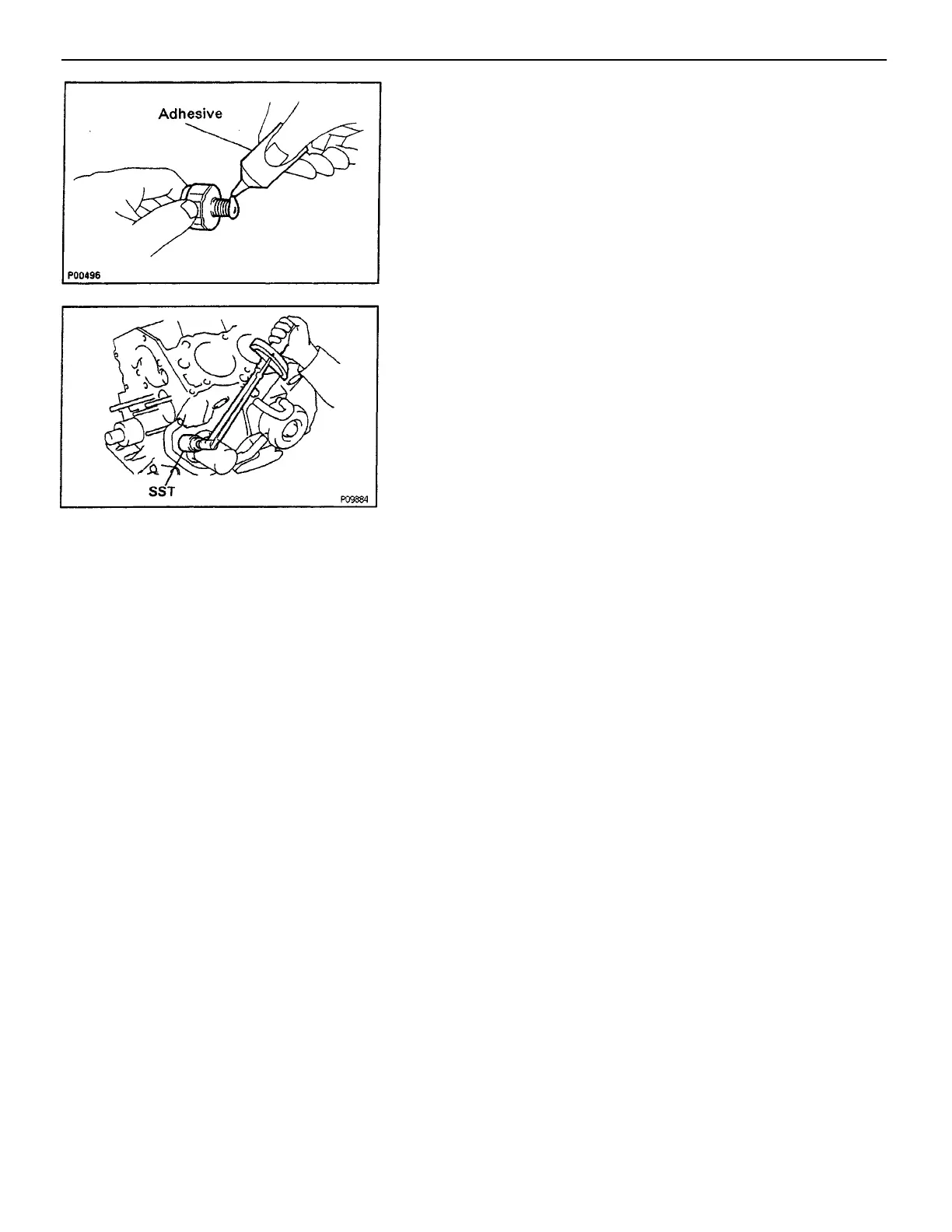

8. INSTALL OIL PRESSURE SENDER GAUGE
(a) Apply adhesive to two or three threads.
Adhesive:
Part No. 08833–00080, THREE BOND 1344,
LOCTITE 242 or equivalent
(b) Using SST, install the oil pressure sender gauge.
SST 09818 – 30010
Torque: 15 N–m (150 kgf–cm, 11 ft–lbf)
9. START ENGINE AND CHECK FOR LEAKS
–ENGINE LUBRICATION SYSTEM
EG2–277

Toyota 22R-E Specifications

General

Displacement	2.4 L (2366 cc)
Fuel System	Electronic Fuel Injection (EFI)
Compression Ratio	9.0:1
Torque	142 lb⋅ft (193 N⋅m) at 3, 400 rpm
Block Material	Cast Iron
Head Material	Aluminum
Engine Type	Inline-4
Bore x Stroke	92 mm x 89 mm (3.62 in x 3.50 in)
Valvetrain	SOHC, 2 valves per cylinder
Power Output	112 hp (84 kW) at 4, 600 rpm
