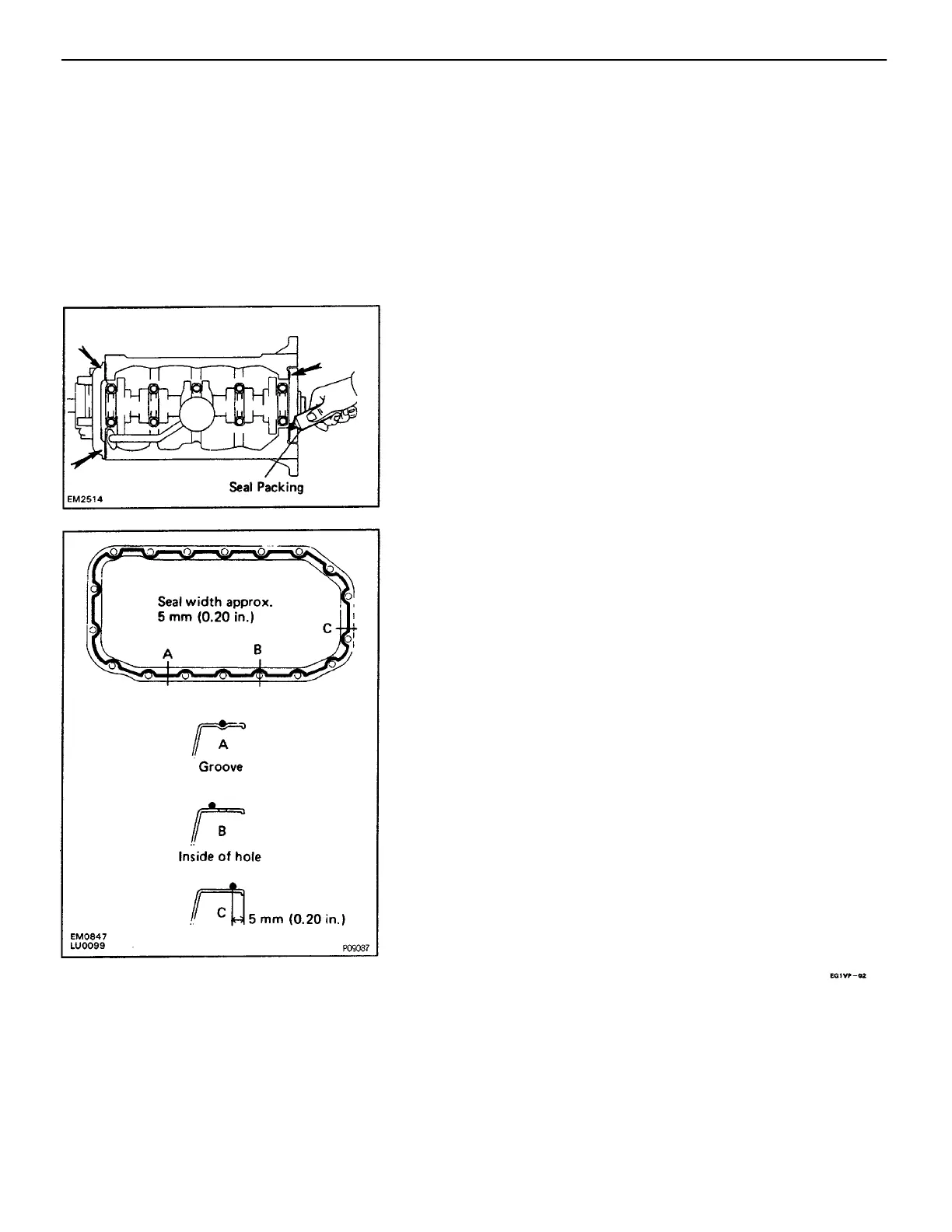

(c) Apply seal packing to the oil pan as shown in the
illustration.
Seal packing: Part No.08826–00080 or equivalent
Install a nozzle that has been cut to a 5–mm
(0.20 in.) opening.
HINT: Avoid applying an excess amount to the sur–
face. Be especially careful near oil passages.
• If parts are not assembled within 5 minutes of
applying the seal packing, the effectiveness of
the seal packing is lost and the seal packing must
be removed and reapplied.
• Immediately remove the nozzle from the tubs and
reinstall the cap after using the seal packing.
(d) Install the oil pan over the studs on the block with the
sixteen bolts and two nuts. Torque the bolts and nuts.
Torque: 13N–m(130kgf–cm, 9ft–lbf)
(e) Lower the engine and install the engine mounting
bolts.
(f) Install the engine under cover.
• Using a razor blade and gasket scraper, remove
all the packing (FIPG) material from the gasket
surfaces.
• Thoroughly clean all components to remove all
the loose material.
• Clean both sealing surfaces with a non–residue
solvent.
NOTICE: Do not use a solvent which will affect the pai–
nted surfaces.
(b) Apply seal packing to the joint part of the cylinder
block and chain cover, cylinder block and rear oil seal
retainer.
Seal packing: Part No.08826–00080 or equivalent
POST INSTALLATION
1. INSTALL RADIATOR
2. INSTALL CYLINDER HEAD
(See page EG1–34)
3. (4WD) INSTALL FRONT DIFFERENTIAL
(See SA section)
–ENGINE ENGINE MECHANICAL
EG1–45
To Next Page
