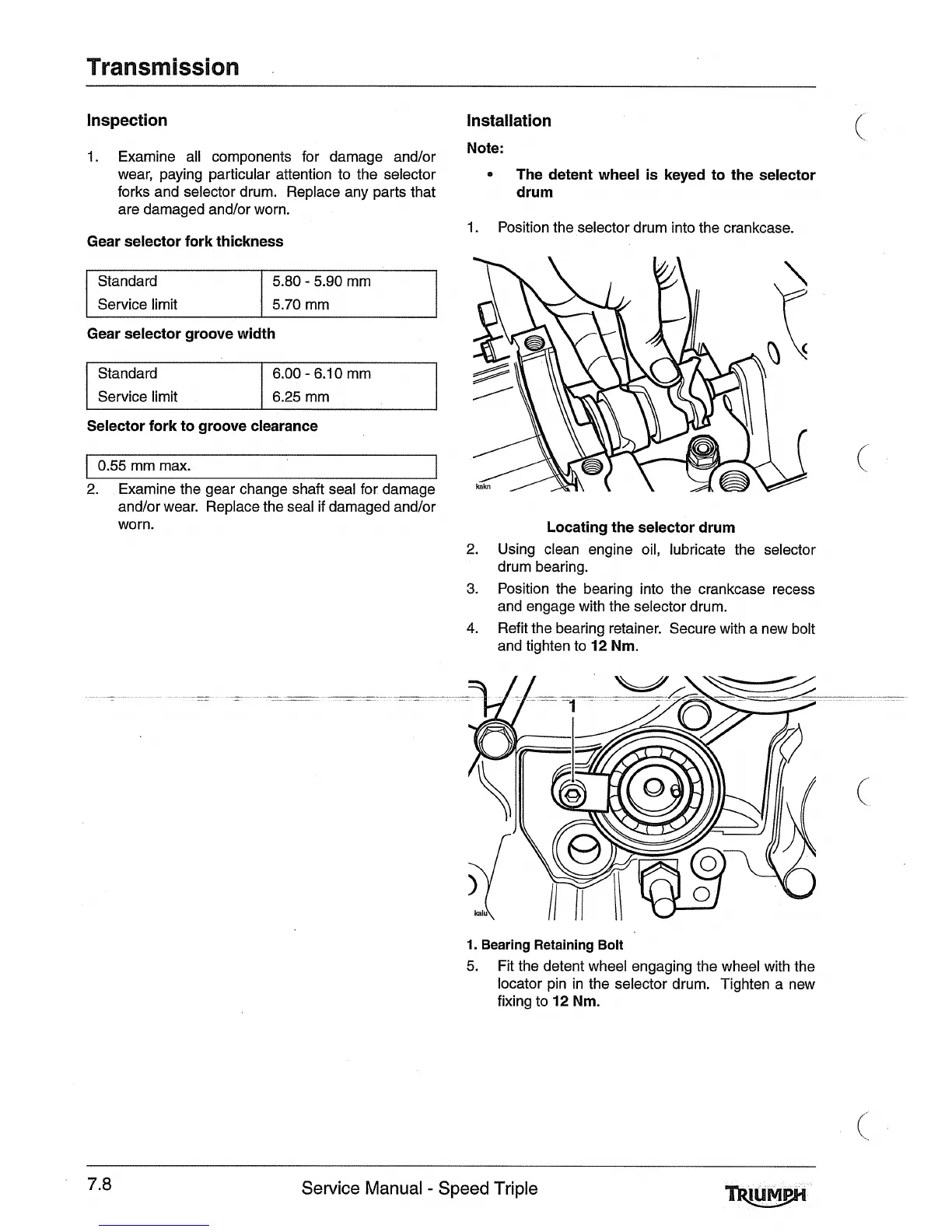

Inspection
1. Examine all components for damage andlor
wear, paying particular attention to the selector
forks and selector drum. Replace any parts that
are damaged and/or worn.
Gear selector fork thickness
I Standard 1 5.80 - 5.90 mm
I
Gear selector groove width
I Service limit 5.70 mm
Selector fork to groove clearance
Standard
Service limit
0.55 mm
max.
2. Examine the gear change shaft seal for damage
andlor wear. Replace the seal if damaged andlor
worn.
6.00
- 6.1 0 mm
6.25 mm
Installation
Note:
c
The detent wheel is keyed to the selector
drum
1. Position the selector drum into the crankcase.
Locating the selector drum
2.
Using clean engine oil, lubricate the selector
drum bearing.
3. Position the bearing into the crankcase recess
and engage with the selector drum.
4.
Refit the bearing retainer. Secure with a new bolt
and tighten to
12 Nm.
I. Bearing Retaining Bolt
5.
Fit the detent wheel engaging the wheel with the
locator pin in the selector drum. Tighten a new
fixing to
12 Nm.
Service Manual - Speed Triple
