Triumph Speed Triple Service Manual

Note:
Two longer bolts are fitted at the end
adjacent to the cam chain.
3
capa
5 2

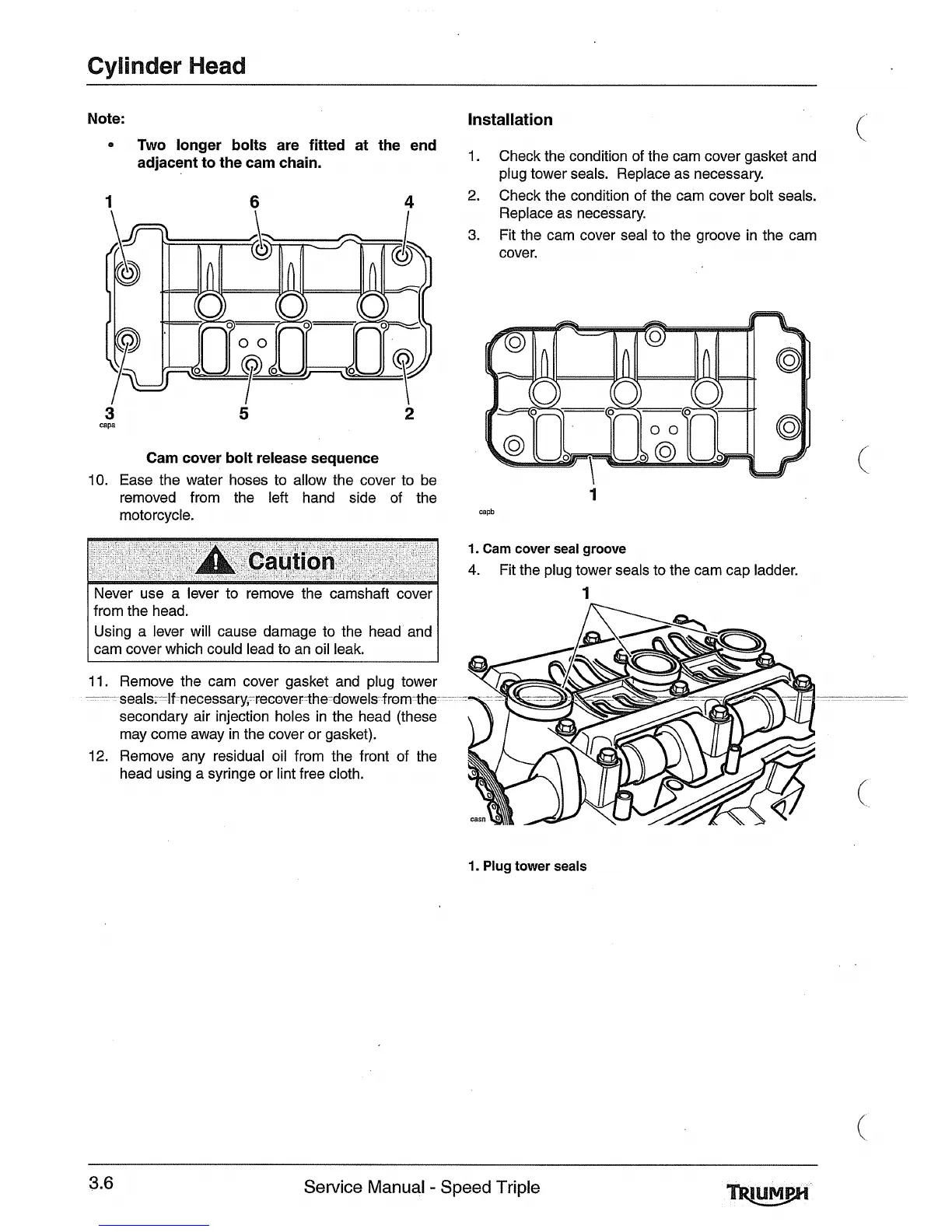

Cam cover bolt release sequence
10. Ease the water hoses to allow the cover to be
removed from the left hand side of the
motorcycle.
Installation
1.
Check the condition of the cam cover gasket and
plug tower seals. Replace as necessary.
2.
Check the condition of the cam cover bolt seals.
Replace as necessary.
3.
Fit the cam cover seal to the groove in the cam
cover.
Never use a lever to remove the camshaft cover
from the head.
Using a lever will cause damage to the head and
cam cover which could lead to an oil leak.
11. Remove the cam cover gasket and plug tower
- seals. --If necessary,-recover-the-dowels from-the--
secondary air injection holes in the head (these
may come away in the cover or gasket).
12. Remove any residual oil from the front of the
head using a syringe or lint free cloth.
1. Plug tower seals
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
