ront Suspension
I]

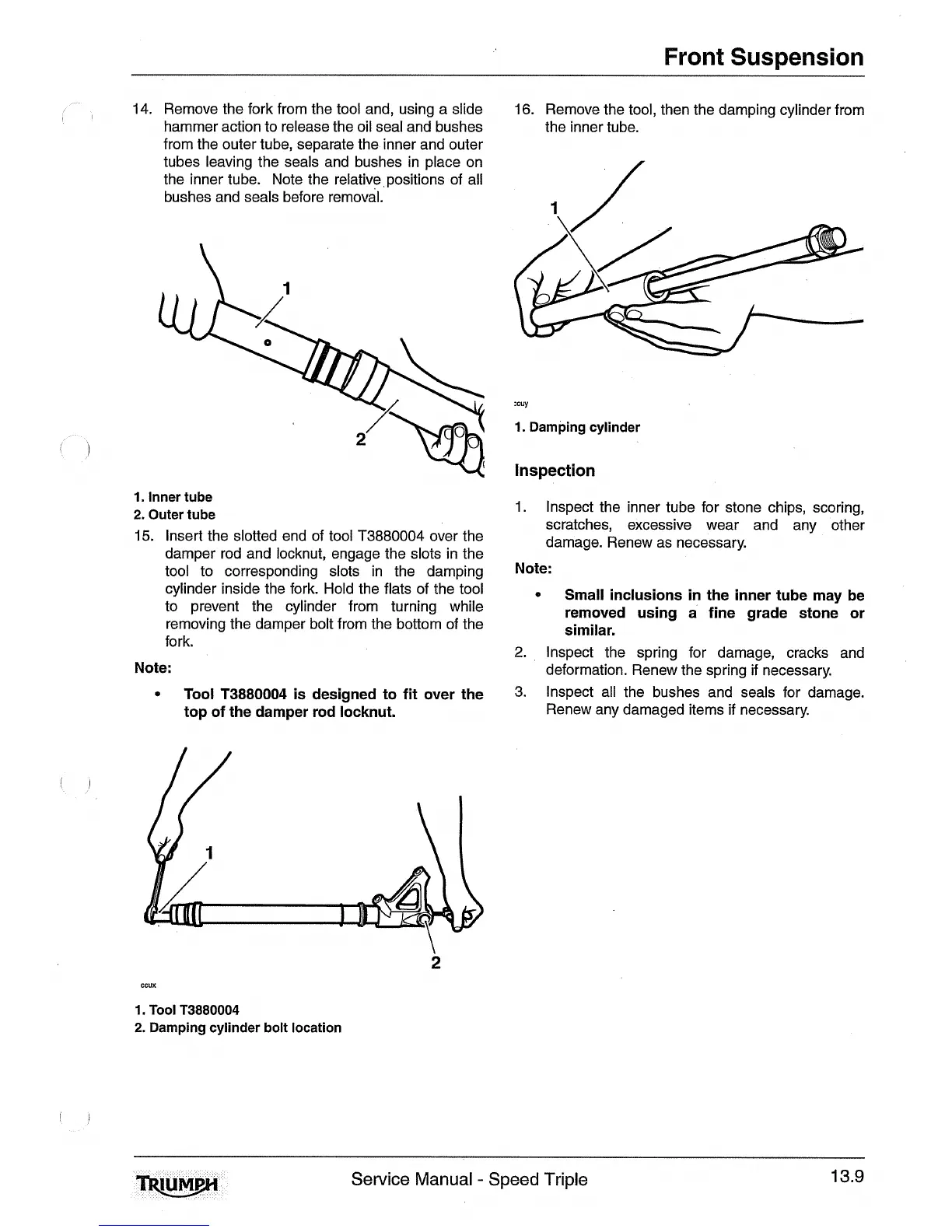

14. Remove the fork from the tool and, using a slide
hammer action to release the oil seal and bushes
from the outer tube, separate the inner and outer
tubes leaving the seals and bushes in place on
the inner tube. Note the relative positions of all
bushes and seals before removal.
16. Remove the tool, then the damping cylinder from
the inner tube.
:cuy
1.
Damping cylinder
Inspection
1.
Inner tube
2.
Outer tube
15. Insert the slotted end of tool T3880004 over the
damper rod and locknut, engage the slots in the
tool to corresponding slots in the damping
cylinder inside the fork. Hold the flats of the tool
to prevent the cylinder from turning while
removing the damper bolt from the bottom of the
fork.
Note:
Tool T3880004 is designed to fit over the
top of the damper rod locknut.
1.
lnspect the inner tube for stone chips, scoring,
scratches, excessive wear and any other
damage. Renew as necessary.
Note:
*
Small inclusions in the inner tube may be
removed using a fine grade stone or
similar.
2.
lnspect the spring for damage, cracks and
deformation. Renew the spring if necessary.
3.
lnspect all the bushes and seals for damage.
Renew any damaged items if necessary.
2
CCUX
1.
Tool T3880004
2. Damping cylinder bolt location
