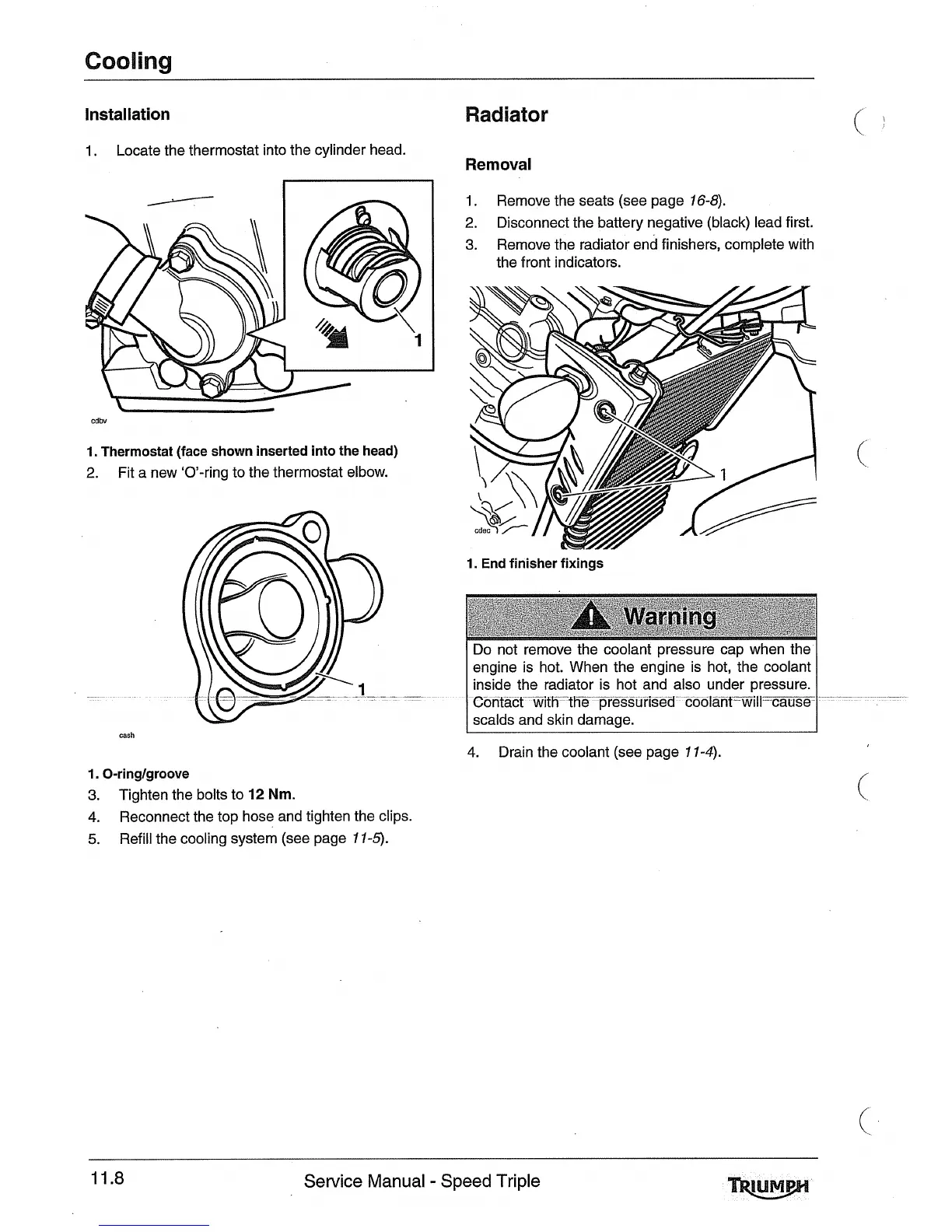

Triumph Speed Triple Service Manual

Installation
1.
Locate the thermostat into the cylinder head.
adiator
Removal
1. Remove the seats (see page 16-8).
2. Disconnect the battery negative (black) lead first.
3. Remove the radiator end finishers, complete with
the front indicators.
\
cdbv
1. Thermostat (face shown inserted into the head)
2.
Fit a new '0'-ring to the thermostat elbow.
1. End finisher fixings
cash
1.0-ringlgroove
3.
Tighten the bolts to 12 Nm.
4.
Reconnect the top hose and tighten the clips.
5.
Refill the cooling system (see page 11-5).
Do not remove the coolant pressure cap when the
I
engine is hot. When the engine is hot, the coola
inside the radiator is hot and also under p
Contact with
TKe pressurised coolant-Til
scalds and skin damage.
. Drain the coolant (see page 11-4).
c
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
