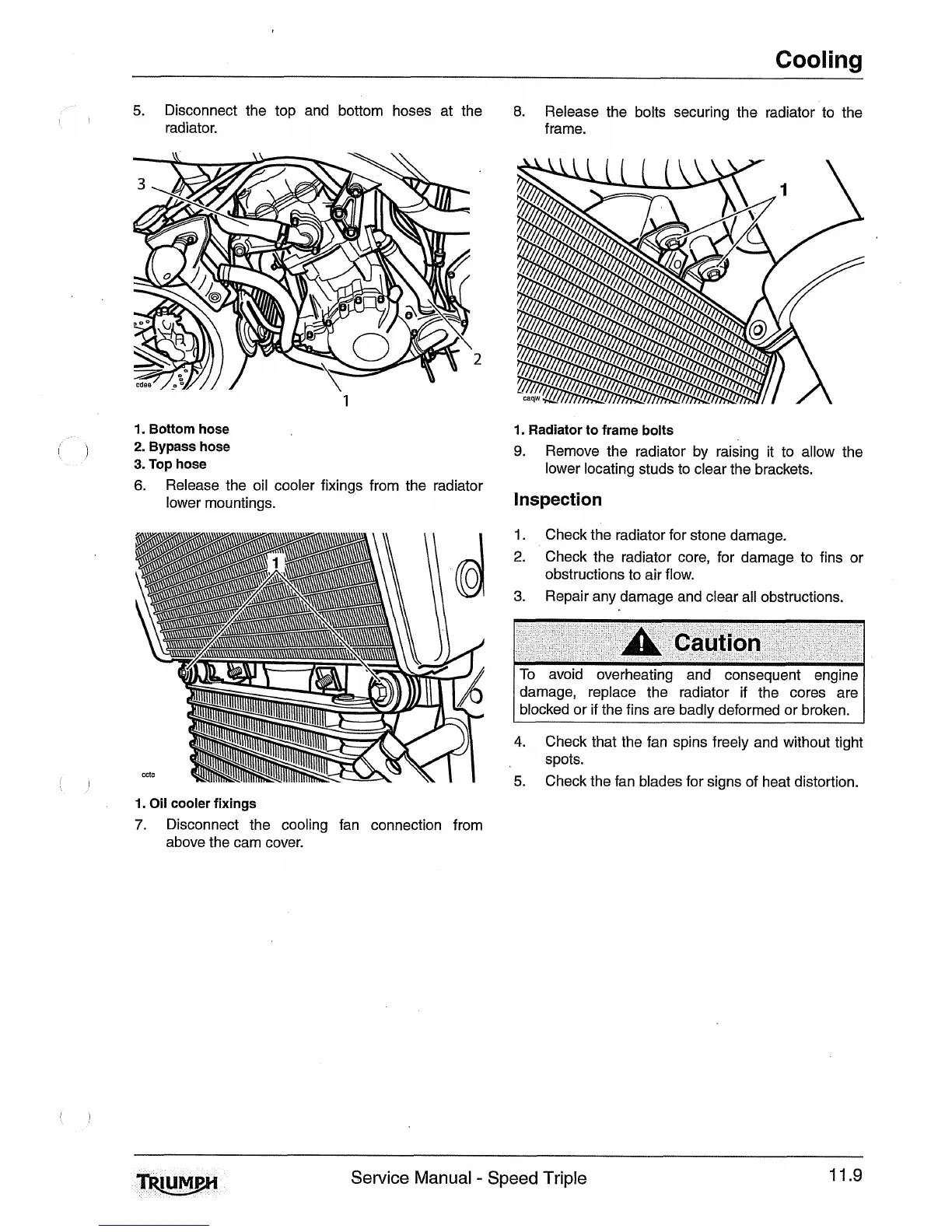

Cooling
5.
Disconnect the top and bottom hoses at the
8.
Release the bolts securing the radiator to the
I
radiator. frame.
1.
Bottom hose
1.
Radiator to frame bolts
1)
2.
Bypass hose
9.
Remove the radiator by raising it to allow the
3.
Top hose
lower locating studs to clear the brackets.
6.
Release the oil cooler fixings from the radiator
lower mountings.
Inspection
1.
Oil cooler fixings
7.
Disconnect the cooling fan connection from
above the cam cover.
1.
Check the radiator for stone damage.
2.
Check the radiator core, for damage to fins or
obstructions to air flow.
3.
Repair any damage and clear all obstructions.
A
Caution
I
To avoid overheating and consequent engine
l
damage, replace th; radiator if the cores are
blocked or if the fins are badly deformed or broken.
-
1
4.
Check that the fan spins freely and without tight
spots.
5.
Check the fan blades for signs of heat distortion.
Sewice
Manual
-
Speed Triple
