Triumph Speed Triple Service Manual

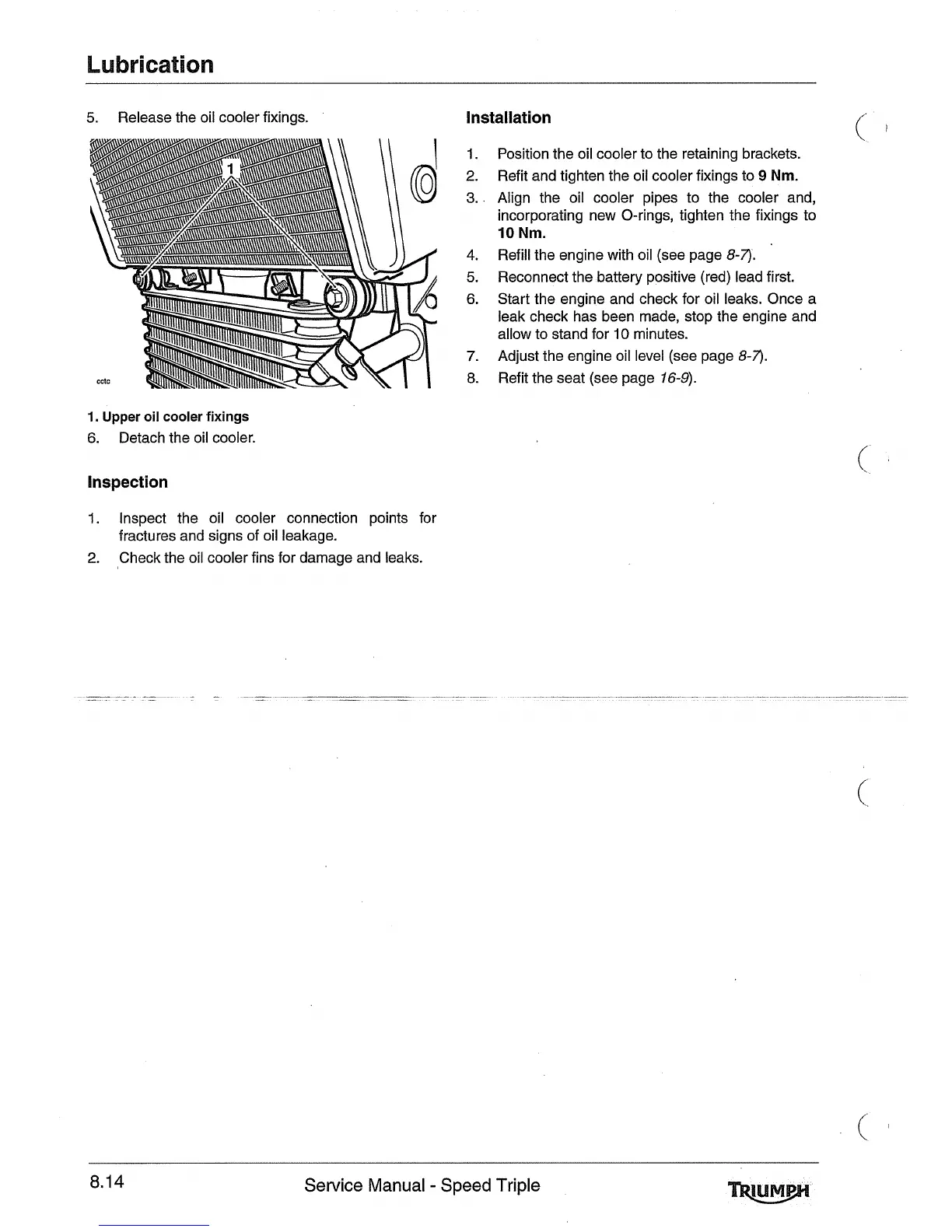

5. Release the oil cooler fixings. Installation
Position the oil cooler to the retaining brackets.
Refit and tighten the oil cooler fixings to
9 Nm.
Align the oil cooler pipes to the cooler and,
incorporating new O-rings, tighten the fixings to
10 Nm.
Refill the engine with oil (see page 8-7).
Reconnect the battery positive (red) lead first.
Start the engine and check for oil leaks. Once a
leak check has been made, stop the engine and
allow to stand for
10 minutes.
Adjust the engine oil level (see page
8-7).
Refit the seat (see page 16-9).
1. Upper oil cooler fixings
6. Detach the oil cooler.
Inspection
1. Inspect the oil cooler connection points for
fractures and signs of oil leakage.
2. Check the oil cooler fins for damage and leaks.
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
