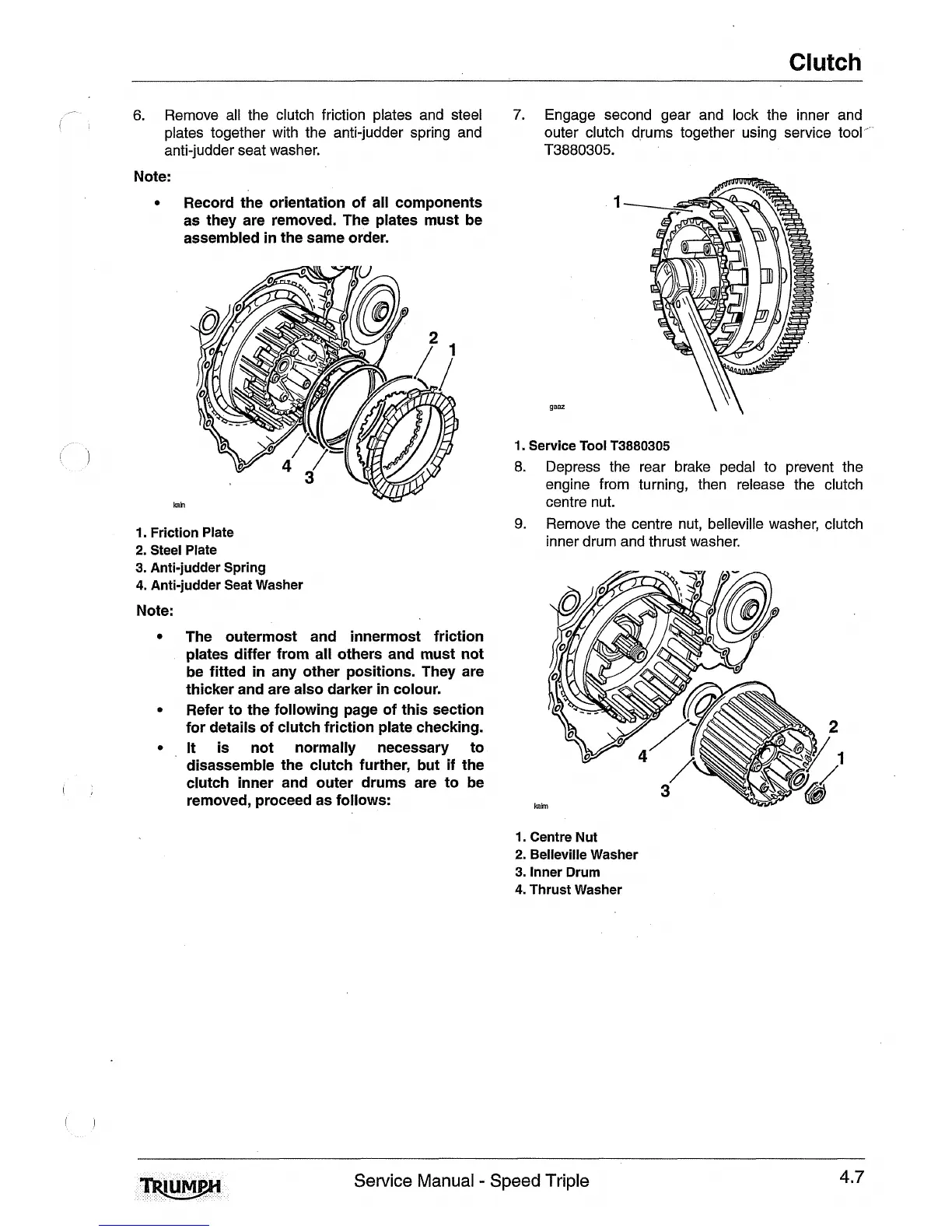

Clutch
6.
Remove all the clutch friction plates and steel
plates together with the anti-judder spring and
anti-judder seat washer.
Engage second gear and lock the inner and
outer clutch drums together using service tool
T3880305.
Note:
Record the orientation of all components
as they are removed. The plates must be
assembled in the same order.
1.
Friction Plate
2.
Steel Plate
3. Anti-judder Spring
4.
Anti-judder Seat Washer
Note:
The outermost and innermost friction
plates differ from all others and must not
be fitted in any other positions. They are
thicker and are also darker in colour.
Refer to the following page of this section
for details of clutch friction plate checking.
It is not normally necessary to
disassemble the clutch further, but if the
clutch inner and outer drums are to be
removed, proceed as follows:
Service Tool T3880305
Depress the rear brake pedal to prevent the
engine from turning, then release the clutch
centre nut.
Remove the centre nut, belleville washer, clutch
inner drum and thrust washer.
1.
Centre Nut
2.
Belleville Washer
3. Inner Drum
4.
Thrust Washer
Service
Manual
-
Speed Triple
