Triumph Speed Triple Service Manual

General Information
i

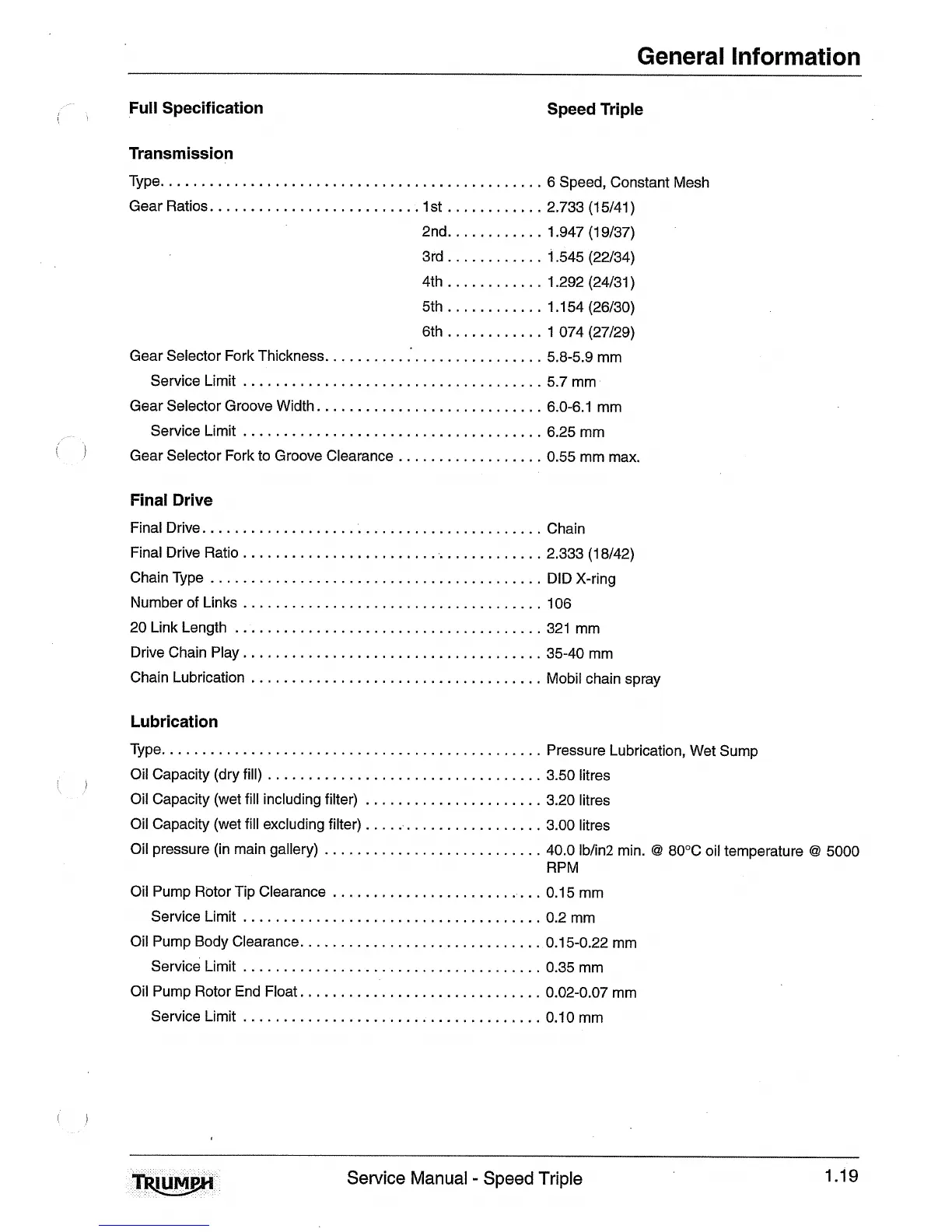

Full Specification
Transmission
Speed Triple
...............................................
Type 6Speed,ConstantMesh
............ Gear Ratios. ........................ .I st 2.733 (1 5/41 )
...........
2nd. 1.947 (1 9/37)
............
3rd 1.545 (22134)
4th
............ 1.292 (24131)
5th
............ 1 .I 54 (26130)
6th
............ 1 074 (27129)
Gear Selector Fork Thickness.
.......................... 5.8-5.9 mm
Service Limit
..................................... 5.7 mrn
Gear Selector Groove Width.
........................... 6.0-6.1 mm
Service Limit
..................................... 6.25 mm
1)
Gear Selector Fork to Groove Clearance .................. 0.55 mm max.
Final Drive
Final Drive. ......................................... Chain
Final Drive Ratio
...................................... 2.333 (1 8/42)
Chain Type
......................................... DID X-ring
Number of Links
..................................... 106
20LinkLength
...................................... 321mm
Drive Chain Play.
.................................... 35-40 mm
Chain Lubrication
.................................... Mobil chain spray
Lubrication
Type. .............................................. Pressure Lubrication, Wet Sump
Oil Capacity (dry fill)
.................................. 3.50 litres
Oil Capacity (wet fill including filter)
...................... 3.20 litres
Oil Capacity (wet fill excluding filter)
...................... 3.00 litres
Oil pressure (in main gallery)
........................... 40.0 Iblin2 min. Q 80°C oil temperature 8 5000
RPM
Oil Pump Rotor Tip Clearance
........................... 0.1 5 mm
Service Limit
..................................... 0.2 mm
Oil Pump Body Clearance.
............................. 0.1 5-0.22 mm
service Limit
..................................... 0.35 mm
Oil Pump Rotor End Float.
............................. 0.02-0.07 mm
Service Limit
..................................... 0.1 0 mm
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
