Triumph Speed Triple Service Manual

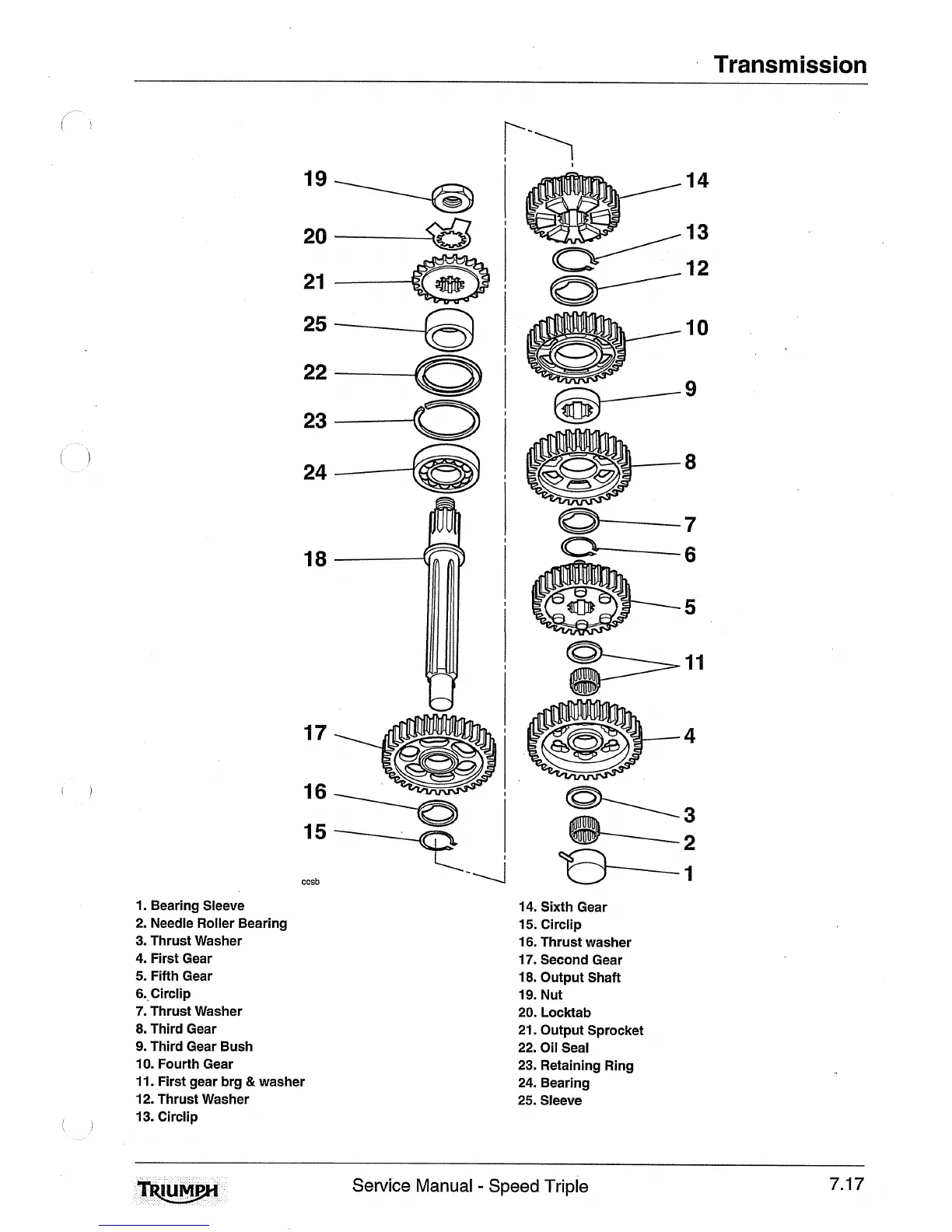

Transmission
19
20
21
25
22
23
24
18
17
16
15
ccsb
1. Bearing Sleeve
2. Needle Roller Bearing
3. Thrust Washer
4. First Gear
5. Fifth Gear
6.. Circlip
7. Thrust Washer
8. Third Gear
9. Third Gear Bush
10. Fourth Gear
11. First gear brg
& washer
12. Thrust Washer
13. Circlip
14. Sixth Gear
15. Circlip
16. Thrust washer
17. Second Gear
18. Output Shaft
19. Nut
20.
Locktab
21. Output Sprocket
22. Oil Seal
23. Retaining Ring
24. Bearing
25. Sleeve
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
