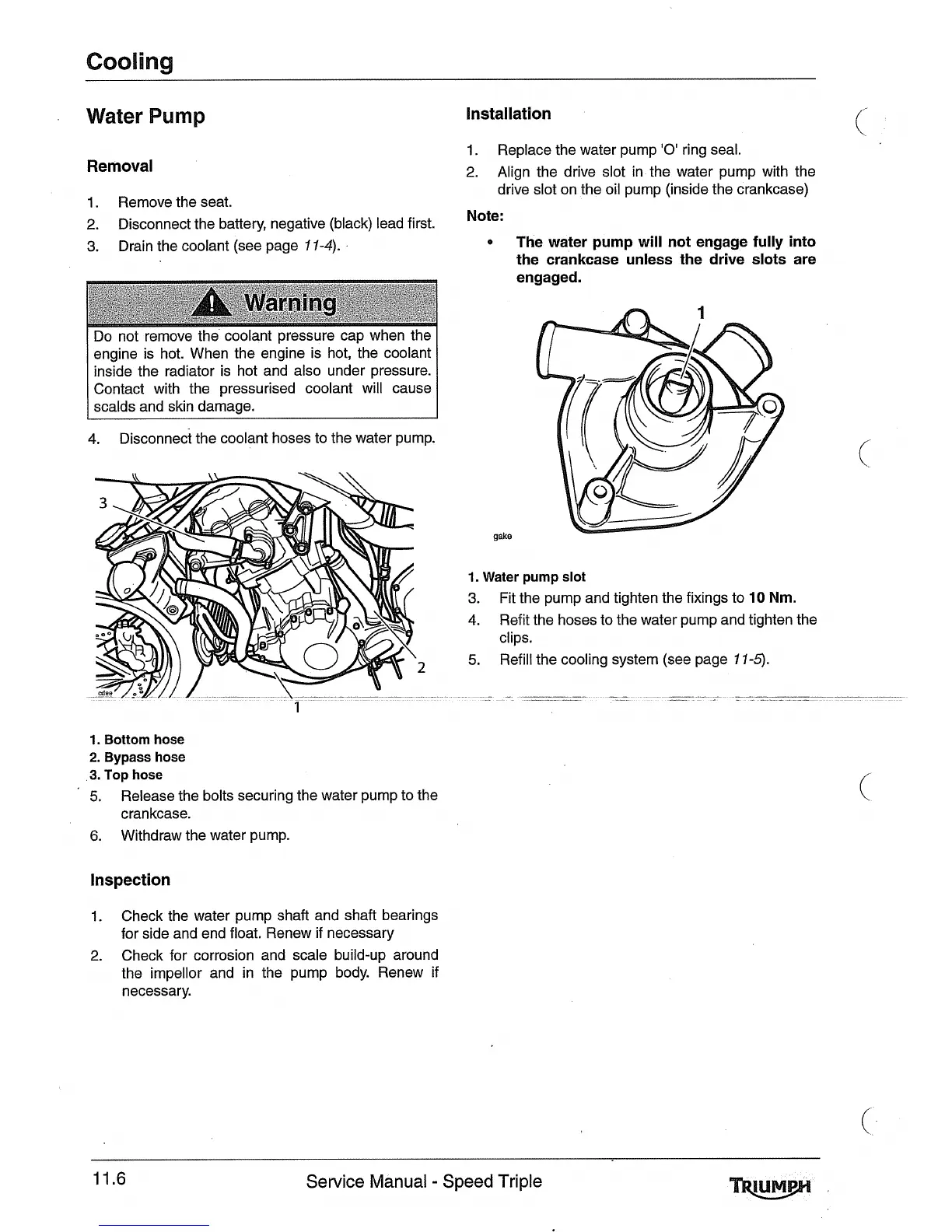

Installation
Removal
1.
Remove the seat.
2.
Disconnect the battery, negative (black) lead first.
3.
Drain the coolant (see page 11-4).
1.
Replace the water pump
'0'
ring seal.
2.
Align the drive slot in the water pump with the
drive slot on the oil pump (inside the crankcase)
Note:
0
The water pump will not engage fully into
the crankcase unless the drive slots are
engaged.
Do not remove the coolant pressure cap when the
engine is hot. When the engine is hot, the coolant
inside the radiator is hot and also under pressure.
Contact with the pressurised coolant will cause
4.
is connect
the coolant hoses to the water pump.
gake
1.
Bottom hose
2.
Bypass hose
3.
Top hose
5.
Release the bolts securing the water pump to the
crankcase.
6.
Withdraw the water pump.
Inspection
1.
Check the water pump shaft and shaft bearings
for side and end float. Renew if necessary
2.
Check for corrosion and scale build-up around
the impellor and in the pump body. Renew if
necessary.
1.
Water pump slot
3.
Fit the pump and tighten the fixings to
10
Nm.
4.
Refit the hoses to the water pump and tighten the
clips.
5.
Refill the cooling system (see page 11-5).
11.6
Sewice Manual
-
Speed Triple
