t Suspension
4 I

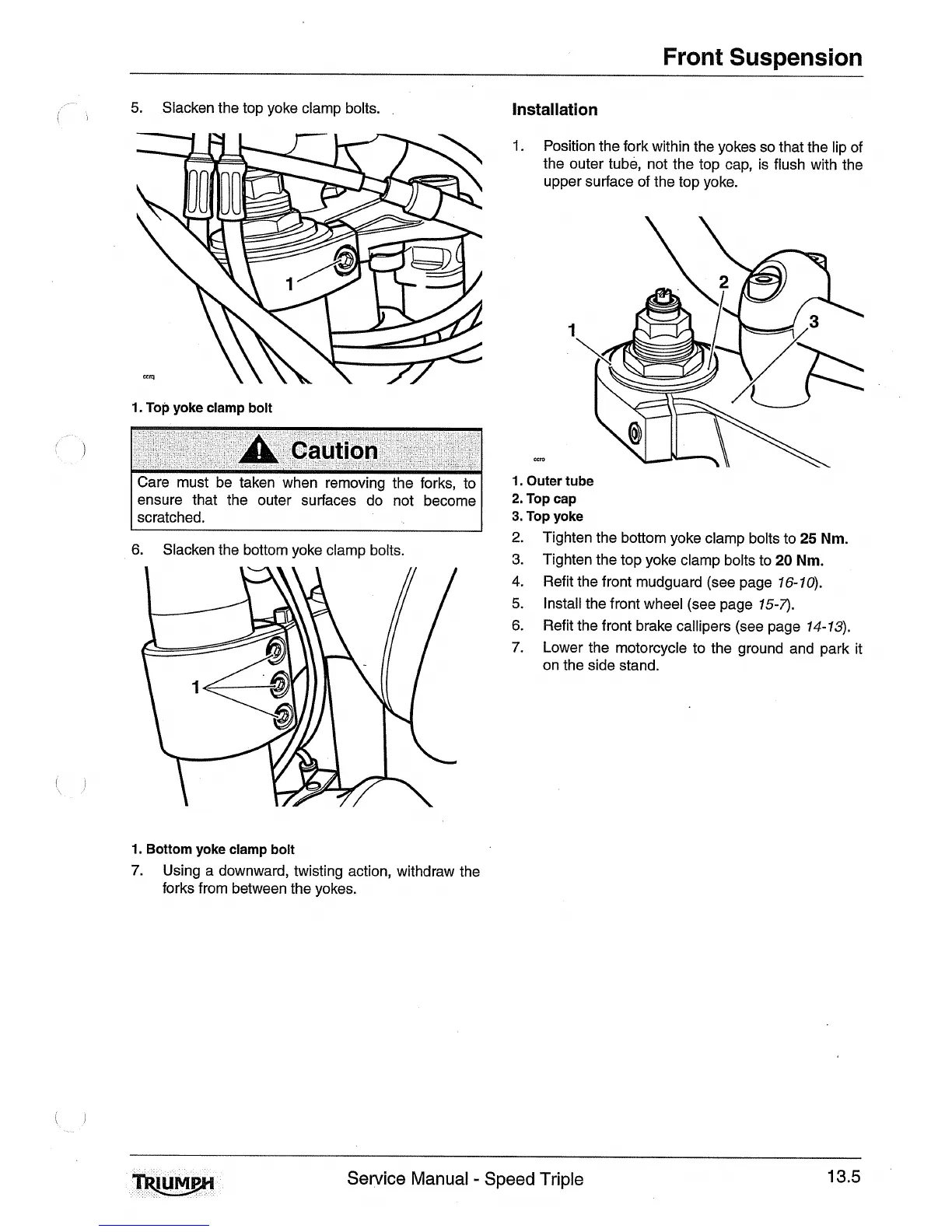

5. Slacken the top yoke clamp bolts.
Installation
1. Top yoke clamp bolt
A Caution
Care must be taken when removing the forks, to
ensure that the outer surfaces do not become
scratched.
6. Slacken the bottom yoke clamp bolts.
1. Bottom yoke clamp bolt
7.
Using a downward, twisting action, withdraw the
forks from between the yokes.
1.
Position the fork within the yokes so that the lip of
the outer tube, not the top cap, is flush with the
upper surface of the top yoke.
ccm
1. Outer tube
2. Top cap
3. Top yoke
2. Tighten the bottom yoke clamp bolts to 25 Nm.
3. Tighten the top yoke clamp bolts to 20 Nm.
4.
Refit the front mudguard (see page 16-10).
5. Install the front wheel (see page 15-7).
6.
Refit the front brake callipers (see page 14-13).
7. Lower the motorcycle to the ground and park it
on the side stand.
