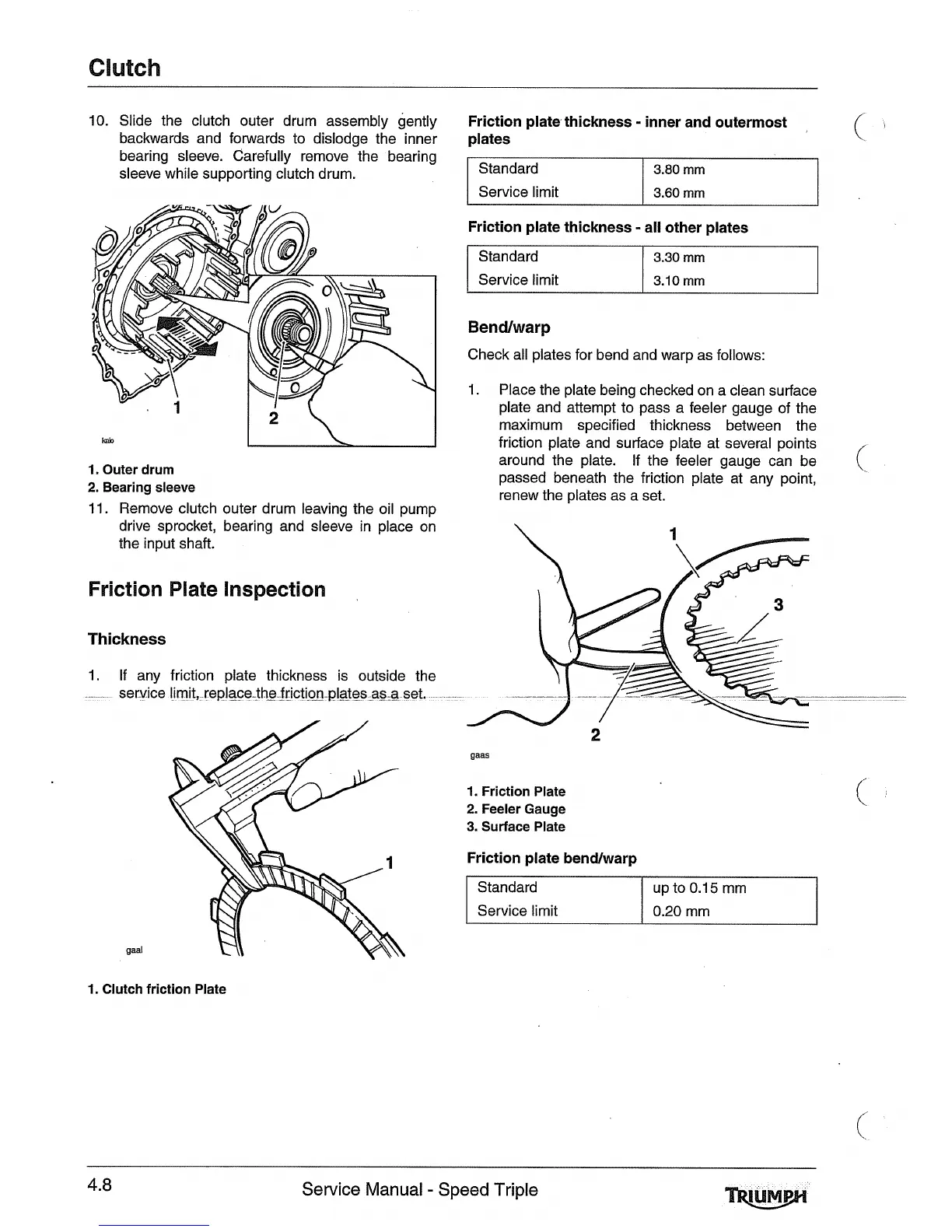

10. Slide the clutch outer drum assembly gently
backwards and forwards to dislodge the inner
bearing sleeve. Carefully remove the bearing
sleeve while supporting clutch drum.
keb
1.
Outer drum
2. Bearing sleeve
11. Remove clutch outer drum leaving the oil pump
drive sprocket, bearing and sleeve in place on
the input shaft.
Thickness
1.
If
any friction plate thickness is outside the
service limit, replace-the fktior-plates-as=a set.
1.
Clutch friction Plate
gaal
Friction plate thickness
-
inner and outermost
plates
(I
Check all plates for bend and warp as follows:
Standard
Service limit
1.
Place the plate being checked on a clean surface
plate and attempt to pass a feeler gauge of the
maximum specified thickness between the
friction plate and surface plate at several points
around the plate. If the feeler gauge can be
passed beneath the friction plate at any point,
renew the plates as a set.
3.80
mm
3.60
mm
gaas
1.
Friction Plate
2. Feeler Gauge
3.
Surface Plate
Friction plate thickness
-
all other plates
Friction plate bendtwarp
Standard
Service limit
3.30
mm
3.10 mm
I
Service limit
1
0.20 mm
I
Standard
Service Manual
-
Speed Triple
up to 0.1
5
mm
