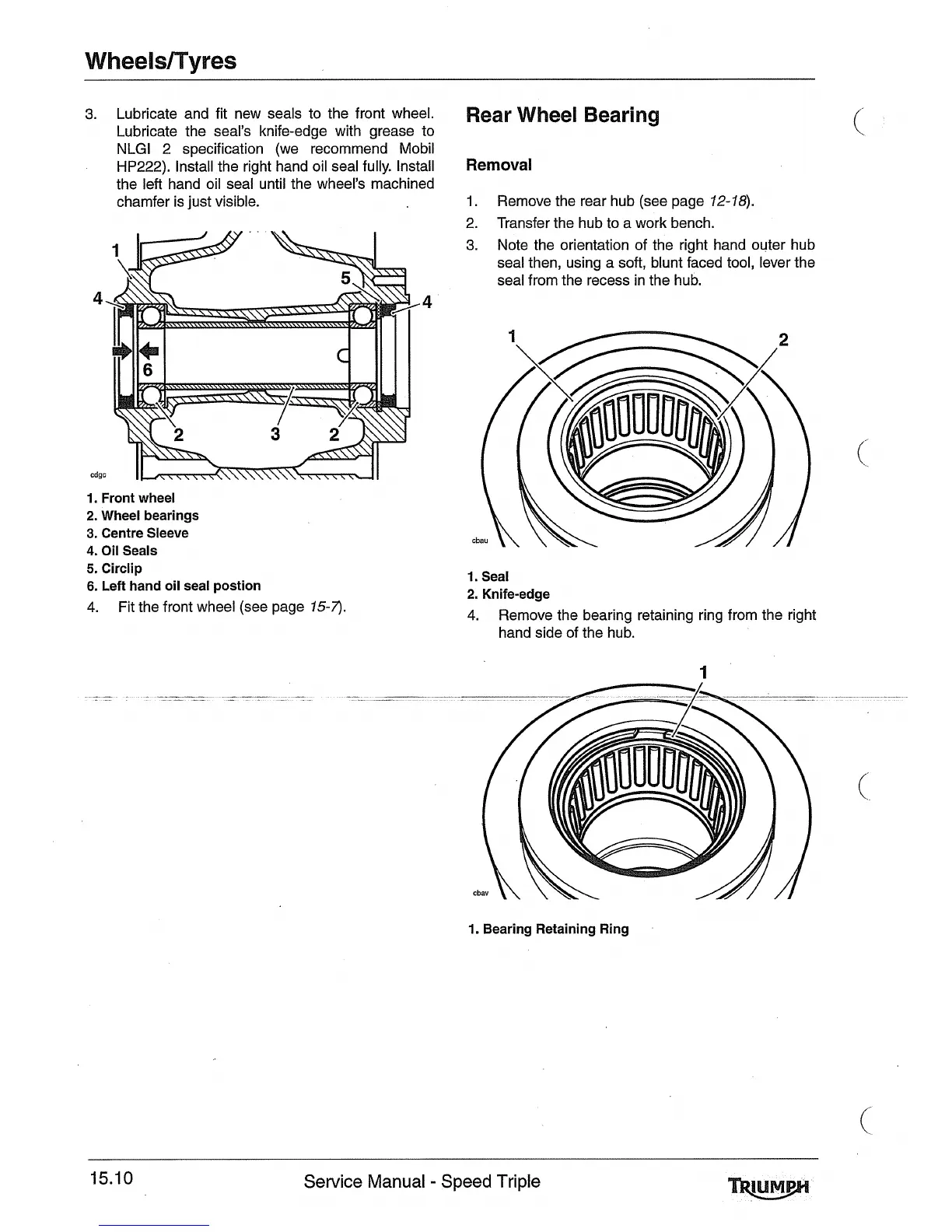

3.
Lubricate and fit new seals to the front wheel.
Lubricate the seal's knife-edge with grease to
NLGl 2 specification (we recommend Mobil
HP222). Install the right hand oil seal fully. Install
the left hand oil seal until the wheel's machined
chamfer is just visible.
1. Front wheel
2. Wheel bearings
3. Centre Sleeve
4. Oil Seals
5. Circlip
6. Left hand oil seal postion
4. Fit the front wheel (see page 15-7).
1. Seal
2. Knife-edge
4. Remove the bearing retaining ring from the right
hand side of the hub.
1
Removal
1. Remove the rear hub (see page 12-18).
2. Transfer the hub to a work bench.
3. Note the orientation of the right hand outer hub
seal then, using a soft, blunt faced tool, lever the
seal from the recess in the hub.
1. Bearing Retaining Ring
15.10
