Triumph Speed Triple Service Manual

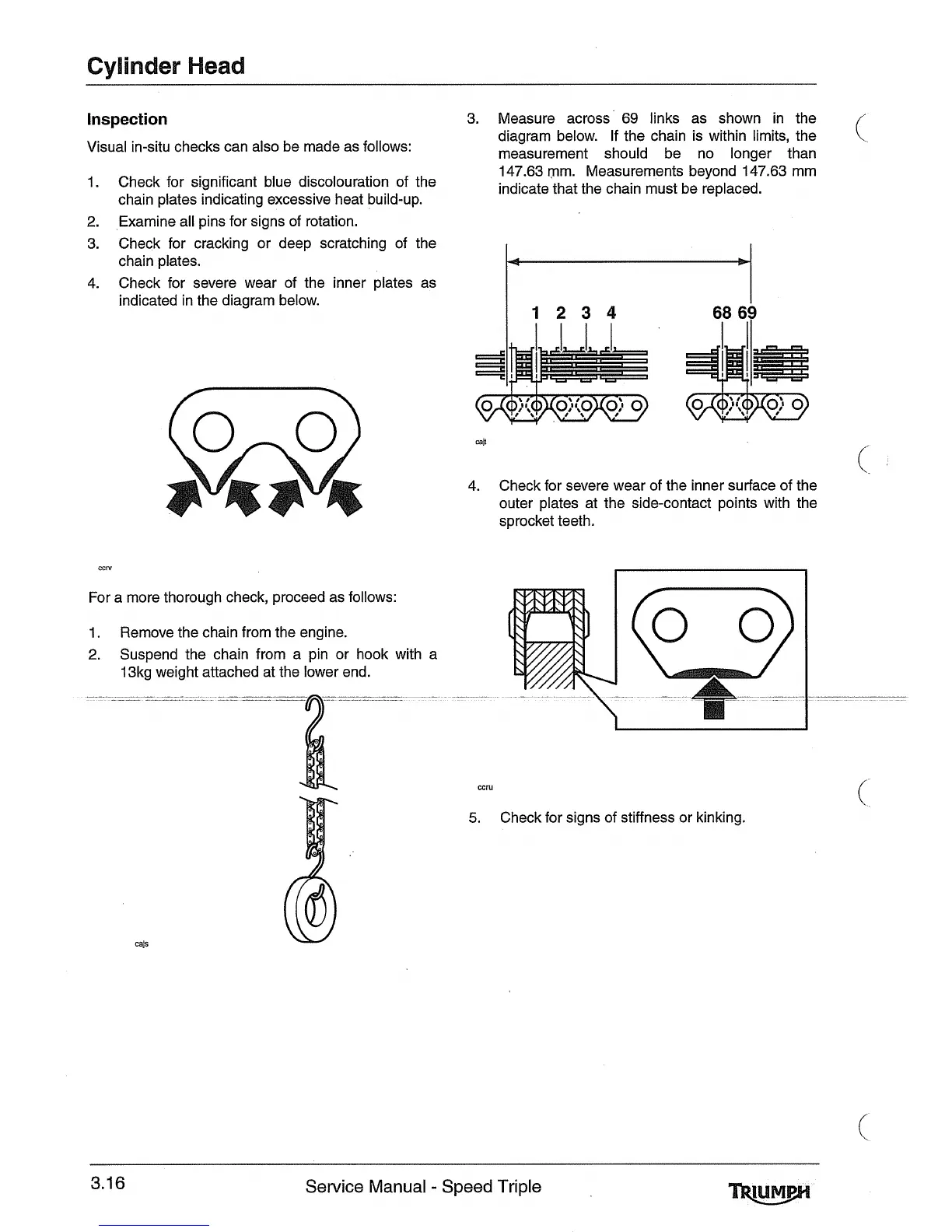

Inspection 3. Measure across 69 links as shown in the i'
Visual in-situ checks can also be made as follows:
diagram below. If the chain is within limits, the
measurement should be no longer than
147.63 mm. Measurements beyond
1 k.63 mm
Check for significant blue discolouration of the
indicate that the chain must be replaced.
chain plates indicating excessive heat build-up.
Examine all pins for signs of rotation.
Check for cracking or deep scratching of the
chain plates.
Check for severe wear of the inner plates as
indicated in the diagram below.
4.
Check for severe wear of the inner surface of the
(
outer plates at the side-contact points with the
sprocket teeth.
For a more thorough check, proceed as follows:
1.
Remove the chain from the engine.
2.
Suspend the chain from a pin or hook with a
13kg weight attached at the lower end.
CCN
5.
Check for signs of stiffness or kinking.
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
