Lubrication
i

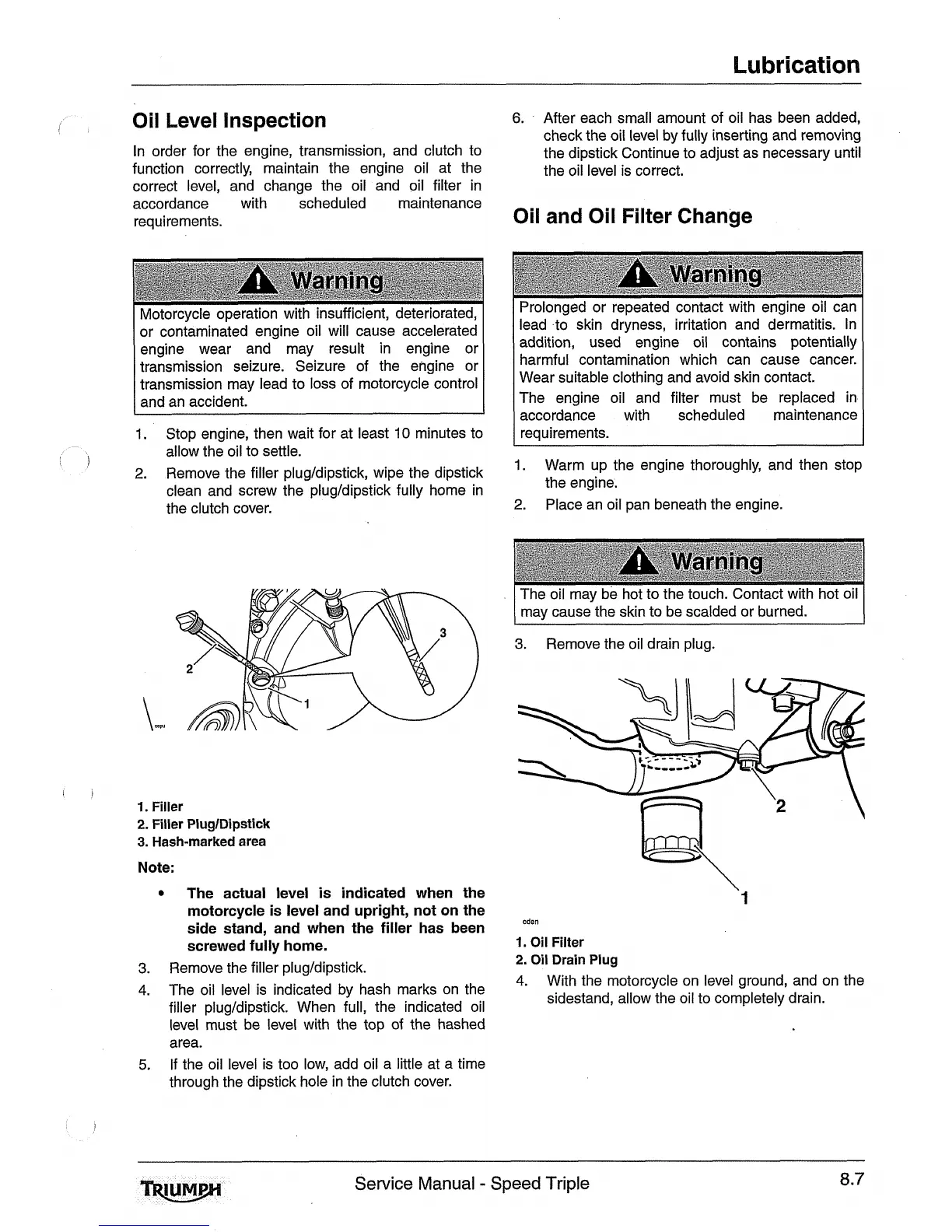

Oil Level Inspection
In order for the engine, transmission, and clutch to
function correctly, maintain the engine oil at the
correct level, and change the oil and oil filter in
accordance with scheduled maintenance
requirements.
6.
. After each small amount of oil has been added,
check the oil level by fully inserting and removing
the dipstick Continue to adjust as necessary until
the oil level is correct.
Oil and Oil Filter Change
Motorcycle operation with insufficient, deteriorated,
I
or contaminated engine oil will cause accelerated
engine wear and may result in engine or
transmission seizure. Seizure of the engine or
transmission may lead to loss of motorcycle control
and an accident.
I.
Stop engine, then wait for at least
10
minutes to
allow the oil to settle.
2.
Remove the filler plugldipstick, wipe the dipstick
clean and screw the plugldipstick fully home in
the clutch cover.
'/
1.
Filler
2.
Filler PluglDipstick
3.
Hash-marked area
Note:
The actual level is indicated when the
motorcycle is level and upright, not on the
side stand, and when the filler has been
screwed fully home.
3.
Remove the filler plugldipstick.
4.
The oil level is indicated by hash marks on the
filler plugldipstick. When full, the indicated oil
level must be level with the top of the hashed
area.
5.
If the oil level is too low, add oil a little at a time
through the dipstick hole in the clutch cover.
Prolonged or repeated contact with engine oil can
lead to skin dryness, irritation and dermatitis. In
addition, used engine oil contains potentially
harmful contamination which can cause cancer.
Wear suitable clothing and avoid skin contact.
The engine oil and filter must be replaced in
accordance with scheduled maintenance
requirements.
1.
Warm up the engine thoroughly, and then stop
the engine.
2.
Place an oil pan beneath the engine.
The oil may
be
hot to the touch. Contact with hot oil
may cause the skin to be scalded or burned.
3.
Remove the oil drain plug.
cdsn
1.
Oil Filter
2.
Oil Drain Plug
4.
With the motorcycle on level ground, and on the
sidestand, allow the oil to completely drain.
