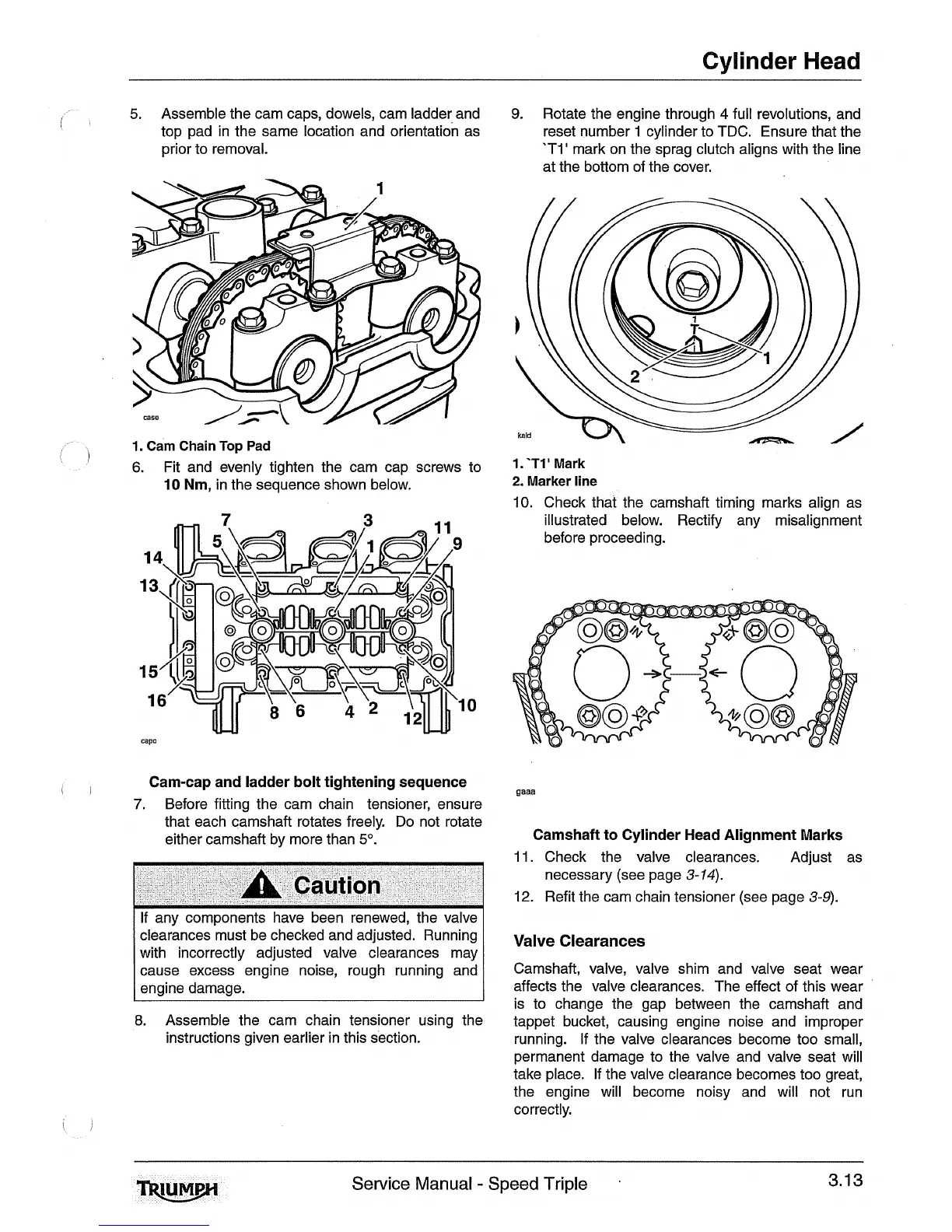

inder
Head
/
5.
Assemble the cam caps, dowels, cam ladder and
top pad in the same location and orientation as
prior to removal.
9.
Rotate the engine through
4
full revolutions, and
reset number 1 cylinder to TDC. Ensure that the
'TI' mark on the sprag clutch aligns with the line
at the bottom of the cover.
i
1.
Cam Chain
Top
Pad
6.
Fit and evenly tighten the cam cap screws to
10
Nm,
in the sequence shown below.
capc
1
I
Cam-cap and ladder bolt tightening sequence
7.
Before fitting the cam chain tensioner, ensure
that each camshaft rotates freely. Do not rotate
either camshaft by more than
5".
A
Caution
If any components have been renewed, the valve
clearances must be checked and adjusted. Running
with incorrectly adjusted valve clearances may
cause excess engine noise, rough running and
engine damage.
8.
Assemble the cam chain tensioner using the
instructions given earlier in this section.
1. 'Ti'
Mark
2. Marker line
10. Check that the camshaft timing marks align as
illustrated below. Rectify any misalignment
before proceeding.
gaaa
Camshaft to Cylinder Head Alignment Marks
11. Check the valve clearances. Adjust as
necessary (see page
3-14).
12.
Refit the cam chain tensioner (see page
3-9).
Valve Clearances
Camshaft, valve, valve shim and valve seat wear
affects the valve clearances. The effect of this wear
is to change the gap between the camshaft and
tappet bucket, causing engine noise and improper
running. If the valve clearances become too small,
permanent damage to the valve and valve seat will
take place. If the valve clearance becomes too great,
the engine will become noisy and will not run
correctly.
Service Manual
-
Speed Triple
.
3.13
