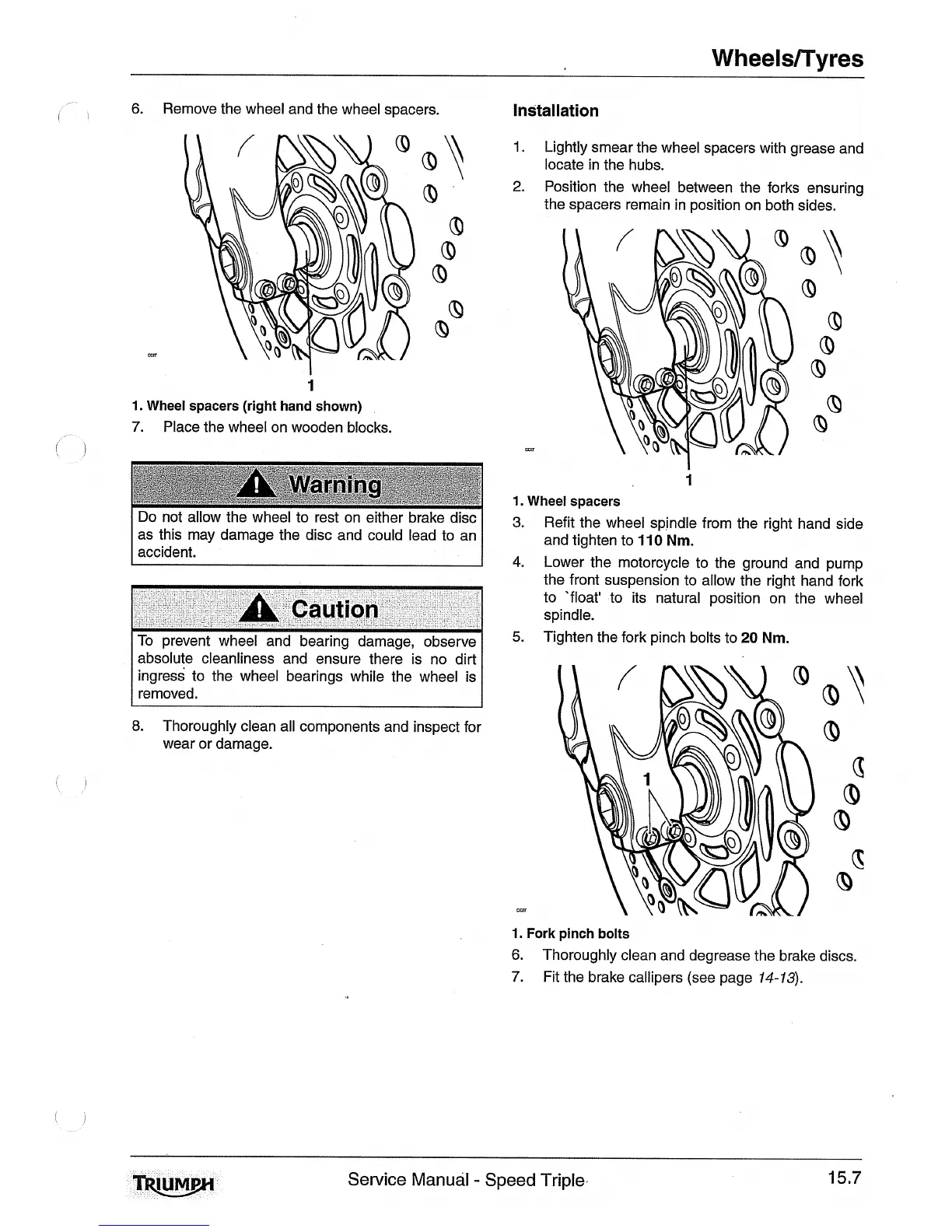

Triumph Speed Triple Service Manual

I
6. Remove the wheel and the wheel spacers. Installation
1
1. Wheel spacers (right hand shown)
7.
Place the wheel on wooden blocks.
1.
Lightly smear the wheel spacers with grease and
locate in the hubs.
2.
Position the wheel between the forks ensuring
the spacers remain in position on both sides.
I Do not allow the wheel to rest on either brake disc-/
as this may damage the disc and could lead to an
accident.
A Caution
To prevent wheel and bearing damage, observe
absolute cleanliness and ensure there is no dirt
ingress to the wheel bearings while the wheel is
removed.
I
1
1. Wheel spacers
3.
Refit the wheel spindle from the right hand side
and tighten to
110 Nm.
8.
Thoroughly clean all components and inspect for
wear or damage.
4.
Lower the motorcycle to the ground and pump
the front suspension to allow the right hand fork
to 'float' to its natural position on the wheel
spindle.
5. Tighten the fork pinch bolts to 20 Nm.
1. Fork pinch bolts
6.
Thoroughly clean and degrease the brake discs.
7.
Fit the brake callipers (see page 14-13).
Sewice Manual - Speed Triple.
15.7

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
