Triumph Speed Triple Service Manual

Frame and Bodywork
I Installation

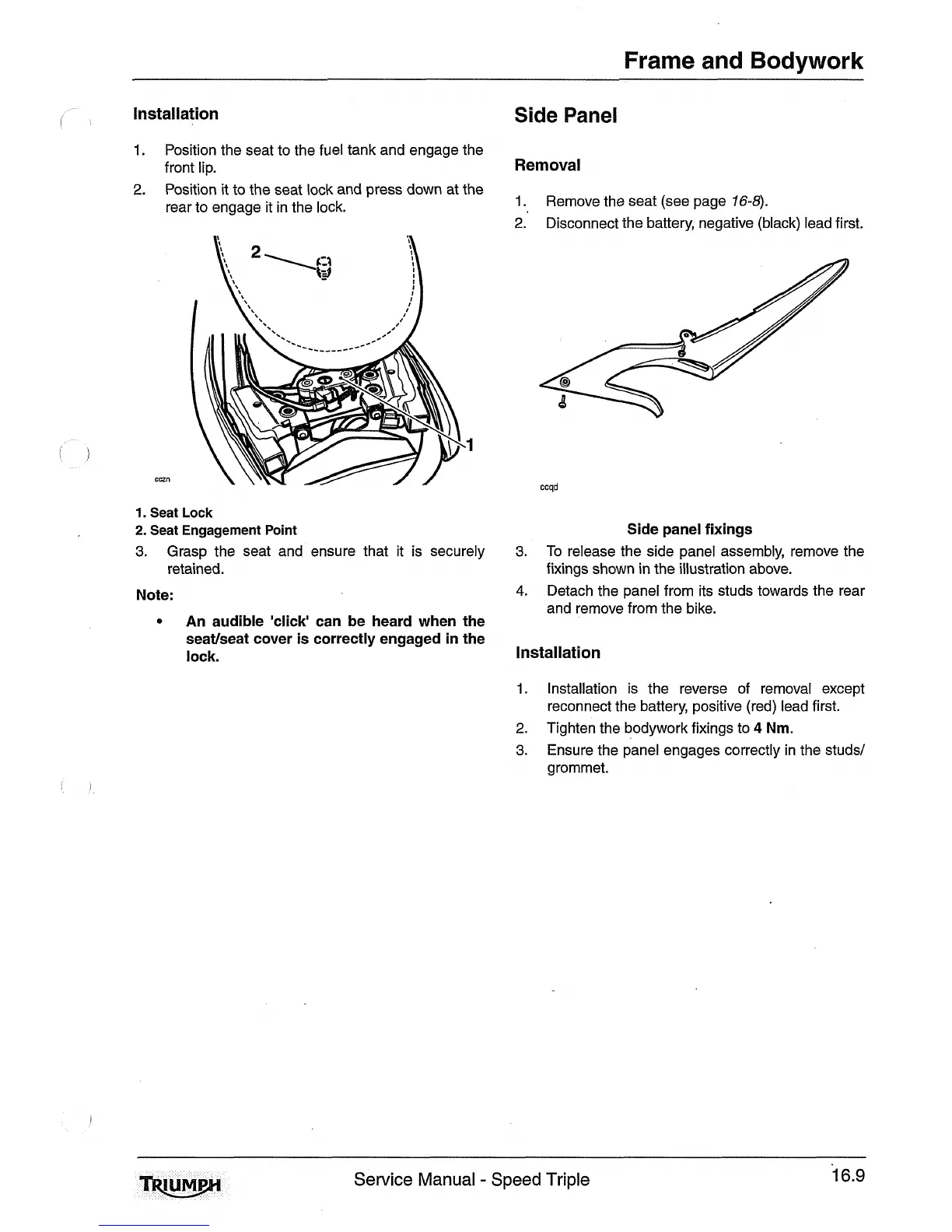

1. Position the seat to the fuel tank and engage the
front lip.
2. Position it to the seat lock and press down at the
rear to engage it in the lock.
1. Seat Lock
2. Seat Engagement Point
3. Grasp the seat and ensure that it is securely
retained.
Note:
0
An audible 'click' can be heard when the
seatlseat cover is correctly engaged in the
lock.
Side Panel
Removal
1.
Remove the seat (see page 16-8).
2. Disconnect the battery, negative (black) lead first.
ccad
Side panel fixings
3. To release the side panel assembly, remove the
fixings shown in the illustration above.
4. Detach the panel from its studs towards the rear
and remove from the bike.
Installation
1. Installation is the reverse of removal except
reconnect the battery, positive (red) lead first.
2. Tighten the bodywork fixings to 4 Nm.
3. Ensure the panel engages correctly in the studs1
grommet.
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
