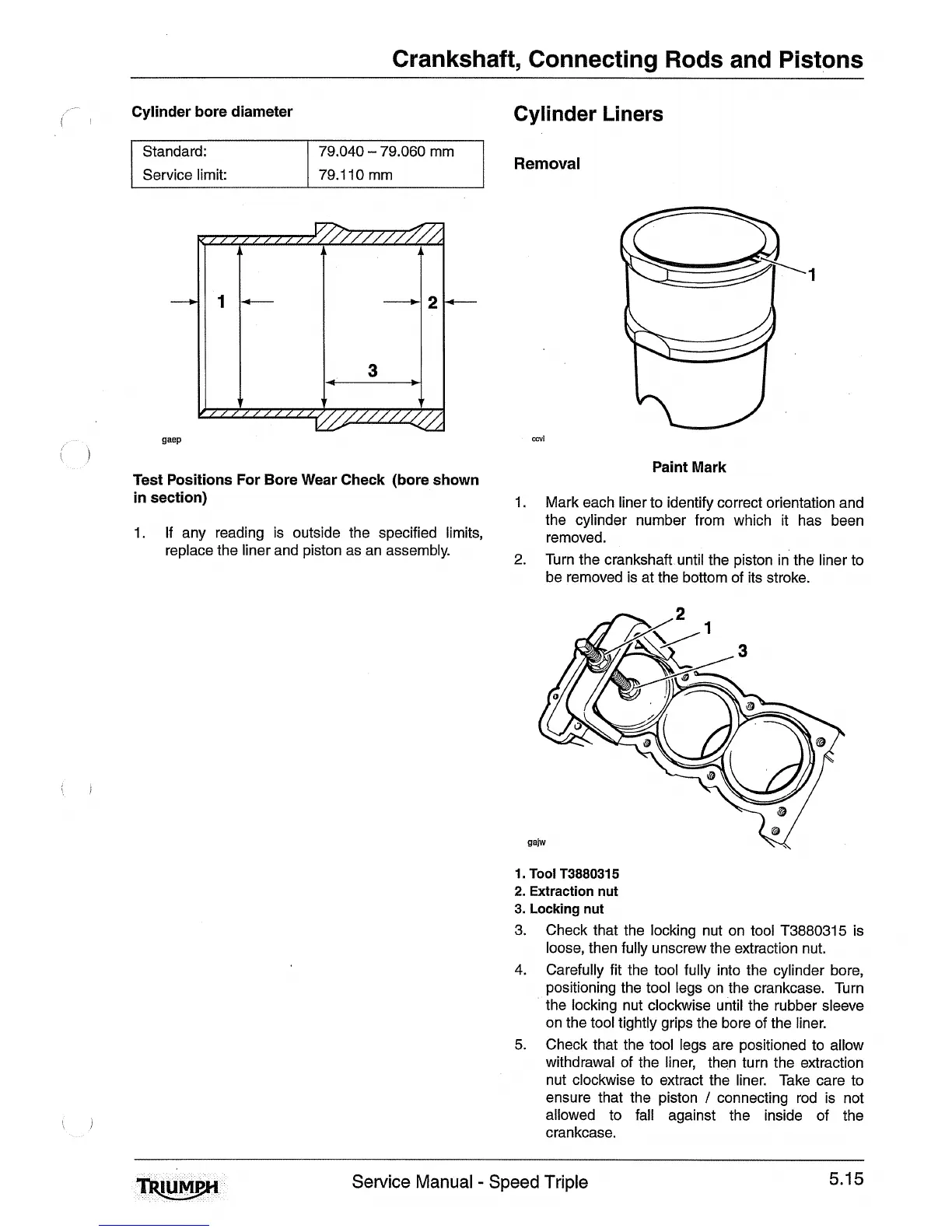

Crankshaft, Connecting Rods and Pistons
i
Cylinder bore diameter
Cylinder Liners
I
Standard:
1
79.040
-
79.060 mm
I
I
Service limit:
1
79.110mm
Removal
Test Positions For Bore Wear Check (bore shown
in section)
1.
If any reading is outside the specified limits,
replace the liner and piston as an assembly.
Paint Mark
1. Mark each liner to identify correct orientation and
the cylinder number from which it has been
removed.
2.
Turn the crankshaft until the piston in the liner to
be removed is at the bottom of its stroke.
1. Tool T3880315
2. Extraction nut
3. Locking nut
3.
Check that the locking nut on tool T3880315 is
loose, then fully unscrew the extraction nut.
4.
Carefully fit the tool fully into the cylinder bore,
positioning the tool legs on the crankcase. Turn
the locking nut clockwise until the rubber sleeve
on the tool tightly grips the bore of the liner.
5.
Check that the tool legs are positioned to allow
withdrawal of the liner, then turn the extraction
nut clockwise to extract the liner. Take care to
ensure that the piston
/
connecting rod is not
allowed to fall against the inside of the
crankcase.
mp4Jpl
Service Manual
-
Speed Triple
5.15
