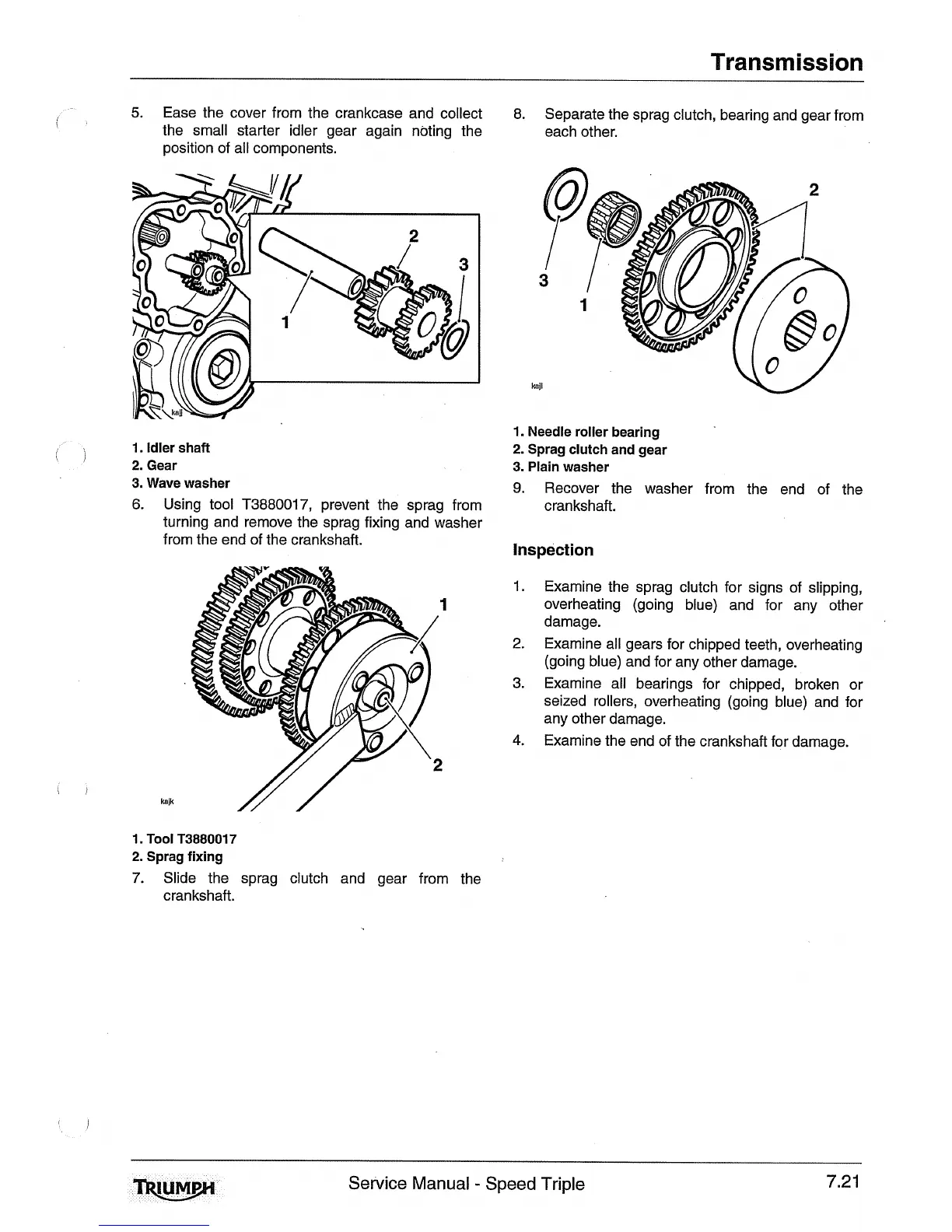

Triumph Speed Triple Service Manual

Transmission
i
5.
Ease the cover from the crankcase and collect
the small starter idler gear again noting the
position of all components.
I i
1. idler shaft
2. Gear
3. Wave washer
6.
Using tool 13880017, prevent the sprag from
turning and remove the sprag fixing and washer
from the end of the crankshaft.
1. Tool T3880017
2. Sprag fixing
7. Slide the sprag clutch and gear from the
crankshaft.
8.
Separate the sprag clutch, bearing and gear from
each other.
1. Needle roller bearing
2. Sprag clutch and gear
3. Plain washer
9. Recover the washer from the end of the
crankshaft.
Inspection
1.
Examine the sprag clutch for signs of slipping,
overheating (going blue) and for any other
damage.
2.
Examine all gears for chipped teeth, overheating
(going blue) and for any other damage.
3.
Examine all bearings for chipped, broken or
seized rollers, overheating (going blue) and for
any other damage.
4.
Examine the end of the crankshaft for damage.
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
