Mobile Generator
How to Connect Loads (480V)

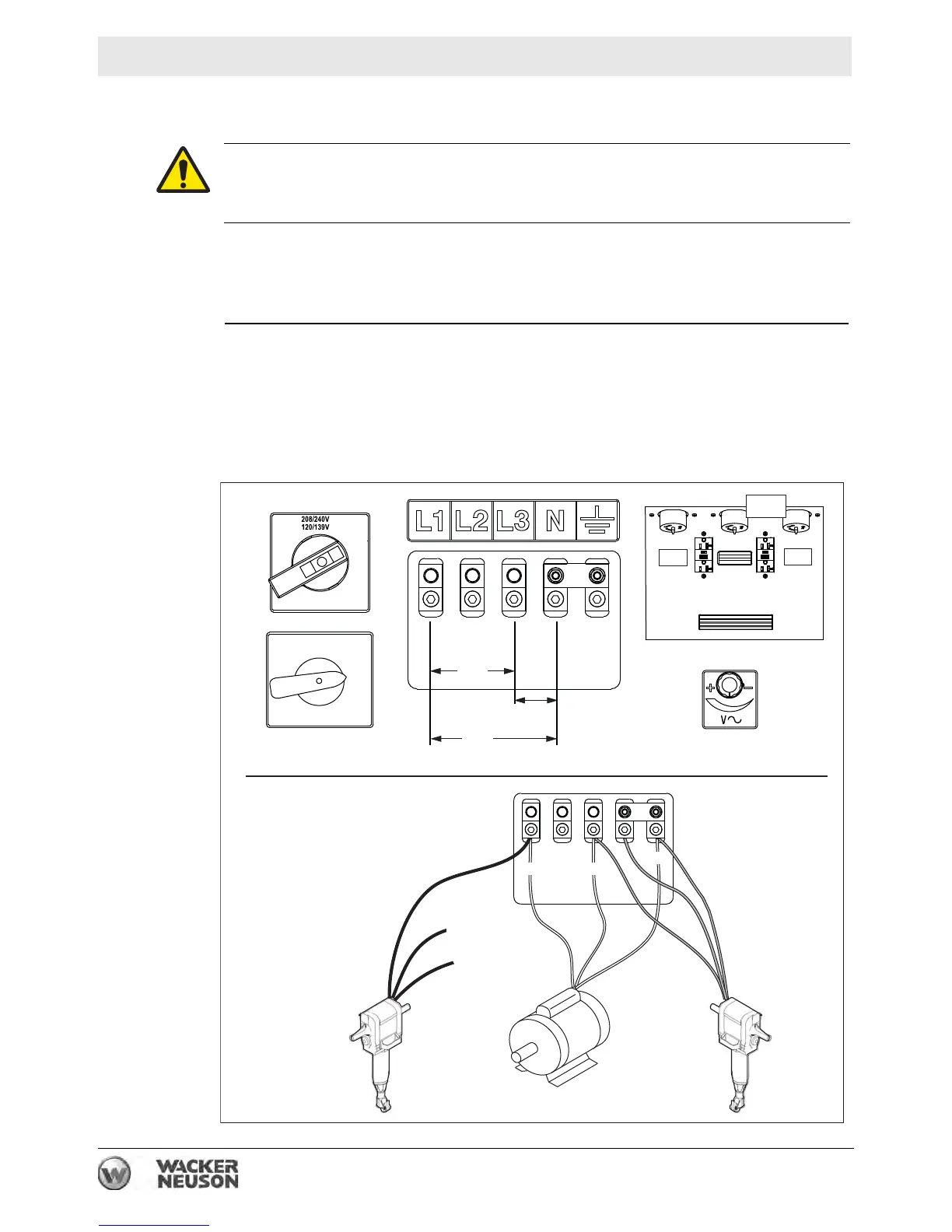

11.5 Connecting 240V and 120V Single-Phase Loads
Background Single-phase loads may be connected at the lugs by connecting the load “line to
line” or by connecting the load “line to neutral”. Line-to-line connections use two
“hots” and ground; line-to-neutral connections use one “hot”, neutral, and ground.
Procedure 1. Stop the engine and turn the main circuit breaker off.
2. Turn the voltage selector switch to the 120/240V position.
3. Open the lug door and connect the wires from the load(s) as shown.
4. Close the lug door and start the machine.
5. Fine-tune the voltage as necessary using the voltage adjustment rheostat
.
WARNING
Electric shock hazard. High voltage can cause serious injury or death.
► Connections must be made by a qualified electrician.
wc gr011440
240V 1Ø
HOT HOT
GN
120V
120V
240V
120V 1Ø120V 1Ø
TO "N" LUG
TO GND LUG
When connecting multiple 120V loads:
Use L1 as "hot" for first load.
Use L3 as "hot" for second load.
Balance the load
346/600V
208/240V 3 Ø
120/139V 1 Ø
1Ø
120/240V
3Ø
277/480V
3Ø
120V
120V
240 L-L
120 L-N
277/480V
120/240V
1Ø3Ø
3Ø
1Ø
