Wacker Neuson G 25 User Manual

wc_tx003581gb_FM10.fm
122
Mobile Generator
How to Connect Loads (480V)

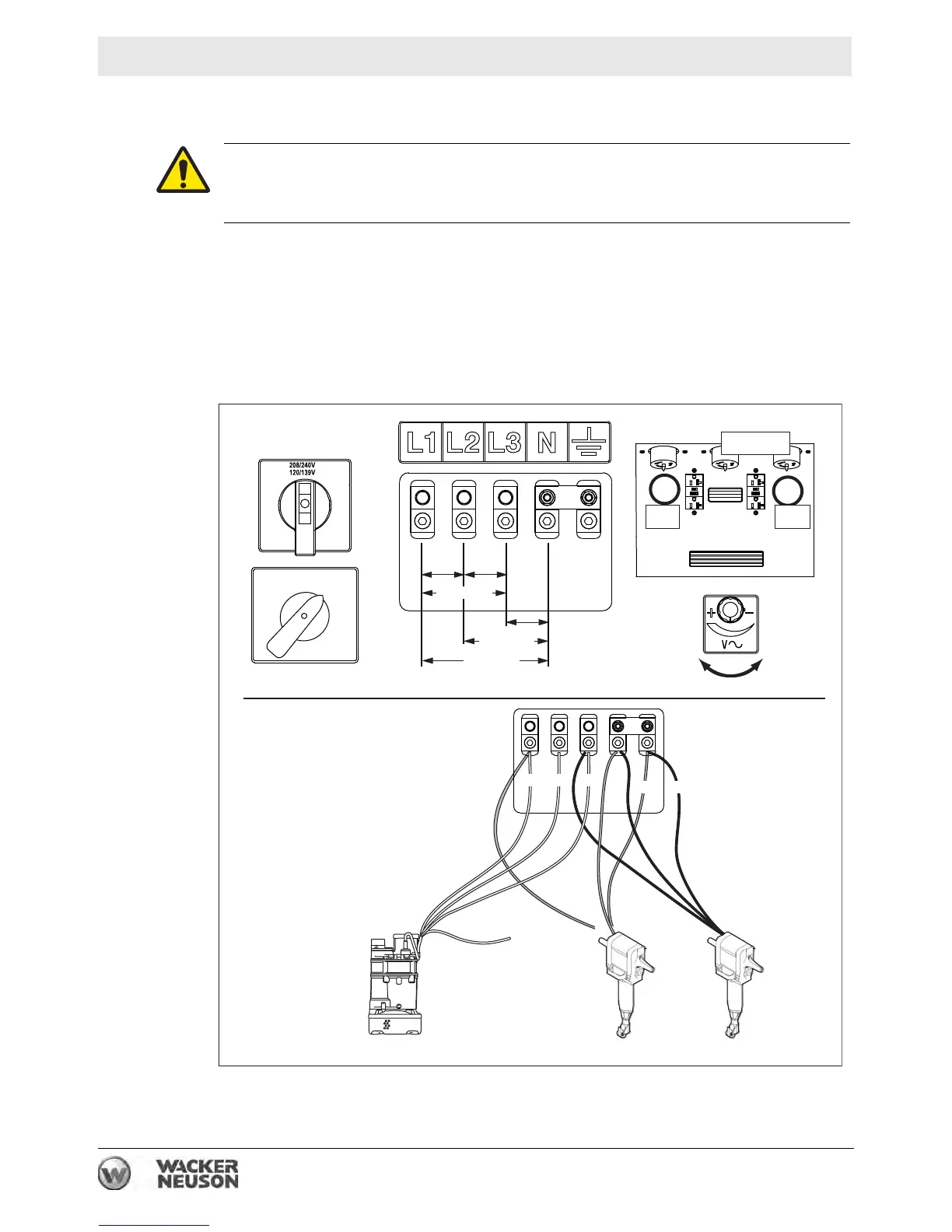

11.7 Connecting a 220–240V 3Ø Load and Multiple 127–133V 1Ø Loads
1. Stop the engine and turn the main circuit breaker off.
2. Turn the voltage selector switch to the 208/240 position.
3. Open the lug door and connect the wires from the load(s) as shown.
4. Close the lug door and start the machine.
5. Fine-tune the voltage as necessary using the voltage adjustment rheostat.
WARNING
Electric shock hazard. High voltage can cause serious injury or death.
► Connections must be made by a qualified electrician.
!
!
When connecting multiple 120V loads:
Use L1 as "hot" for first load.
Use L3 as "hot" for second load.
Use L2 as "hot" for third load.
Balance the load
Fine-tune the voltage so that
both the 3-phase load and
the single-phase loads
operate properly.
Fine-tune the voltage
127–
139V
127–
139V
TO
GROUND
LUG
wc_gr011442
220–240 L-L
127–139 L-N
220–240V 3Ø
220–
240V
220–
240V
127–139V
127–139V
127–139V
220–240V
220–240V 3Ø
127–139V 1Ø 127–133V 1Ø
600V
208/240V 3 Ø
120/139V 1 Ø
1Ø
120/240V
3Ø
277/480V
3Ø
HOT HOT HOT
GN GN
WH
277/480V
120/240V
3Ø
1Ø
1Ø
3Ø
